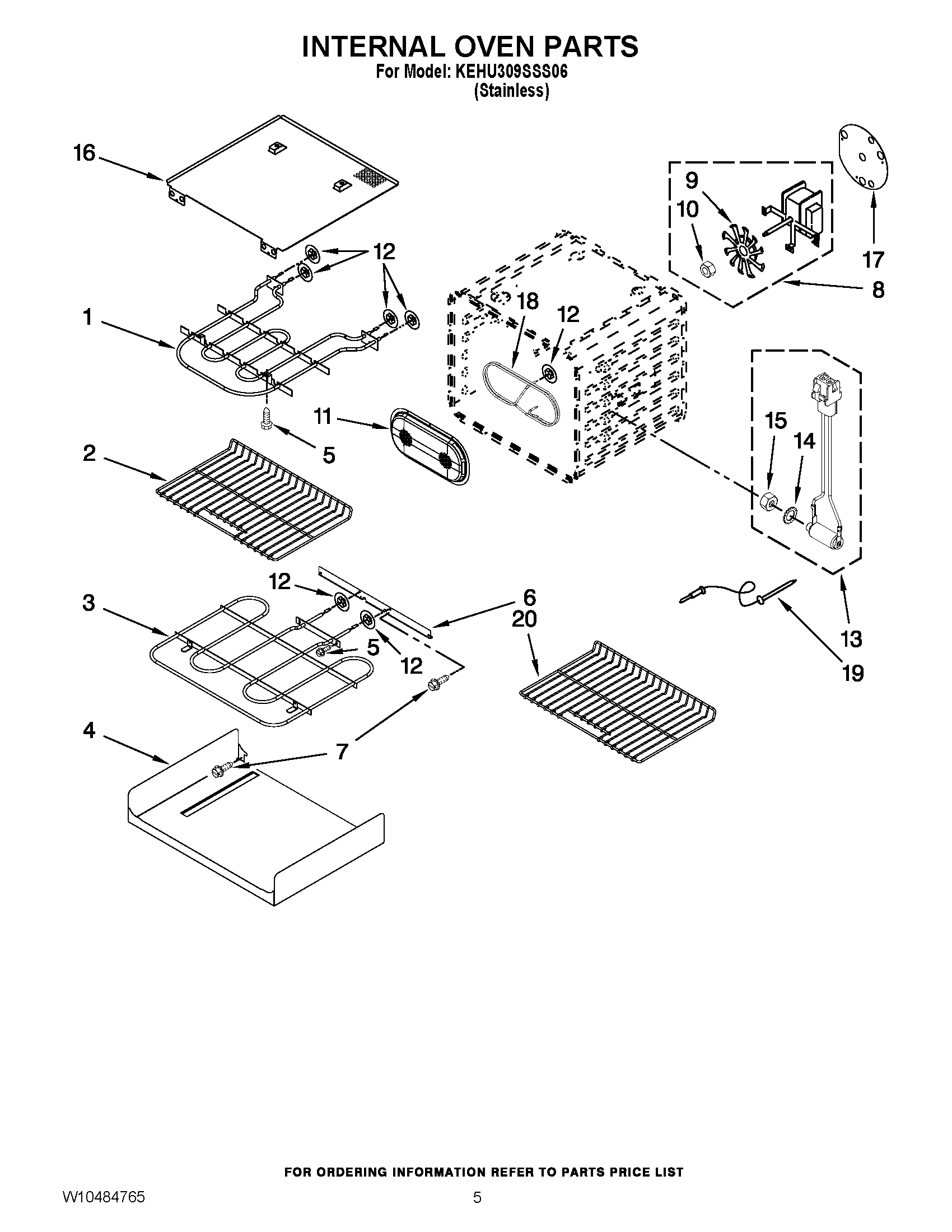

KEHU309SSS06 04 – INTERNAL OVEN PARTS

KEHU309SSS06 04 – INTERNAL OVEN PARTS

Written by

in

KEHU309SSS06 04 – INTERNAL OVEN PARTS

Products

PositionProduct
1ELMNT-BROL
2W11550107 Whirlpool Oven Rack
3ELMNT-BAKE
4Tray, Hidden Bake
64450039 Whirlpool Oven Access Cover
7SCREW
8W10794022 Whirlpool Oven Cooktop Fan Motor
9W10758272 Whirlpool Convection Fan
10WPW10116349 Whirlpool Nut
11Cover, Fan
12WP3400968 Whirlpool Nut
13W10150011 Whirlpool Probe Jack
14WP9755547 Whirlpool Lockwasher
15WP9755546 Whirlpool Locknut
16WP8304602 Whirlpool Heat Shield Assembly
17W10339476 Whirlpool Bracket Mounting
18W10116434 Whirlpool Element
19WP9755542 Whirlpool Oven Meat Probe
20W11186364 Whirlpool Oven Rack
