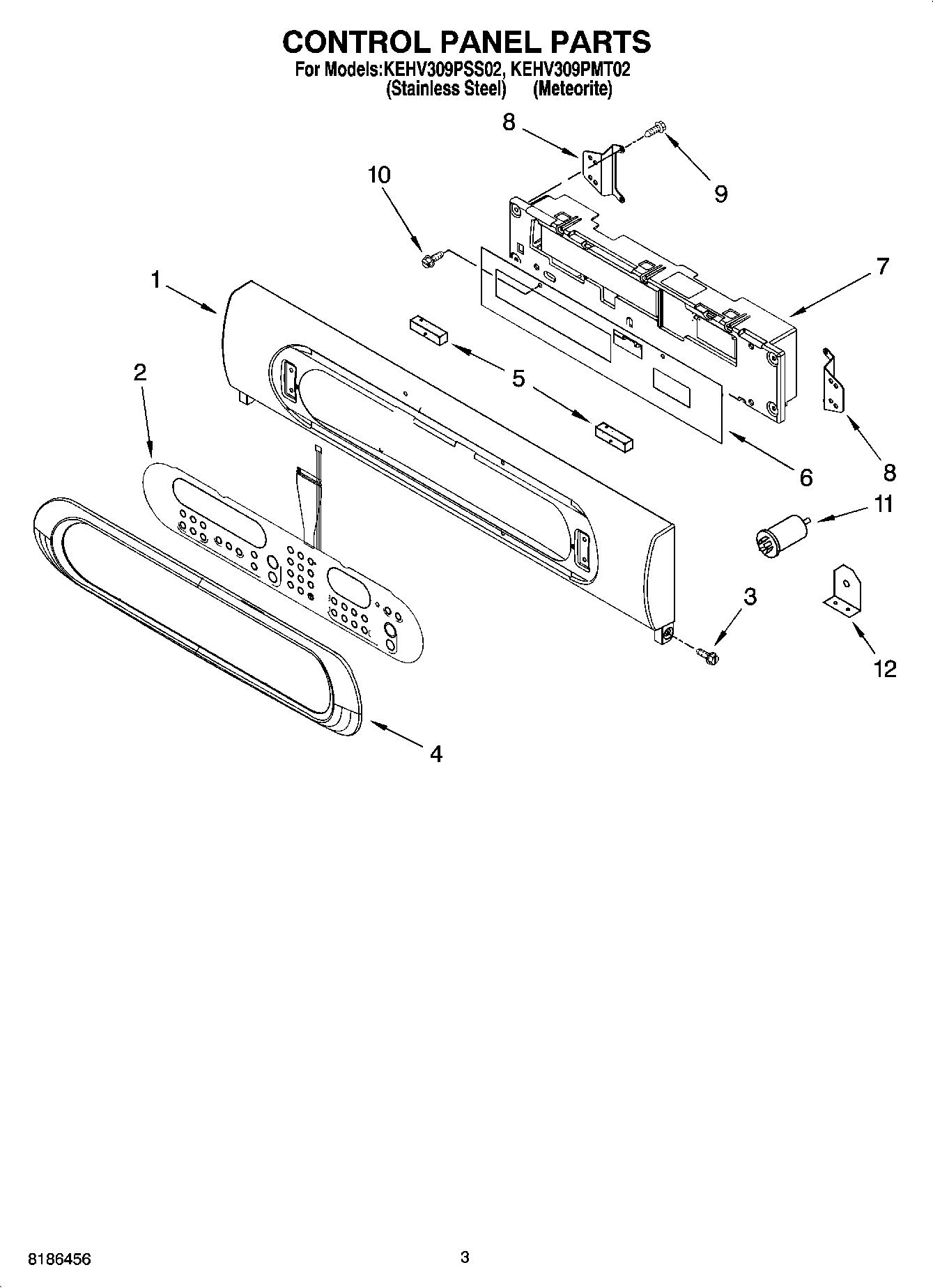

KEHV309PMT02 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Panel, Control (Meteorite)
1	Panel, Control (Stainless Steel)
2	Switch, Membrane (Meteorite)
2	Switch, Membrane (Stainless Steel)
3	WP3400832 Whirlpool Screw
4	Panel, Control (Ellipse)
5	Spacer, Foam
6	Backer, Control
7	Assy, Control
8	Bracket
9	WP4449154 Whirlpool Screw
10	WP3400892 Whirlpool Dishwasher Screw
11	Filter
12	Bracket, Filter
