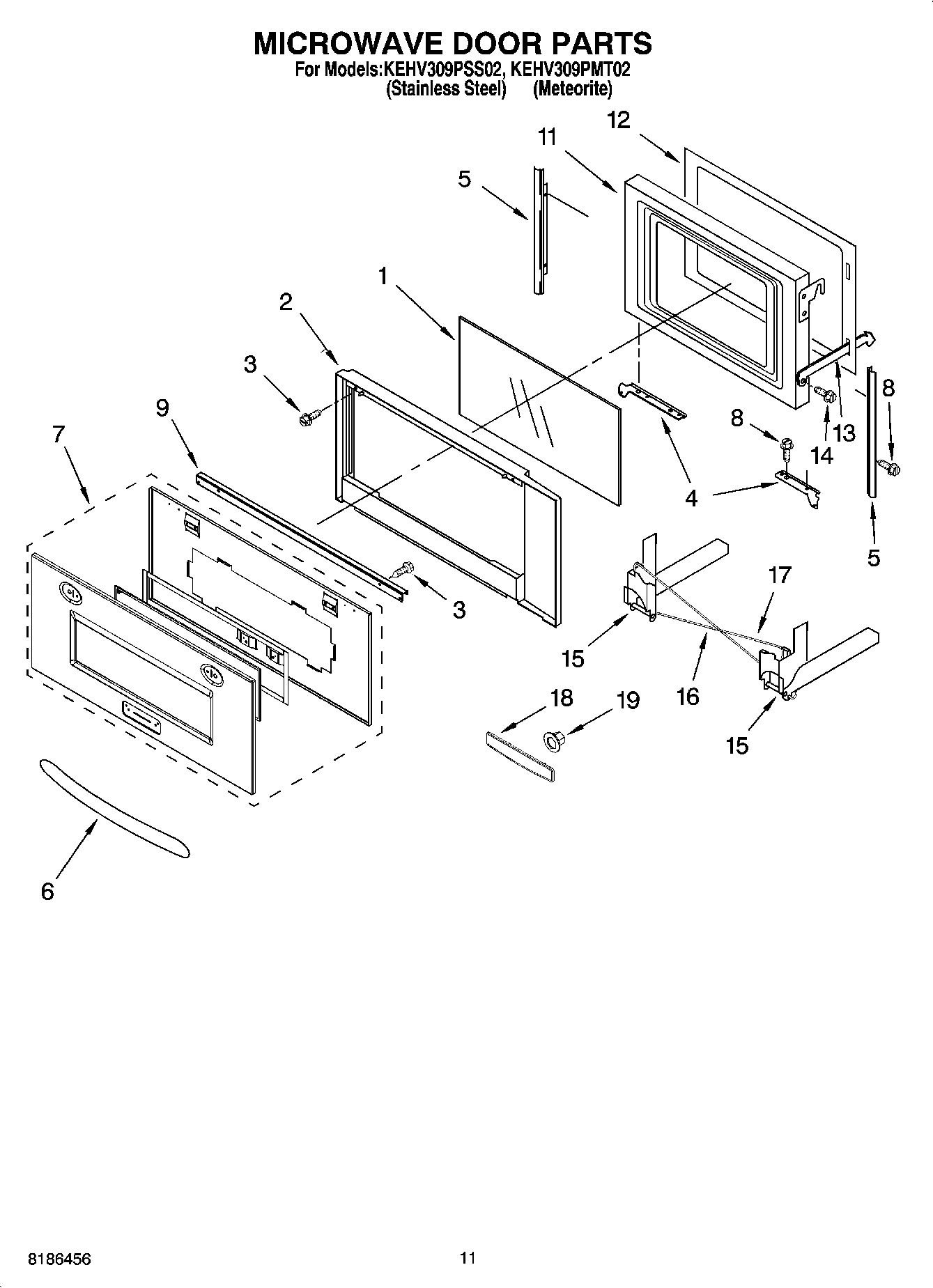

KEHV309PMT02 09 – MICROWAVE DOOR PARTS, OPTIONAL PARTS

KEHV309PMT02 09 – MICROWAVE DOOR PARTS, OPTIONAL PARTS

Written by

in

KEHV309PMT02 09 – MICROWAVE DOOR PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI85147A5
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
WP261869 Whirlpool Microwave Paint
242831 Whirlpool Oven Wire
Wire (14 Ga. 200 c Brown)
4450950 Whirlpool Oven Conduit
WPL ARI85146A9
WPL ARI85145A7
WPL ARI85144A5
8301909 Whirlpool Oven Wire Harness
WPL 8301923
8303838 Whirlpool Oven Wire Harness
WPL ARI85148A6
261900 Whirlpool Microwave Spray
WPL 591014
Spacer, Harness
285006 Whirlpool Spray
Ground (M/W)
WP4448950 Whirlpool Screw
814381 Whirlpool Pin
WP482338 Whirlpool Refrigerator Adhesive
Wire, 25` Roll (Red 14 Ga.)
72032 Whirlpool Touch Up Paint Black
4450800 Whirlpool Oven Screw
WPW10339879 Whirlpool Wire Tie
4452400 Whirlpool Microwave Wire Harness
WP4449809 Whirlpool Screw
16515 Whirlpool Clip
Wire, 25` Roll (Black 14 Ga.)
350930 Whirlpool White Spray Paint
72017 Whirlpool Appliance Touch-Up Paint White
Cleaner (Stainless Steel)
1Glass, Middle
2WP4450038 Whirlpool Screw
2WP8303556 Whirlpool Microwave Door Frame
3screw
4Bracket, Mounting (Right Side)
4Bracket, Mounting (Left Side)
5Filler, Side (Left Side)
5Filler, Side
6Handle, Door (Stainless Steel)
7Glass, Outer (Meteorite)
7Glass, Outer (Stainless Steel)
9Bracket, Handle
11Plate, Door
12Frame, Inner
13Strap, Door
14Screw
15WP4375324 Whirlpool Microwave Door Hinge
15WP4375323 Whirlpool Microwave Door Hinge
16WP4451009 Whirlpool Microwave Spring
16WP4452396 Whirlpool Microwave Spring
17WP4452395 Whirlpool Spring Assembly
18Nameplate
19Palnut
