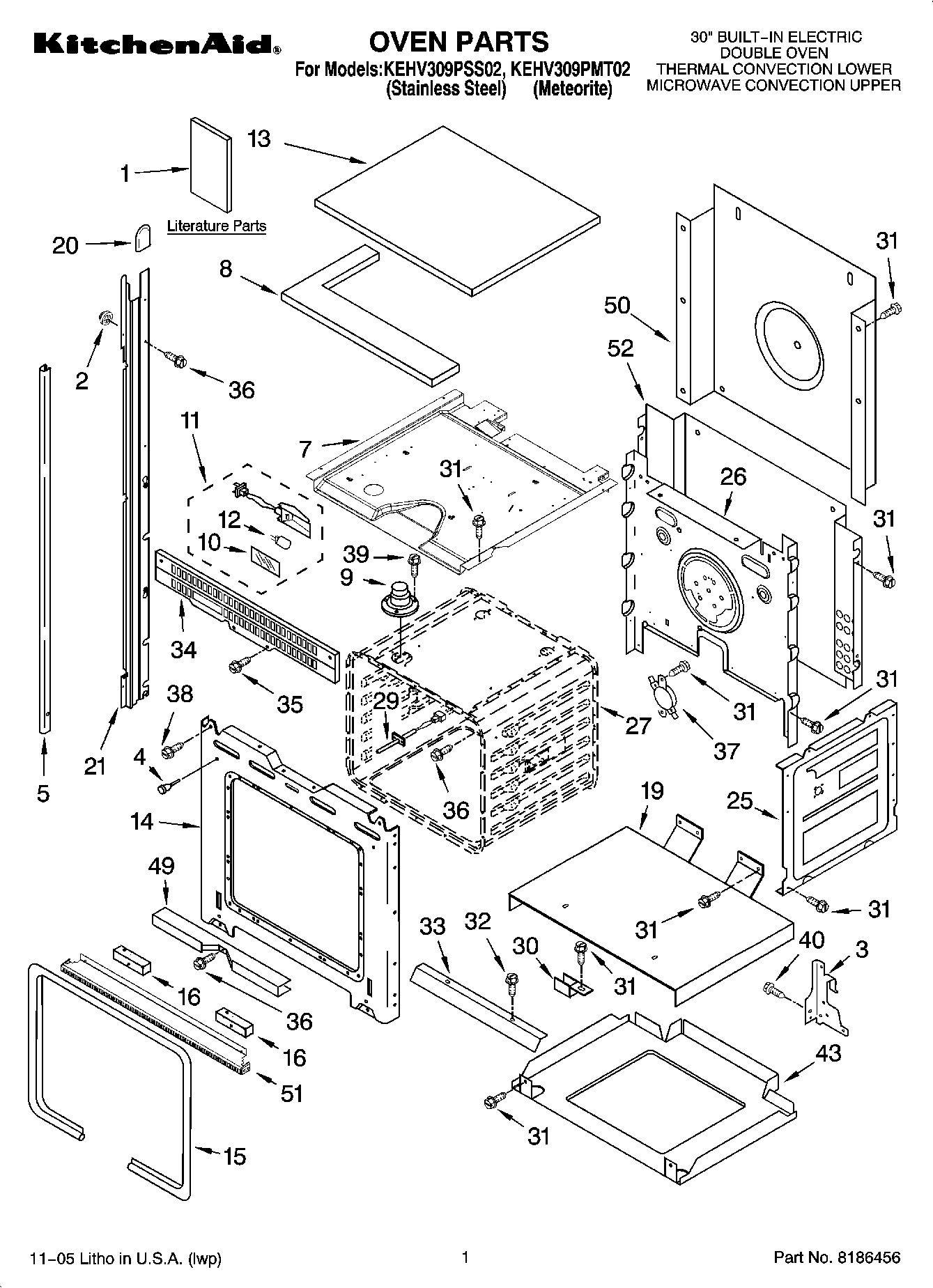

KEHV309PSS02 01 – OVEN PARTS

KEHV309PSS02 01 – OVEN PARTS

Written by

in

KEHV309PSS02 01 – OVEN PARTS

Products

PositionProduct
1Safe Cooking Tips (French)
1Use & Care Guide (Oven)
1Use & Care Guide (Microwave)
1Tech Sheet (Oven)
1Installation Instructions
1Cooking Guide (Lable)
1Chart, High Speed Cooking
1Easy Set Guide
1Safe Cooking Tips
2WP4448444 Whirlpool Grommet
3WP4455606 Whirlpool Right Hand Hinge
3WP4455605 Whirlpool Left Hand Hinge
44448520 Whirlpool Oven Bumper
5Trim, Side Left Hand (Stainless Steel)
5Trim, Side Right Hand (Meteorite)
5Trim, Side Left Hand (Meteorite)
5Trim, Side Right Hand (Stainless Steel)
7Top Chassis
8WPL 4452492
9W10861715 Whirlpool Vent Tube
10Lens, Light
11WP4448972 Whirlpool Oven Light
12WP4452164 Whirlpool 12V 5W Halogen Light Bulb
13WPL 4452491
14Frame, Front
15W11675844 Whirlpool Oven Gasket
16Spacer, Foam
19Support, Insulation
20Cap, Spacer
21814375 Whirlpool Oven Rail Mount
21814376 Whirlpool Oven Rail Mount
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not serviceable)
29WPW10131825 Whirlpool Oven Temperature Sensor
30WPL 4449845
31WP4449809 Whirlpool Screw
32WP4450038 Whirlpool Screw
33Deflector, Vent
34Vent, Center
35WP3400832 Whirlpool Screw
36WP4449154 Whirlpool Screw
37WP9759243 Whirlpool Thermostat
38Screw
394449748 Whirlpool Oven Screw
40WP4449743 Whirlpool Screw
43Base, Chassis
49WP4448933 Whirlpool Retainer
50WP4451747 Whirlpool Rear Cover
51Trim, Bottom (Stainless Steel)
51Trim, Bottom (Meteorite)
52FOLLOWING PARTS NOT ILLUSTRATED INSULATION
52WPL 4451756
52W11684730 Whirlpool Insulation
52WPL 4450365
