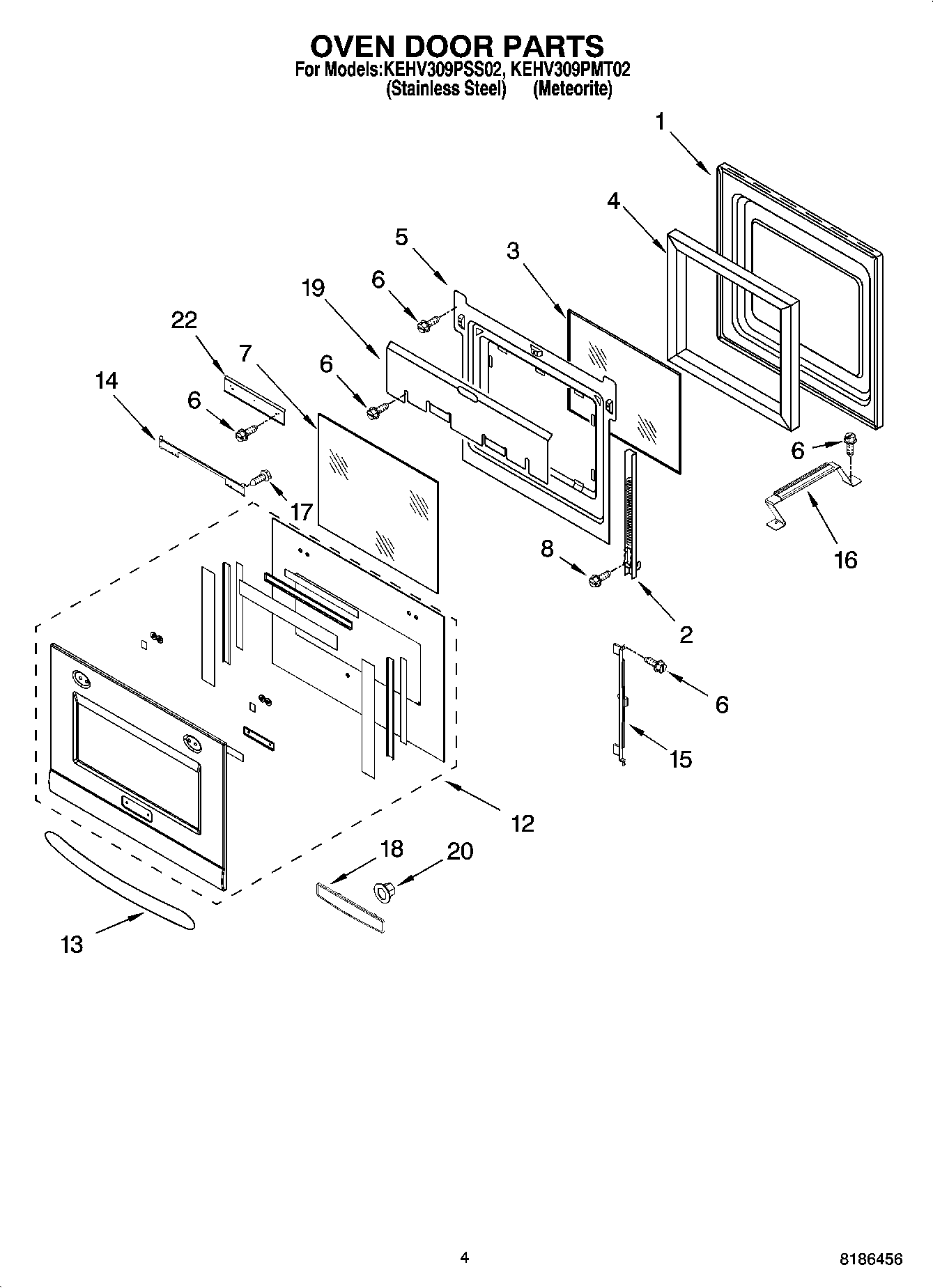

KEHV309PSS02 03 – OVEN DOOR PARTS

Products

Position	Product
1	WP9759413 Whirlpool Door Liner
2	WP9760579 Whirlpool Right Door Hinge
2	HINGE-DOOR LH/SS DOOR SPRING
3	WP4449259 Whirlpool Glass Window
4	WP4451722 Whirlpool Door Insulation Assembly
5	WP4457132 Whirlpool Retainer
6	WP4449809 Whirlpool Screw
7	WP9759225 Whirlpool Inner Door Glass
8	WP4449743 Whirlpool Screw
12	Door Glass, Assy (Meteorite)
12	Door Glass, Assy (Stainless Steel)
13	Handle, Door (Stainless Steel)
14	Bracket, Handle
15	WP9759229 Whirlpool Mounting Bracket
16	Bracket (3rd Glsss)
17	WPW10132940 Whirlpool Dishwasher Screw
18	NAMEPLATE
19	Shield, Heat
20	Palnut
22	4457114 Whirlpool Oven Heat Shield
