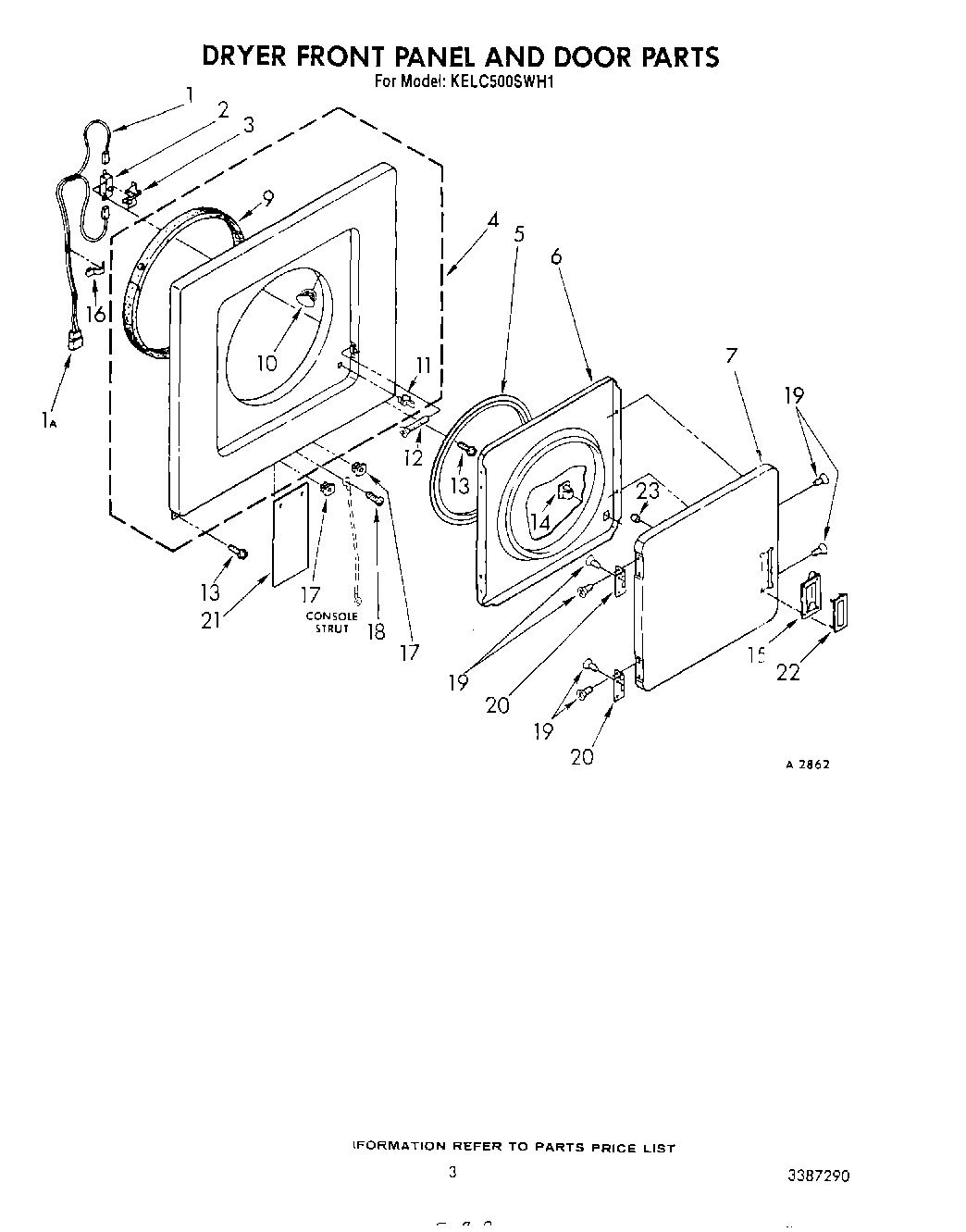

KELC500SWH1 03 – DRYER FRONT PANEL AND DOOR

Products

Position	Product
1	Harness, Door Switch (Includes Illus. 1A)
1	WP717253 Whirlpool Dishwasher Connector
2	W10820036 Whirlpool Door Switch Kit
3	WP691581 Whirlpool Actuator
4	Panel, Front (Platinum)
4	285314 Whirlpool O/S1 Panel
4	Panel, Front (Almond)
4	Panel, Front (Toast)
4	Panel, Front (Golden Harvest)
5	W11613302 Whirlpool Door Seal
6	280077 Whirlpool Door
7	Door, Front (White)
7	Door, Front (Toast)
7	Door, Front (Almond)
7	Door, Front (Harvest Wheat)
7	Door, Front (Platinum)
9	279264 Whirlpool Bearing and Seal Kit
10	279220 Whirlpool Clip
12	WP98129 Whirlpool Screw
13	SCREW
14	279570 Whirlpool Dryer Door Latch Kit
15	Handle, Door (Platinum)
15	Handle, Door (Toast)
15	Handle, Door (Harvest Wheat)
15	Handle, Door (Almond)
15	Handle, Door (White)
16	Support Protector
17	Fastener, Push (2)
18	WP3390631 Whirlpool Screw
19	WP694091 Whirlpool Screw
20	WP348023 Whirlpool Hinge
21	Barrier, Harness
22	Insert, Handle
23	WP488130 Whirlpool Air Conditioner Nut
