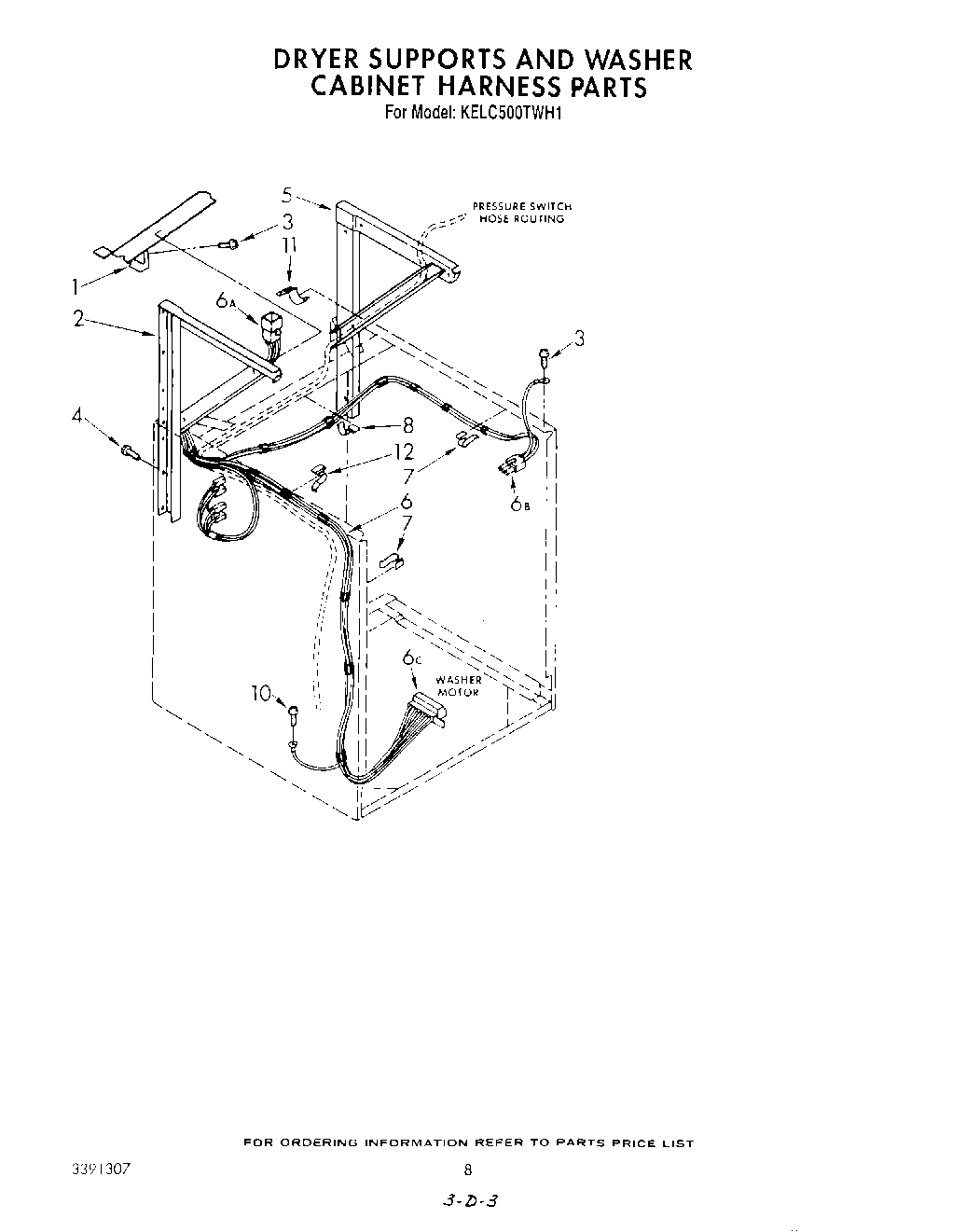

KELC500TAL1 06 – DRYER SUPPORTS AND WASHER CABINET H

KELC500TAL1 06 – DRYER SUPPORTS AND WASHER CABINET H

Written by

in

KELC500TAL1 06 – DRYER SUPPORTS AND WASHER CABINET H

Products

PositionProduct
1694304 Whirlpool Channel Cover
2W11174025 Whirlpool Support Assembly
3SCREW
4WP308544 Whirlpool Screw
5W11174024 Whirlpool Support
6WP62889 Whirlpool Washer Lid Switch Terminal Receptacle
6WP62505 Whirlpool Connector
6Plug, Terminal (12-Way) (Connects With Automatic Console Harness)
6Harness, Upper (Automatic) (Includes Illus. 6A, 6B & 6C)
7Clip, Wiring Harness (8)
8Clip, Pressure Switch Hose And Wiring Harness (3)
11WP90016 Whirlpool Clip
12CLIP
