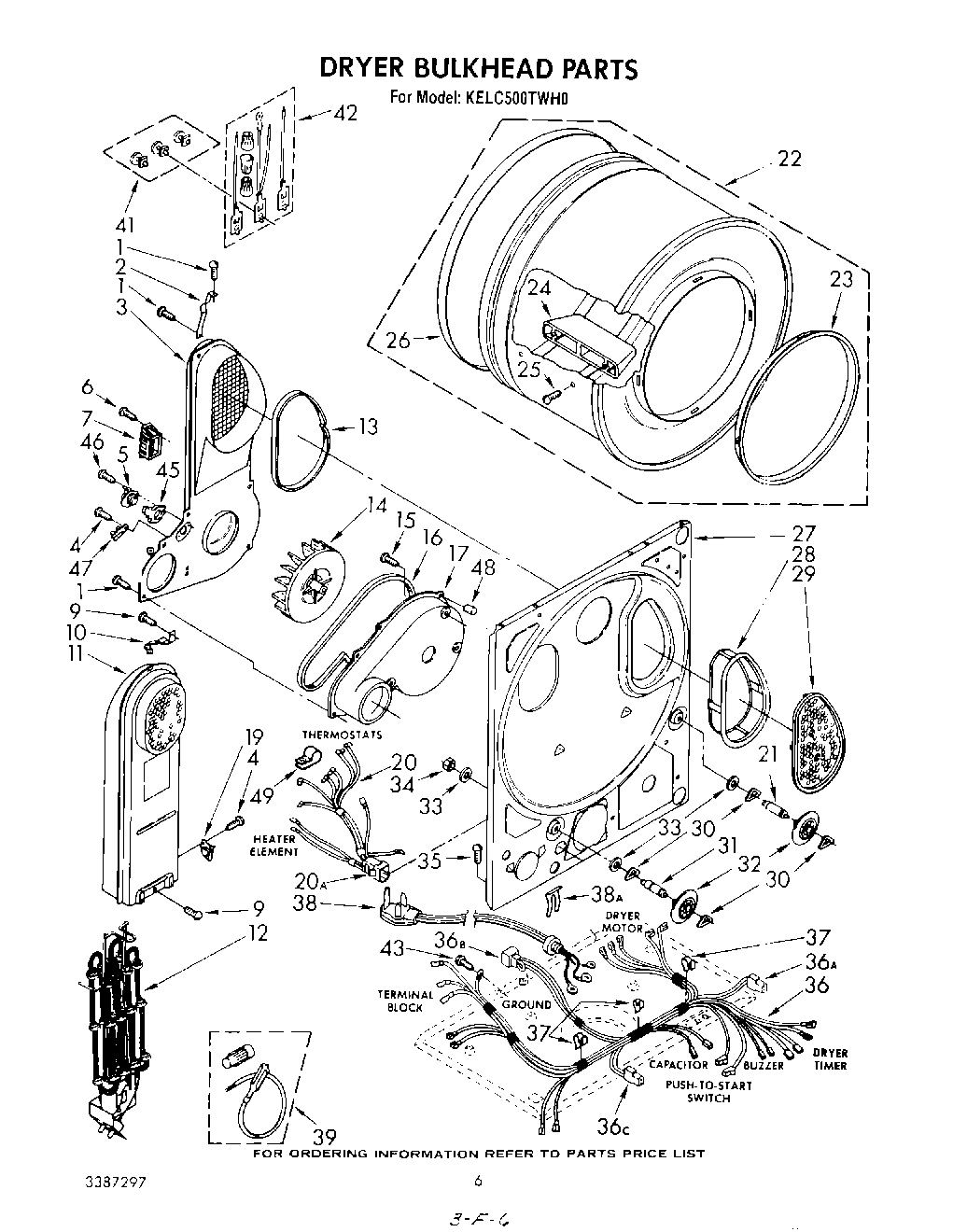

KELC500TWH0 05 – DRYER BULKHEAD

Products

Position	Product
1	SCREW
2	345396 Whirlpool Clip
3	Air Duct & Bracket
4	WP90767 Whirlpool Screw
5	WP694674 Whirlpool Cycling Thermostat
7	279320 Whirlpool Dryer Rear Terminal Block Kit
10	279771 Whirlpool Clip
11	Box, Heater
12	Element, Heater
13	SEAL
14	WP696426 Whirlpool Wheel
15	WP308685 Whirlpool Microwave Screw
16	Seal, Fan Scroll
17	WP696418 Whirlpool Fan Scroll
19	THRMST-FIX
20	Harness, Thermostat & Heater (Includes Illus. 20A)
20	Plug, Multi- Terminal 56B
21	SHAFT SUPPORT ROLLER DRYER
22	3391834 Whirlpool Drum
23	WP3394508 Whirlpool Bearing Ring
24	685207 Whirlpool Dryer Baffle
25	Screw, 11-16 x 7/8
26	SEAL
27	279848 Whirlpool Bulkhead
28	W10828351 Whirlpool Dryer Filter Lint Screen with Cover
30	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
31	SHAFT SUPPORT ROLLER DRYER
32	349241T Whirlpool Dryer Drum Support Roller Kit
33	WP348197 Whirlpool Washer Assembly
33	WP3388703 Whirlpool Washer
34	WP358160 Whirlpool Nut
35	WP3390631 Whirlpool Screw
36	WPL 717315
36	Receptacle (2)
36	Receptacle, Latching (2-Way) (Uses Terminal 94614)
36	Harness, Main Dryer Wiring (Includes Illus. 36A, 36B & 3
37	CLIP
38	W11712577 Whirlpool Clip
38	PT220L Whirlpool Dryer Power Cord
39	279457 Whirlpool Dryer Heating Element Wide Spade Connection
41	279393 Whirlpool Terminal Block Screw and Nut Kit
42	279318 Whirlpool Terminal
45	Heater, Thermostat
46	WP488729 Whirlpool Refrigerator Door Screw
47	WP3392519 Whirlpool Dryer Thermal Fuse
48	W10491983 Whirlpool Tine Tip
49	488946 Whirlpool Air Conditioner Clamp
