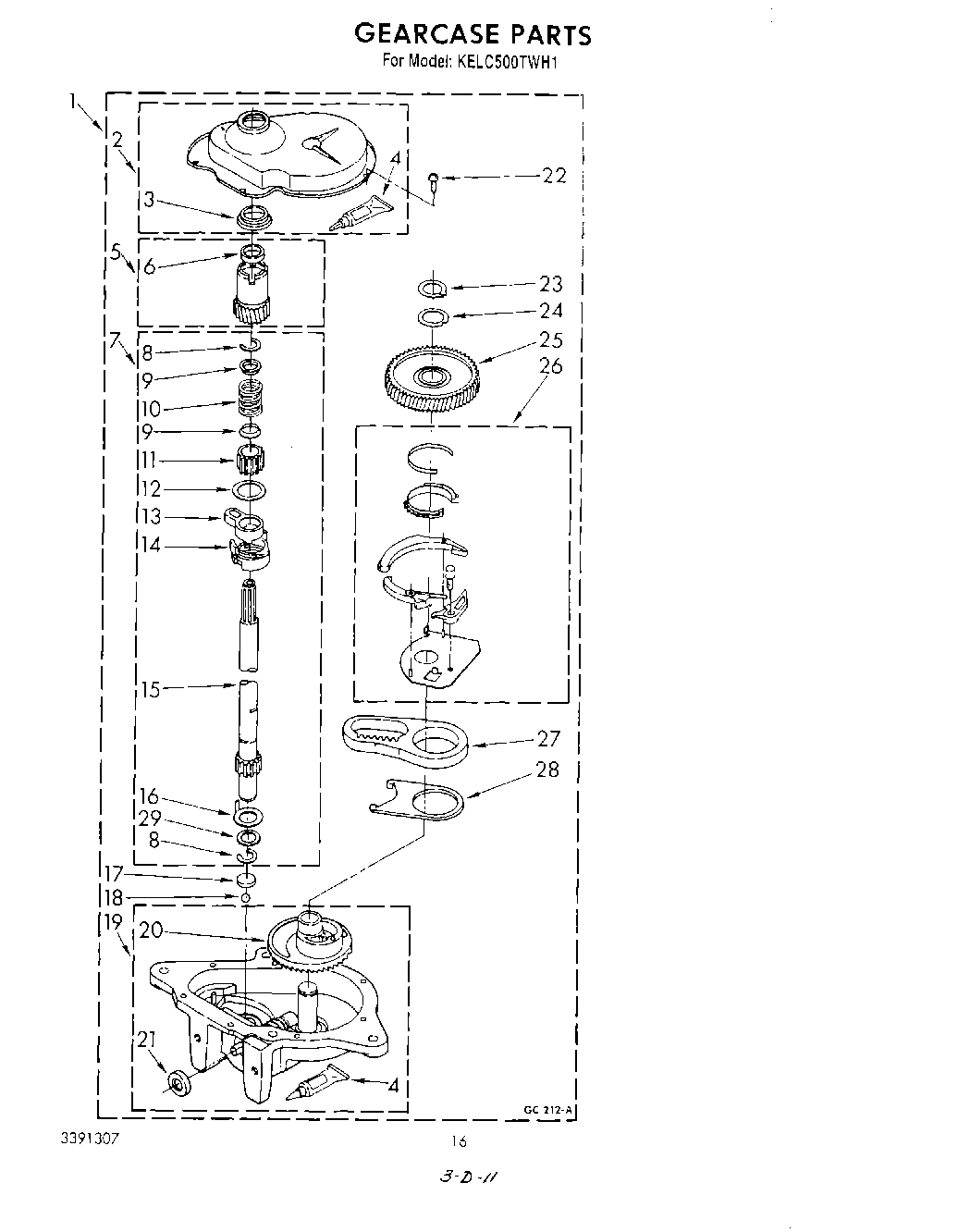

KELC500TWH1 13 – GEARCASE

KELC500TWH1 13 – GEARCASE

Written by

in

KELC500TWH1 13 – GEARCASE

Products

PositionProduct
13360629 Whirlpool Washer Gearcase Transmission
2285202 Whirlpool Cover Assembly
3WP3349985 Whirlpool Shaft Seal
4WP285195 Whirlpool Sealer Assembly
6WP356427 Whirlpool Shaft Seal
7WP389387 Whirlpool Agitator Shaft
8Ring, Retaining (2)
962677 Whirlpool Retainer
10Spring, Agitator
1262619 Whirlpool Washer
15Shaft, Agitator
16Washer, Cam Thrust
17285205 Whirlpool Bearing
19Bottom and Pinion, Gearcase
20Gear, Main Drive
21285352 Whirlpool Washer Oil Seal Kit for Gearcase Input Shaft
22WP3351614 Whirlpool Screw
23Ring, Retaining
24Washer Kit, Thrust
26NEUTRL-PAK
29WP388815 Whirlpool Washer
