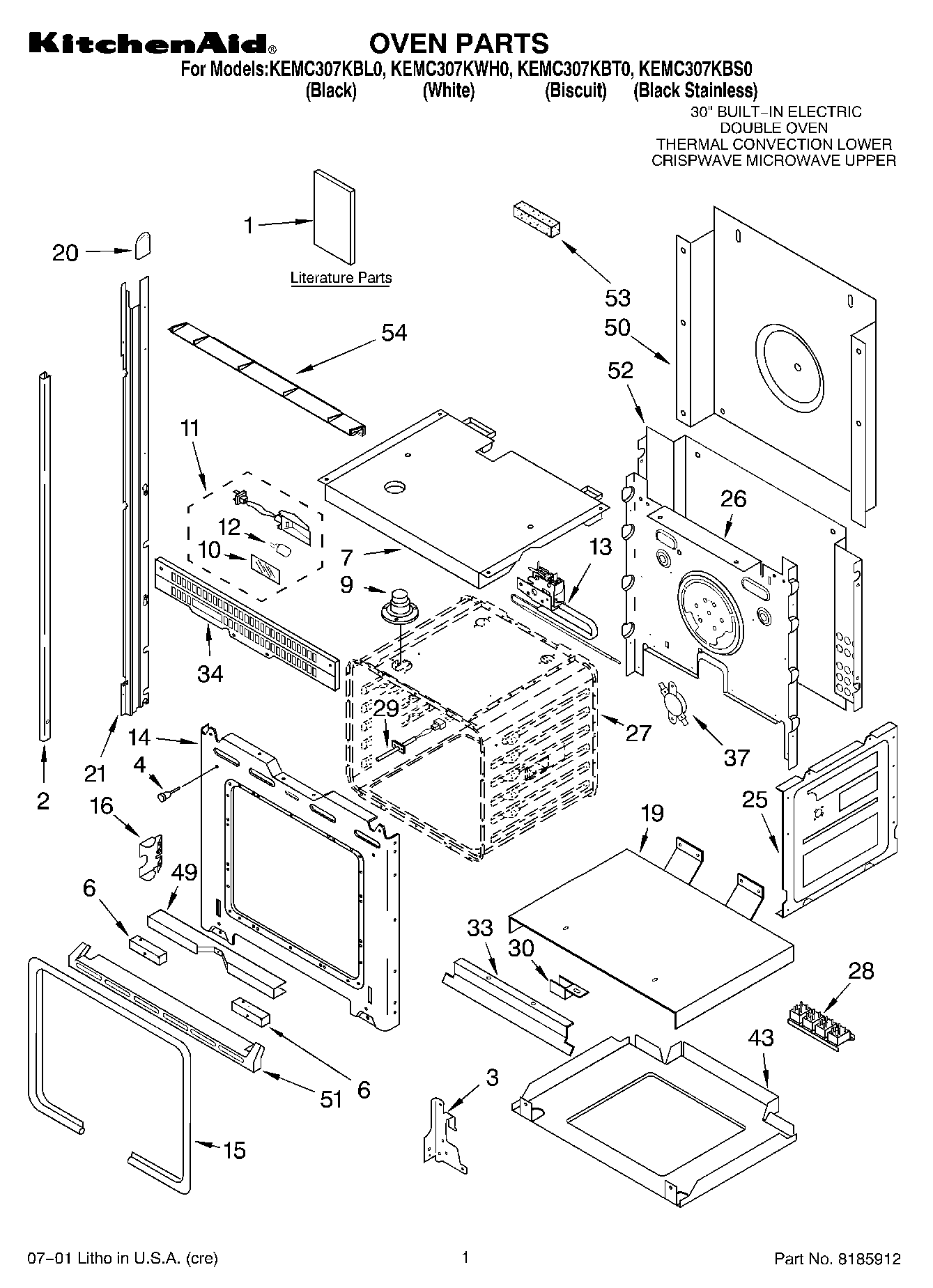

KEMC307KBL0 01 – OVEN, LITERATURE

Products

Position	Product
1	Safer Cooking Tips
1	Literature Parts (Cooking Guide (Lable))
1	Literature Parts (Guide, Easy Use (Microwave))
1	Literature Parts (Installation Instructions)
1	Literature Parts (Use & Care Guide (Oven))
1	Literature Parts (Use & Care Guide)
1	Literature Parts (Tech Sheet (Oven))
1	Literature Parts (Easy Set Guide)
2	Trim, Side Right Hand (Black)
2	Trim, Side Right Hand (White)
2	(Trim, Side Left Hand) (White)
2	(Trim, Side Left Hand) (Black)
2	WP8281236 Whirlpool Screw
2	Trim, Side Right Hand (Biscuit)
3	WP4449743 Whirlpool Screw
3	WP4455606 Whirlpool Right Hand Hinge
3	WP4455605 Whirlpool Left Hand Hinge
4	4448520 Whirlpool Oven Bumper
6	Spacer, Foam
7	Top, Chassis
9	SCREW
9	W10861715 Whirlpool Vent Tube
10	Lens, Light
11	4449748 Whirlpool Oven Screw
11	WP4448972 Whirlpool Oven Light
12	WP4452164 Whirlpool 12V 5W Halogen Light Bulb
13	Safety Switch (Oven Temp)
14	WP4450118 Whirlpool Nut
14	Frame, Front
14	Screw
15	W11675844 Whirlpool Oven Gasket
16	4452152 Whirlpool Oven Mounting Bracket
19	Support, Insulation
20	Cap, Spacer
21	814375 Whirlpool Oven Rail Mount
21	WP4448444 Whirlpool Grommet
21	814376 Whirlpool Oven Rail Mount
25	W10782197 Whirlpool Side Panel
26	Back, Chassis
27	Liner, Oven (Not serviceable)
28	WP9752759 Whirlpool Relay
28	Bracket
29	WPW10131825 Whirlpool Oven Temperature Sensor
30	WPL 4449845
33	9760677 Whirlpool Oven Vent Deflector
34	WP4450038 Whirlpool Screw
34	WPL 4451667
37	WP9759243 Whirlpool Thermostat
43	WPL 4455530
49	WP4448933 Whirlpool Retainer
49	WP4449154 Whirlpool Screw
50	WP4449809 Whirlpool Screw
50	WP4451747 Whirlpool Rear Cover
51	WPL 4455445
51	WPL 4455447
51	WPL 4455443
51	WP3400832 Whirlpool Screw
52	WPL 4451756
53	Spacer, Foam
54	Vent-Cntrl Panel
54	W11684730 Whirlpool Insulation
54	WPL 4450365
