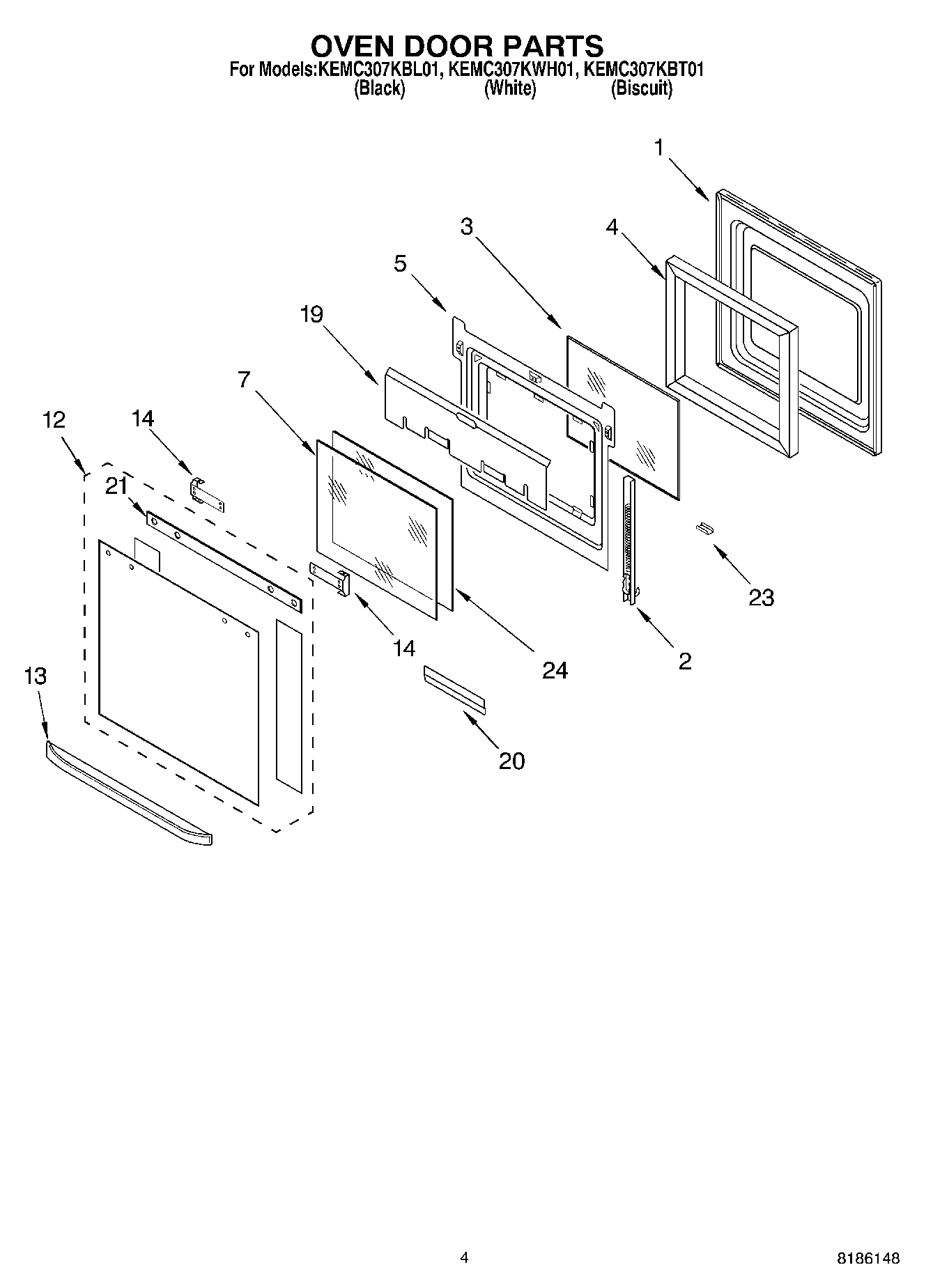

KEMC307KBL01 04 – OVEN DOOR PARTS

Products

Position	Product
1	WP9759413 Whirlpool Door Liner
2	HINGE-DOOR LH/SS DOOR SPRING
2	HINGE-DOOR
2	WP4449743 Whirlpool Screw
3	WP4449259 Whirlpool Glass Window
4	WP4451722 Whirlpool Door Insulation Assembly
5	Retainer, Glass
7	WP4449263 Whirlpool Inner Door Glass
12	Door Glass, Assy (White)
12	Door Glass, Assy (Black)
12	Door Glass, Assy (Biscuit)
13	Handle, Door (Black)
13	Handle, Door (White)
13	Handle, Door (Biscuit)
14	Screw
14	4455803 Whirlpool Oven Bracket
14	Bracket, Handle (L.Hand)
19	Shield, Heat
20	WP4449809 Whirlpool Screw
20	Retainer, Glass
21	Seal, Door Top
23	RETAINER,GLASS CLIP (BISCUIT)
23	Clip, Retainer (White Model)
23	Clip, Retainer (Black Model)
23	WP3400832 Whirlpool Screw
24	Glass, Inner
