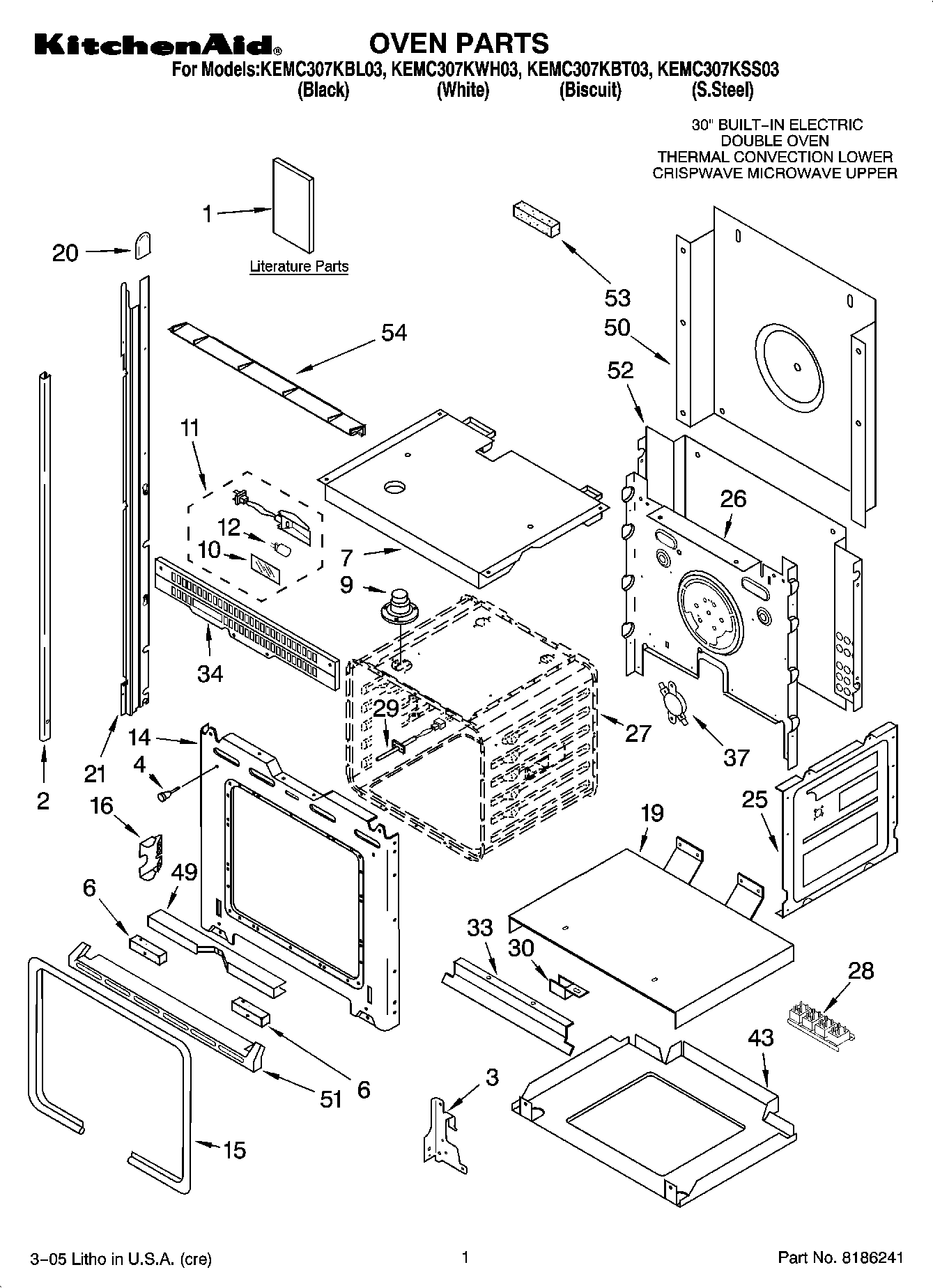

KEMC307KBL03 01 – OVEN PARTS

KEMC307KBL03 01 – OVEN PARTS

Written by

in

KEMC307KBL03 01 – OVEN PARTS

Products

PositionProduct
W10401225 Whirlpool Oven Outer Door Glass
1Guide-Easy Use M/W
1Installation Instructions
1Use & Care Guide (Oven)
1Cook Guide Label
1Safe Cooking Tips
1Easy Set Guide
1Tech Sheet (Oven)
1Use & Care Guide
2Trim, Side Right Hand (White)
2(Trim, Side Left Hand) (Black)
2Trim, Side Right Hand (Black)
2Trim, Side (LH Stainless Steel)
2WP8281236 Whirlpool Screw
2(Trim, Side Left Hand) (White)
2Trim, Side (RH Stainless Steel)
3WP4449743 Whirlpool Screw
3WP4455605 Whirlpool Left Hand Hinge
3WP4455606 Whirlpool Right Hand Hinge
44448520 Whirlpool Oven Bumper
6Spacer, Foam
7Top, Chassis
9W10861715 Whirlpool Vent Tube
9SCREW
10Lens, Light
114449748 Whirlpool Oven Screw
11WP4448972 Whirlpool Oven Light
12WP4452164 Whirlpool 12V 5W Halogen Light Bulb
14WP4450118 Whirlpool Nut
14Frame, Front
14Screw
15W11675844 Whirlpool Oven Gasket
164452152 Whirlpool Oven Mounting Bracket
19Support, Insulation
20Cap, Spacer
21WP4448444 Whirlpool Grommet
21814375 Whirlpool Oven Rail Mount
21814376 Whirlpool Oven Rail Mount
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not serviceable)
28WP9752759 Whirlpool Relay
29WPW10131825 Whirlpool Oven Temperature Sensor
30WPL 4449845
339760677 Whirlpool Oven Vent Deflector
34Vent, Center
34WP4450038 Whirlpool Screw
37WP9759243 Whirlpool Thermostat
43Base, Chassis
49WP4448933 Whirlpool Retainer
49WP4449154 Whirlpool Screw
50WP4451747 Whirlpool Rear Cover
50WP4449809 Whirlpool Screw
51WPL 4455443
51Insulation Bottom Vent
51WP3400832 Whirlpool Screw
51WPL 4455447
51WPL 4455445
52WPL 4451756
53Spacer, Foam
54Vent-Cntrl Panel
54W11684730 Whirlpool Insulation
54WPL 4450365
54WPL ARI85198A8
