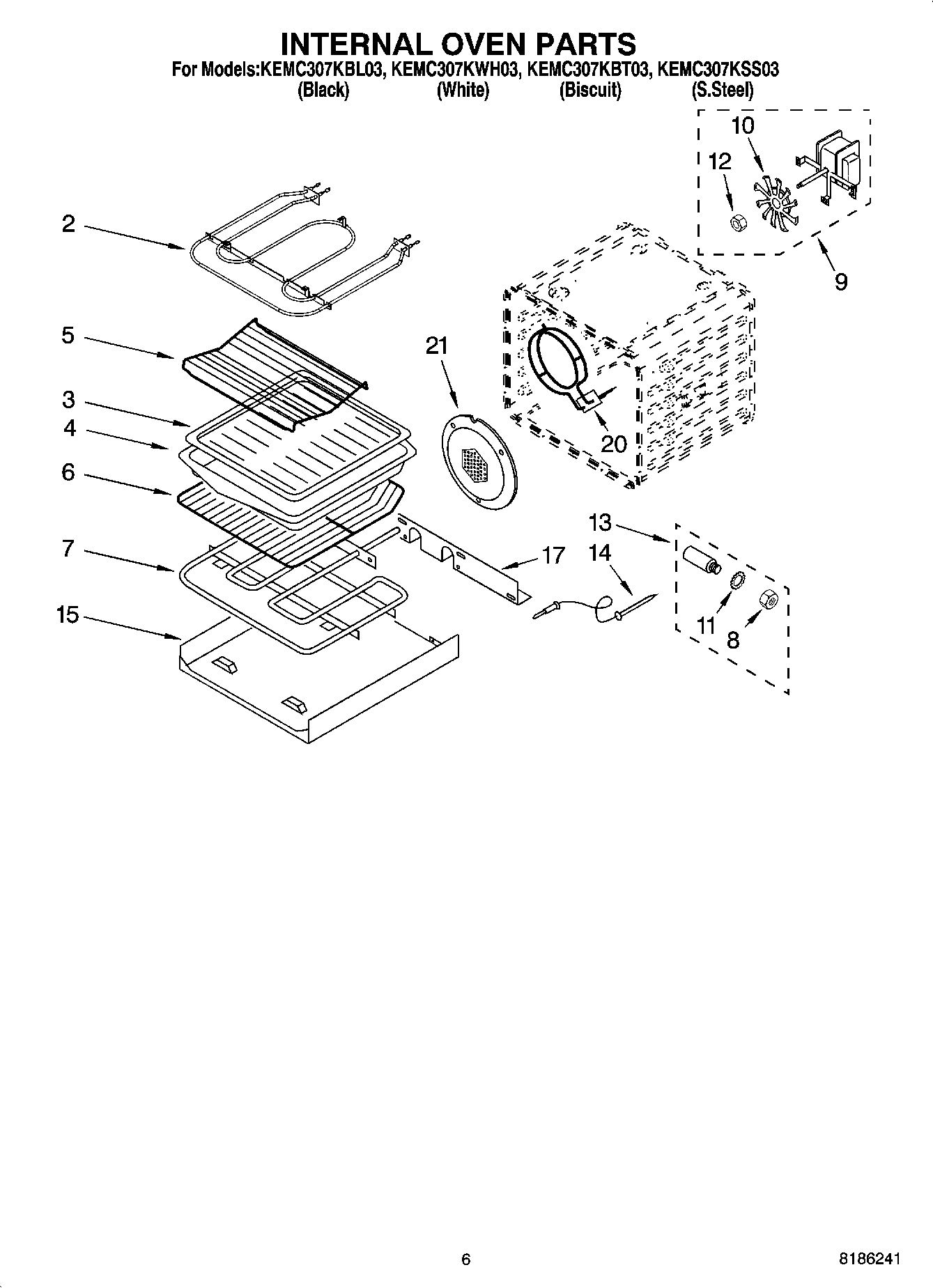

KEMC307KBL03 05 – INTERNAL OVEN PARTS

KEMC307KBL03 05 – INTERNAL OVEN PARTS

Written by

in

KEMC307KBL03 05 – INTERNAL OVEN PARTS

Products

PositionProduct
2WPW10207400 Whirlpool Broil Element
3WP3195996 Whirlpool Pan Grid
4W10737569 Whirlpool Broil Pan
5Rack, Roasting
6WPW10179152 Whirlpool Rack Oven
6Pad, Rack
74451175 Whirlpool Bake Element
8WP9755546 Whirlpool Locknut
9Motor Convection
10WP4452226 Whirlpool Convection Fan
11WP9755547 Whirlpool Lockwasher
12Nut
138186589 Whirlpool Jack Probe
14WP9755542 Whirlpool Oven Meat Probe
15Tray, Hidden Bake
174450039 Whirlpool Oven Access Cover
17WP4449809 Whirlpool Screw
20WP9760769 Whirlpool Element Assembly
21WP4449154 Whirlpool Screw
21WPW10160821 Whirlpool Fan Cover
