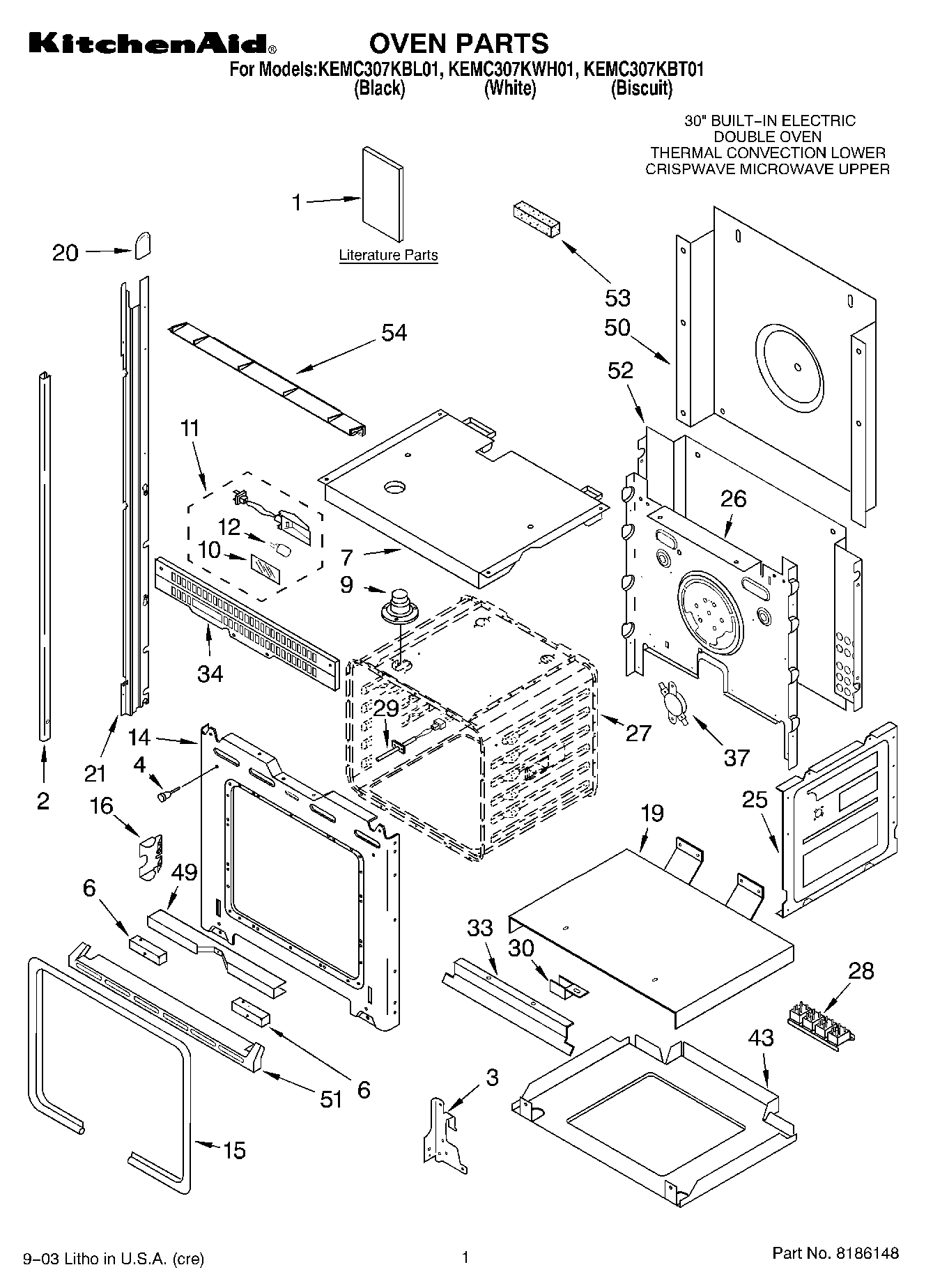

KEMC307KBT01 02 – OVEN PARTS

KEMC307KBT01 02 – OVEN PARTS

Written by

in

KEMC307KBT01 02 – OVEN PARTS

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (Easy Set Guide)
1Literature Parts (Use & Care Guide)
1Literature Parts (Guide, Easy Use (Microwave))
1Literature Parts (Installation Instructions)
1Literature Parts (Cooking Guide (Lable))
1Literature Parts (Tech Sheet (Oven))
1Literature Parts (Use & Care Guide (Oven))
2Trim, Side Right Hand (White)
2WP8281236 Whirlpool Screw
2(Trim, Side Left Hand) (Black)
2Trim, Side Right Hand (Black)
2(Trim, Side Left Hand) (White)
3WP4449743 Whirlpool Screw
3WP4455606 Whirlpool Right Hand Hinge
3WP4455605 Whirlpool Left Hand Hinge
44448520 Whirlpool Oven Bumper
6Spacer, Foam
7Top, Chassis
9W10861715 Whirlpool Vent Tube
9SCREW
10Lens, Light
114449748 Whirlpool Oven Screw
11WP4448972 Whirlpool Oven Light
12WP4452164 Whirlpool 12V 5W Halogen Light Bulb
14Frame, Front
14WP4450118 Whirlpool Nut
14Screw
15W11675844 Whirlpool Oven Gasket
164452152 Whirlpool Oven Mounting Bracket
19Support, Insulation
20Cap, Spacer
21WP4448444 Whirlpool Grommet
21814376 Whirlpool Oven Rail Mount
21814375 Whirlpool Oven Rail Mount
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not serviceable)
28WP9752759 Whirlpool Relay
29WPW10131825 Whirlpool Oven Temperature Sensor
30WPL 4449845
339760677 Whirlpool Oven Vent Deflector
34WP4450038 Whirlpool Screw
34WPL 4451667
37WP9759243 Whirlpool Thermostat
43WPL 4455530
49WP4448933 Whirlpool Retainer
49WP4449154 Whirlpool Screw
50WP4449809 Whirlpool Screw
50WP4451747 Whirlpool Rear Cover
51WPL 4455445
51WP3400832 Whirlpool Screw
51WPL 4455443
52WPL 4451756
53Spacer, Foam
54WPL 4450365
54Vent-Cntrl Panel
54W11684730 Whirlpool Insulation
54WPL ARI85221A2
