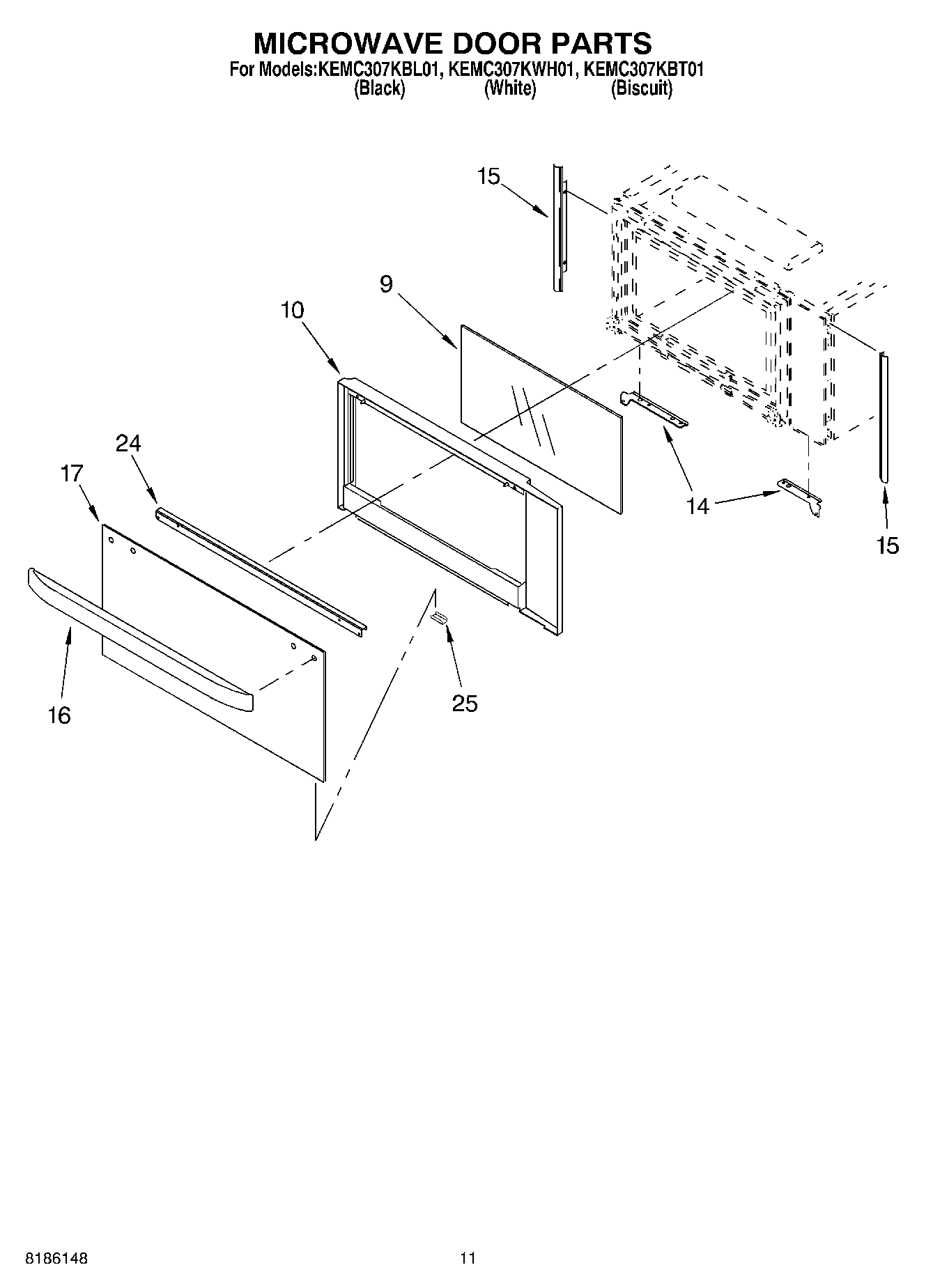

KEMC307KBT01 09 – MICROWAVE DOOR PARTS, OPTIONAL PARTS

Products

Position	Product
	Filler Kit (Al)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	WP261869 Whirlpool Microwave Paint
	242831 Whirlpool Oven Wire
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	Filler Kit (Wh)
	Filler Kit (Bl)
	8301909 Whirlpool Oven Wire Harness
	WPL 8301922
	261900 Whirlpool Microwave Spray
	4450950 Whirlpool Oven Conduit
	WPL 591014
	1
	Spacer, Harness
	4392899 Whirlpool Biscuit Touch-Up Paint
	WPW10339879 Whirlpool Wire Tie
	4450800 Whirlpool Oven Screw
	Wire, 25“ Roll (White 14 GA.)
	Wire, 25` Roll (Red 14 Ga.)
	350930 Whirlpool White Spray Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	Wire, 25` Roll (Black 14 Ga.)
	4392901 Whirlpool Biscuit Spray Paint
	WP4449809 Whirlpool Screw
	285006 Whirlpool Spray
	72032 Whirlpool Touch Up Paint Black
	WP482338 Whirlpool Refrigerator Adhesive
	8528351 Whirlpool Clip
	814381 Whirlpool Pin
	WP4448950 Whirlpool Screw
	Ground (M/W)
	16515 Whirlpool Clip
9	Glass, Middle
10	WP8303556 Whirlpool Microwave Door Frame
10	WP4450038 Whirlpool Screw
14	Bracket, Mounting (Right Side)
14	Bracket, Mounting (Left Side)
15	Filler, Side (Left Side)
15	Filler, Side
16	Handle, Door (Black)
16	Handle, Door (White)
16	Handle, Door (Biscuit)
17	Glass, Outer (Black)
17	Glass, Outer (White)
17	Glass, Outer (Biscuit)
24	WPW10132940 Whirlpool Dishwasher Screw
24	Bracket, Handle
25	RETAINER,GLASS CLIP (BISCUIT)
25	Clip, Retainer (Black Model)
25	Clip, Retainer (White Model)
