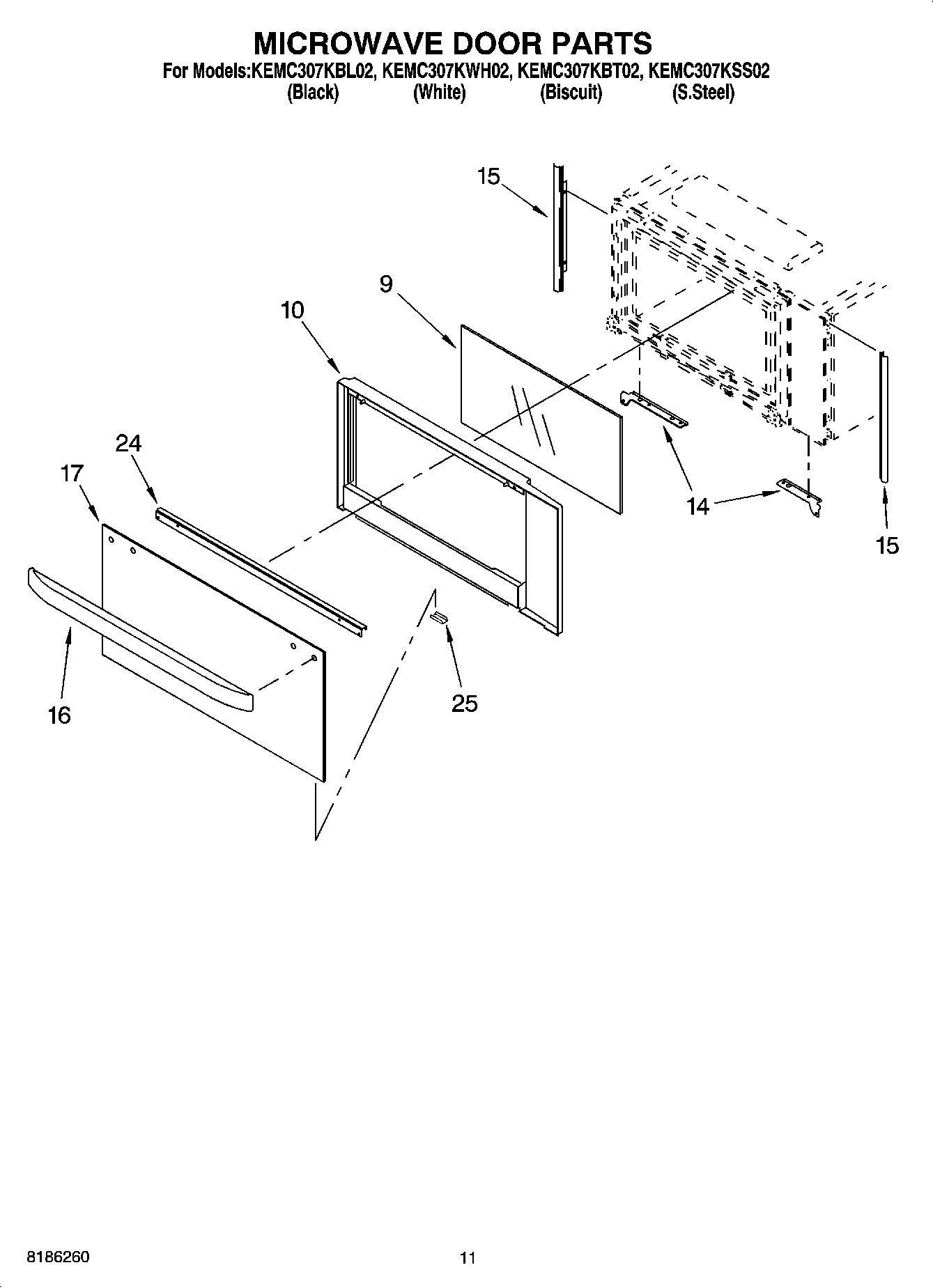

KEMC307KBT02 09 – MICROWAVE DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

KEMC307KBT02 09 – MICROWAVE DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

KEMC307KBT02 09 – MICROWAVE DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	WPL ARI85233A1
	WPL 591014
	1
	Wire (14 Ga. 200 c Brown)
	18 Ga. 80~c Rating (Red)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	4450950 Whirlpool Oven Conduit
	261900 Whirlpool Microwave Spray
	WPL ARI85232A8
	WPL ARI85231A9
	WPL ARI85230A9
	WPL ARI85229A5
	WPL 8301922
	Filler Kit (Al)
	Filler Kit (Wh)
	Filler Kit (Bl)
	8301909 Whirlpool Oven Wire Harness
	WPL ARI85234A5
	WP261869 Whirlpool Microwave Paint
	350930 Whirlpool White Spray Paint
	4392901 Whirlpool Biscuit Spray Paint
	285006 Whirlpool Spray
	WPW10339879 Whirlpool Wire Tie
	4450800 Whirlpool Oven Screw
	Wire, 25“ Roll (White 14 GA.)
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25` Roll (Black 14 Ga.)
	4392899 Whirlpool Biscuit Touch-Up Paint
	WP4449809 Whirlpool Screw
	72017 Whirlpool Appliance Touch-Up Paint White
	72032 Whirlpool Touch Up Paint Black
	WP482338 Whirlpool Refrigerator Adhesive
	242831 Whirlpool Oven Wire
	Ground (M/W)
	8528351 Whirlpool Clip
	16515 Whirlpool Clip
	WP4448950 Whirlpool Screw
	Spacer, Harness
	814381 Whirlpool Pin
9	Glass, Middle
10	WP4450038 Whirlpool Screw
10	WP8303556 Whirlpool Microwave Door Frame
14	Bracket, Mounting (Right Side)
14	Bracket, Mounting (Left Side)
15	Filler, Side
15	Filler, Side (Left Side)
16	Handle, Door (Black)
16	Door Handle (Stainless Steel)
16	Handle, Door (White)
16	Handle, Door (Biscuit)
17	Glass, Outer (Biscuit)
17	Glass, Outer (White)
17	Glass, Outer (Black)
17	WP4452259 Whirlpool Door Glass
24	WPW10132940 Whirlpool Dishwasher Screw
24	Bracket, Handle
25	Retainer, Glass-Clip (Stainless Steel)
25	Clip, Retainer (White Model)
25	Clip, Retainer (Black Model)
25	RETAINER,GLASS CLIP (BISCUIT)
