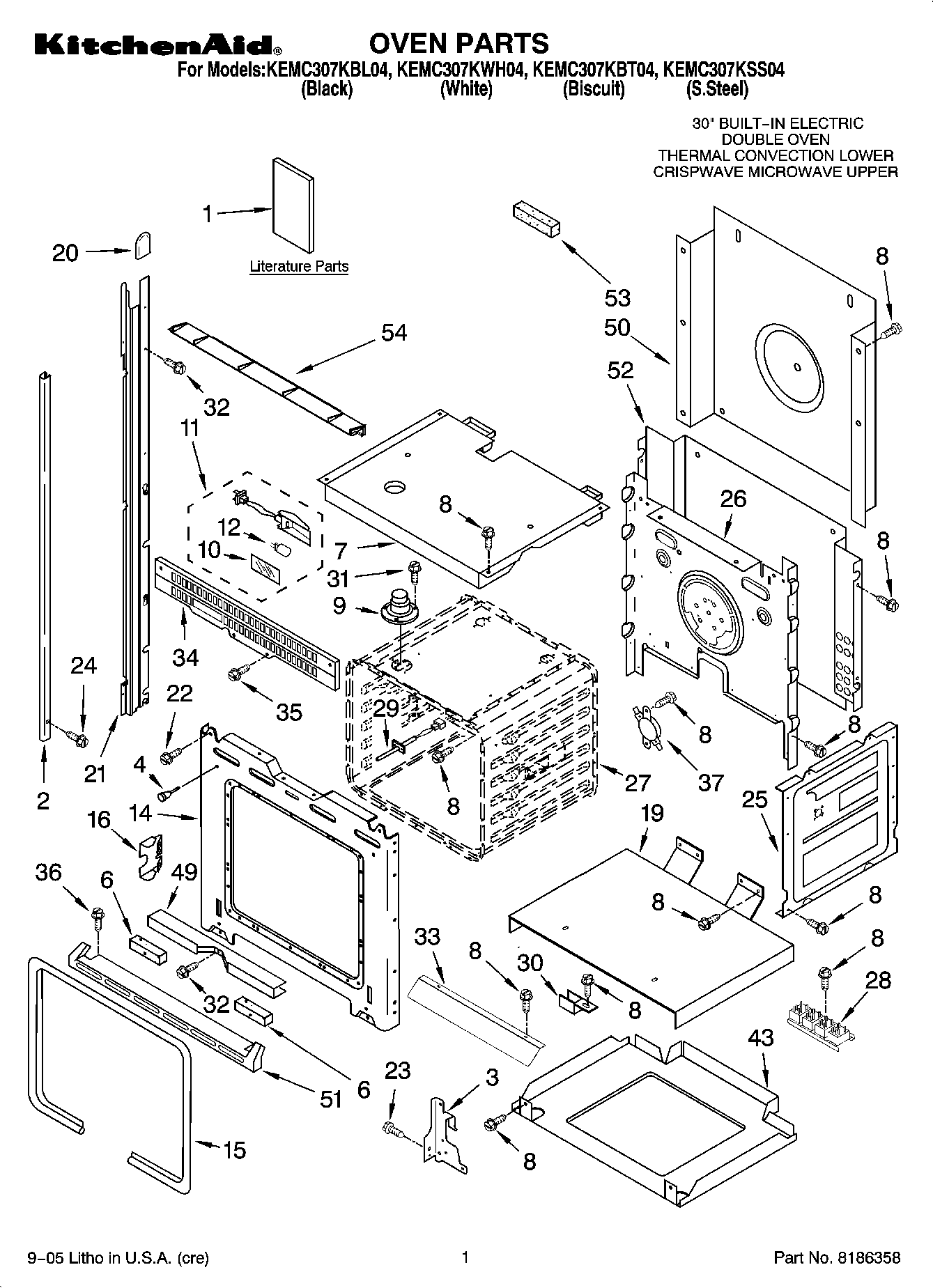

KEMC307KBT04 01 – OVEN PARTS

KEMC307KBT04 01 – OVEN PARTS

Written by

in

KEMC307KBT04 01 – OVEN PARTS

Products

PositionProduct
1Use & Care Guide (Oven)
1Installation Instructions
1Safe Cooking Tips
1Use & Care Guide
1Guide-Easy Use M/W
1Cook Guide Label
1Safe Cooking Tips (French)
1Easy Set Guide
1Tech Sheet (Oven)
2Trim, Side Right Hand (White)
2(Trim, Side Left Hand) (White)
2Trim, Side Right Hand (Black)
2Trim, Side (LH Stainless Steel)
2(Trim, Side Left Hand) (Black)
2Trim, Side (RH Stainless Steel)
3WP4455606 Whirlpool Right Hand Hinge
3WP4455605 Whirlpool Left Hand Hinge
44448520 Whirlpool Oven Bumper
6Spacer, Foam
7Top, Chassis
8WP4449809 Whirlpool Screw
9W10861715 Whirlpool Vent Tube
10Lens, Light
11WP4448972 Whirlpool Oven Light
12WP4452164 Whirlpool 12V 5W Halogen Light Bulb
14Frame, Front
15W11675844 Whirlpool Oven Gasket
164452152 Whirlpool Oven Mounting Bracket
19Support, Insulation
20Cap, Spacer
21814376 Whirlpool Oven Rail Mount
21814375 Whirlpool Oven Rail Mount
22Screw
23WP4449743 Whirlpool Screw
24WP8281236 Whirlpool Screw
24WP694091 Whirlpool Screw
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not serviceable)
28WP9752759 Whirlpool Relay
29WPW10131825 Whirlpool Oven Temperature Sensor
30WPL 4449845
31SCREW
32WP4449154 Whirlpool Screw
339760677 Whirlpool Oven Vent Deflector
34Vent, Center
35WP4450038 Whirlpool Screw
36WP3400832 Whirlpool Screw
37WP9759243 Whirlpool Thermostat
43Base, Chassis
49WP4448933 Whirlpool Retainer
50WP4451747 Whirlpool Rear Cover
51WPL 4455447
51WPL 4455147
51WPL 4455445
51WPL 4455443
52WPL 4451756
53Spacer, Foam
54W11684730 Whirlpool Insulation
54Vent-Cntrl Panel
54WPL ARI85243A5
54WPL 4450365
