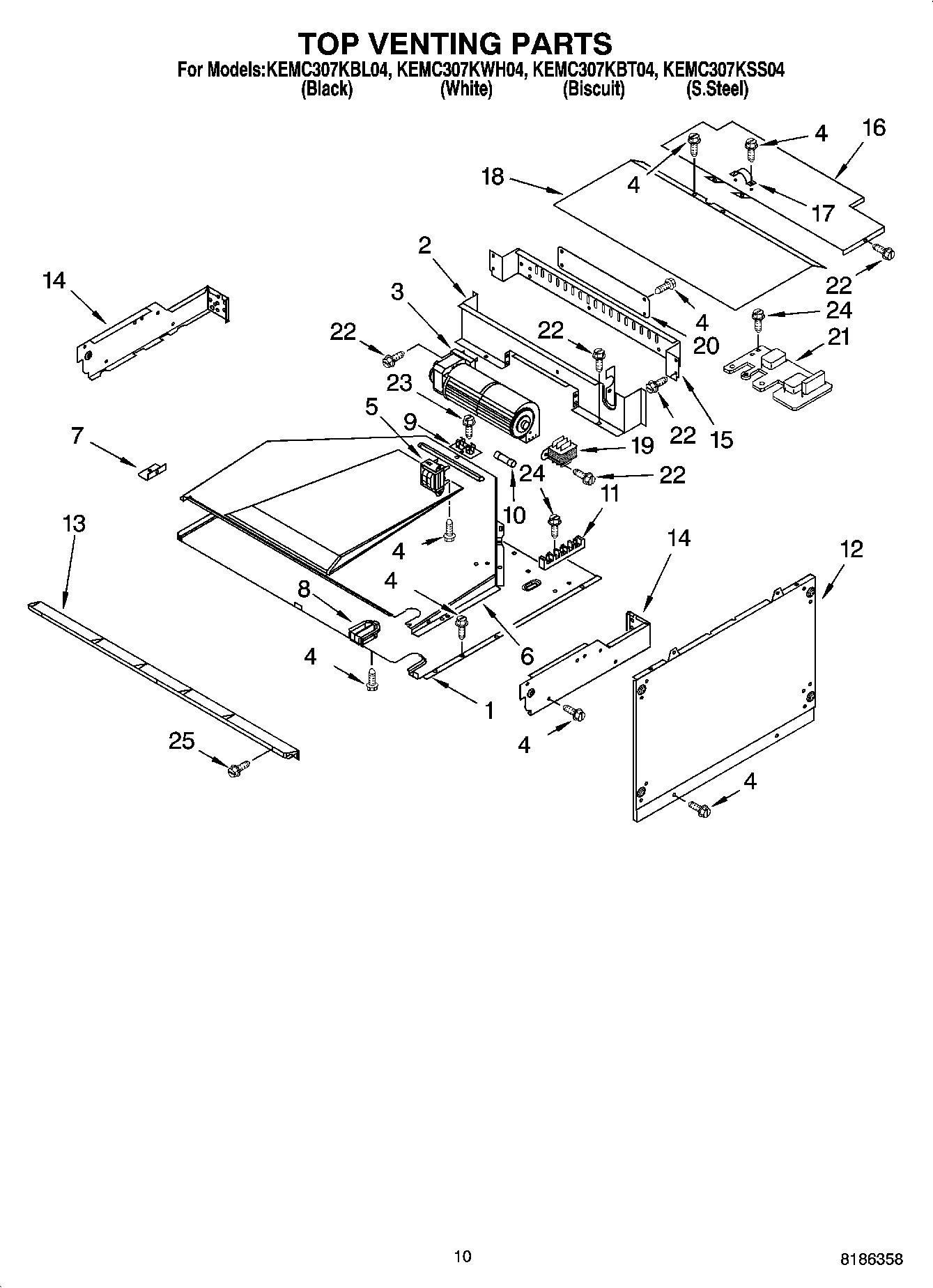

KEMC307KBT04 08 – TOP VENTING PARTS

Products

Position	Product
1	Cover, Top
2	Baffle, Blower
3	Blower
4	WP4449809 Whirlpool Screw
5	WP9760588 Whirlpool Transformer
6	Exhaust Duct
7	Bracket, Duct
8	Grommet
9	4454949 Whirlpool Oven Fuse Block
10	WPW10017410 Whirlpool Fuse
11	WP8203546 Whirlpool Terminal Block
12	Side, Combo
13	Vent-Cntrl Panel
14	W10755214 Whirlpool Side Complete
14	W10790240 Whirlpool Side Assembly Complete
15	Back, Control
16	WP4450551 Whirlpool Top Cabinet
17	4448664 Whirlpool Oven Mounting Bracket
18	WP4452367 Whirlpool Top Cover
19	Transformer, Control Panel
20	Plate, Cover
21	Suppressor
22	Screw
23	WP4449154 Whirlpool Screw
24	Screw
25	WP4450038 Whirlpool Screw
