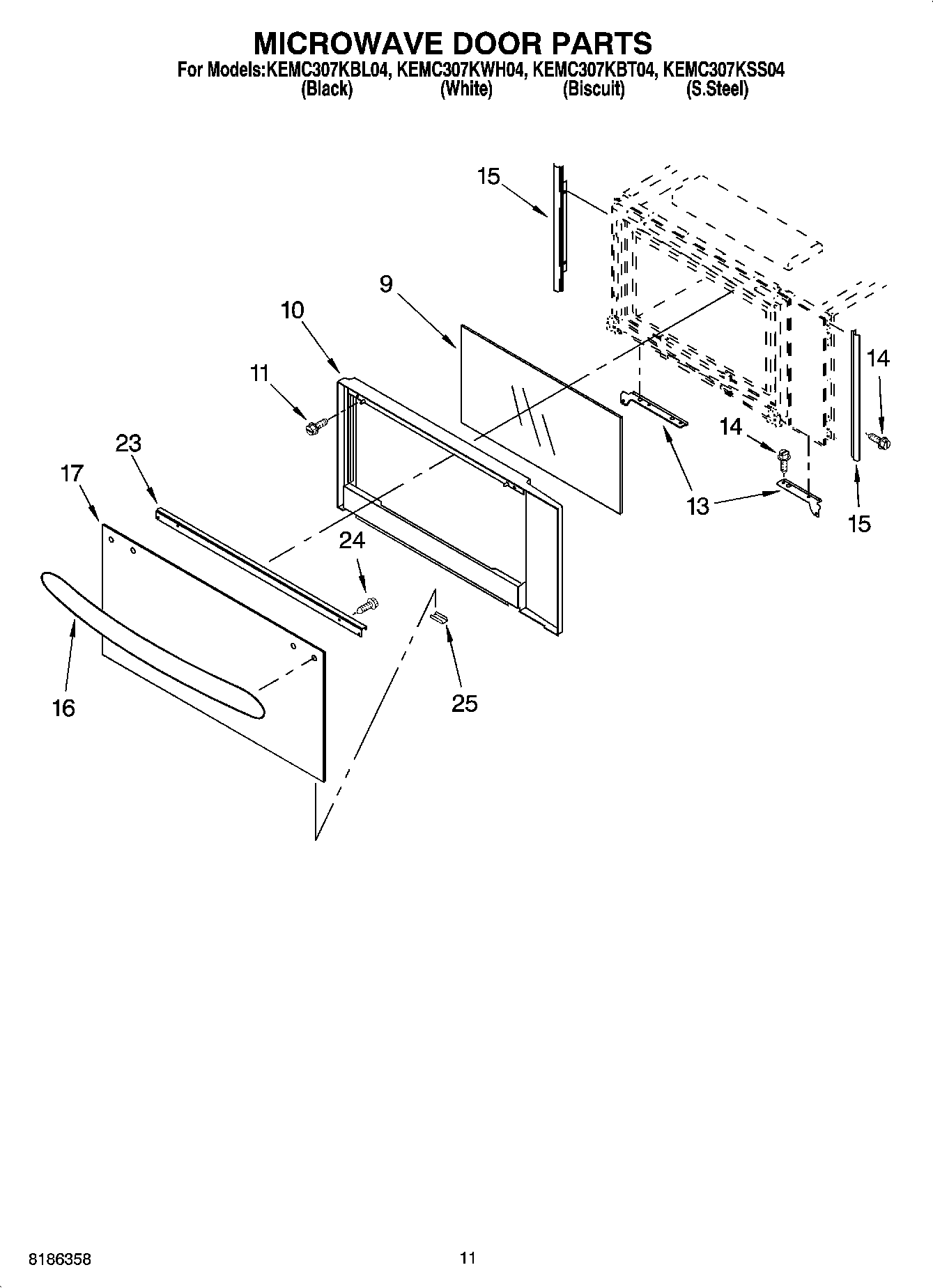

KEMC307KBT04 09 – MICROWAVE DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

KEMC307KBT04 09 – MICROWAVE DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

KEMC307KBT04 09 – MICROWAVE DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	WPL ARI85247A6
	WPL 591014
	1
	Wire (14 Ga. 200 c Brown)
	18 Ga. 80~c Rating (Red)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	4450950 Whirlpool Oven Conduit
	261900 Whirlpool Microwave Spray
	WPL ARI85246A6
	WPL ARI85245A1
	WPL ARI85244A1
	WPL 8303837
	WPL 8301922
	Filler Kit (Al)
	Filler Kit (Wh)
	Filler Kit (Bl)
	8301909 Whirlpool Oven Wire Harness
	WPL ARI85248A8
	WP261869 Whirlpool Microwave Paint
	242831 Whirlpool Oven Wire
	72017 Whirlpool Appliance Touch-Up Paint White
	72032 Whirlpool Touch Up Paint Black
	WP4449809 Whirlpool Screw
	4392899 Whirlpool Biscuit Touch-Up Paint
	4392901 Whirlpool Biscuit Spray Paint
	Wire, 25` Roll (Black 14 Ga.)
	Wire, 25` Roll (Red 14 Ga.)
	285006 Whirlpool Spray
	Wire, 25“ Roll (White 14 GA.)
	4450800 Whirlpool Oven Screw
	WPW10339879 Whirlpool Wire Tie
	350930 Whirlpool White Spray Paint
	Ground (M/W)
	WP482338 Whirlpool Refrigerator Adhesive
	8528351 Whirlpool Clip
	Spacer, Harness
	814381 Whirlpool Pin
	WP4448950 Whirlpool Screw
	16515 Whirlpool Clip
9	Glass, Middle
10	WP8303556 Whirlpool Microwave Door Frame
11	WP4450038 Whirlpool Screw
13	Bracket, Mounting (Right Side)
13	Bracket, Mounting (Left Side)
15	Filler, Side (Left Side)
15	Filler, Side
16	Door Handle (Stainless Steel)
16	Handle, Door (Biscuit)
16	Handle, Door (Black)
16	Handle, Door (White)
17	Glass, Outer (White)
17	WP4452259 Whirlpool Door Glass
17	Glass, Outer (Black)
17	Glass, Outer (Biscuit)
23	Bracket, Handle
24	WPW10132940 Whirlpool Dishwasher Screw
25	RETAINER,GLASS CLIP (BISCUIT)
25	Clip, Retainer (White Model)
25	Clip, Retainer (Black Model)
