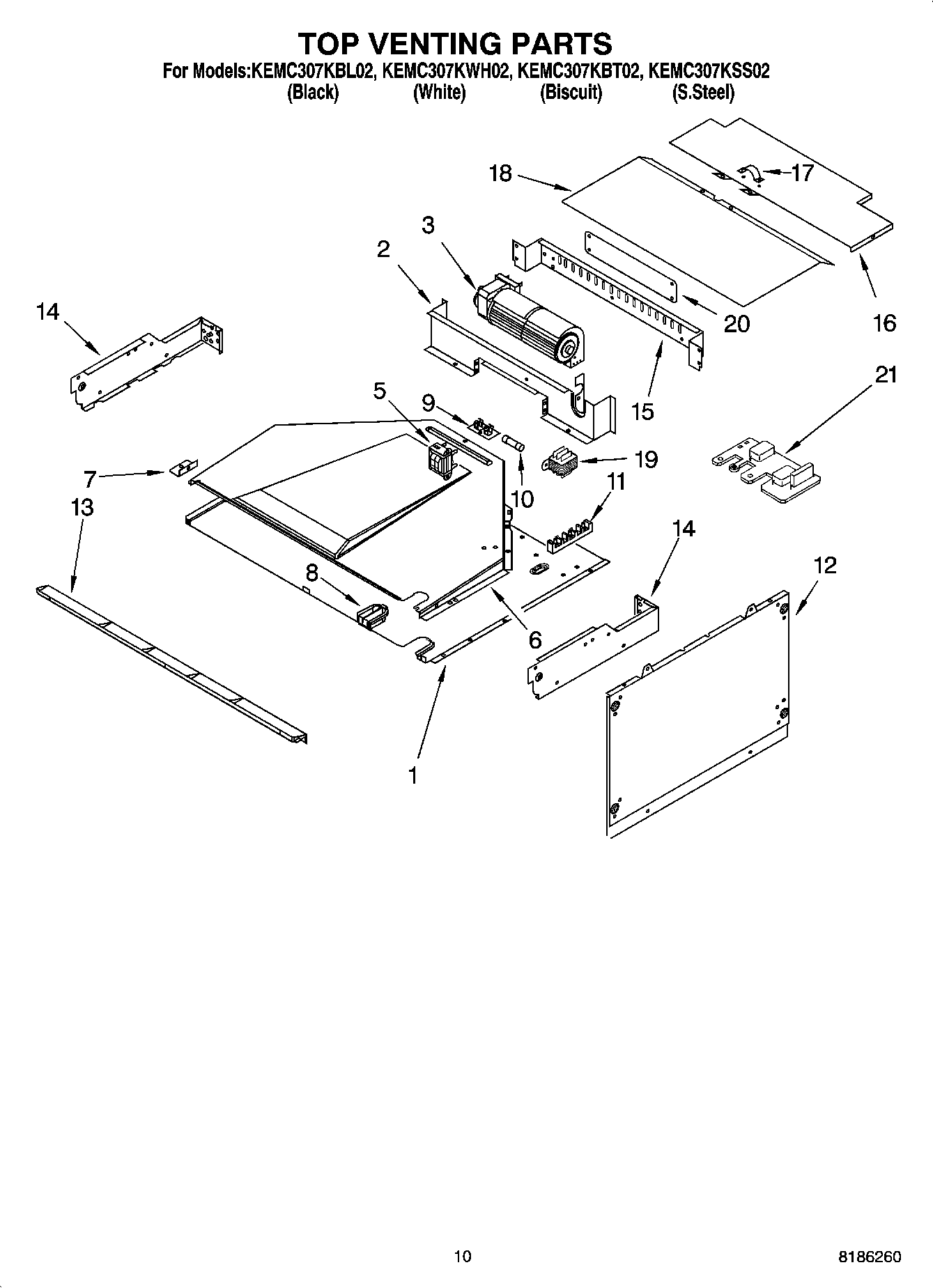

KEMC307KSS02 08 – TOP VENTING PARTS

KEMC307KSS02 08 – TOP VENTING PARTS

Written by

in

KEMC307KSS02 08 – TOP VENTING PARTS

Products

PositionProduct
NOTE: The screws and nuts required to attach a part are listed immediately following that part.
1Cover, Top
2Baffle, Blower
2489392 Whirlpool Refrigerator Screw
3Blower
5WP9760588 Whirlpool Transformer
6Exhaust Duct
7Bracket, Duct
8Grommet
8WP112432 Whirlpool Nut Assembly
94454949 Whirlpool Oven Fuse Block
9WP4449154 Whirlpool Screw
10WPW10017410 Whirlpool Fuse
11Screw
11WP8203546 Whirlpool Terminal Block
12Side, Combo
13WP4450038 Whirlpool Screw
139760677 Whirlpool Oven Vent Deflector
14W10790240 Whirlpool Side Assembly Complete
14W10755214 Whirlpool Side Complete
15Back, Control
16WP4450551 Whirlpool Top Cabinet
174448664 Whirlpool Oven Mounting Bracket
18WP4452367 Whirlpool Top Cover
19Transformer, Control Panel
20Plate, Cover
20WP4449809 Whirlpool Screw
21Suppressor
