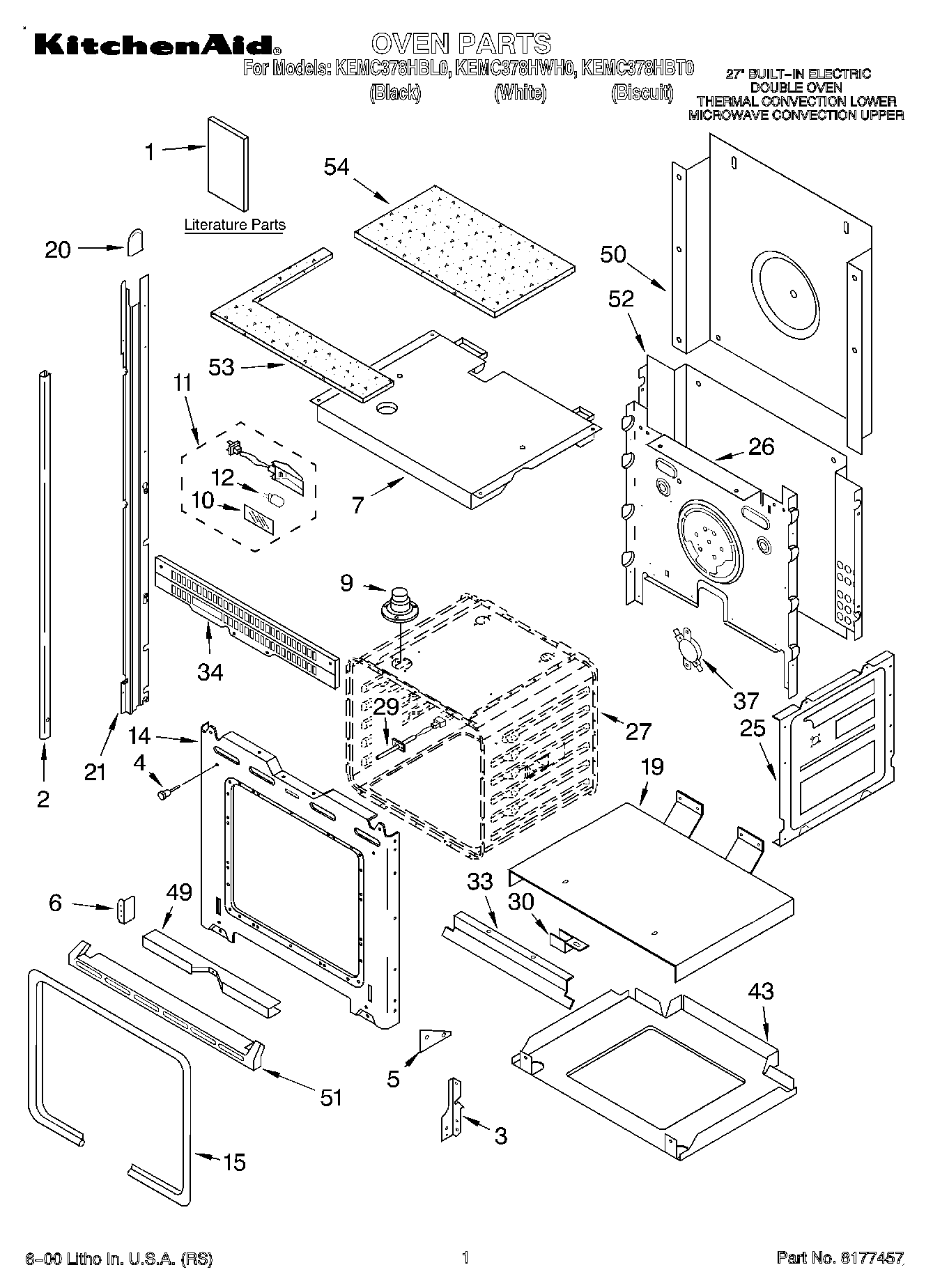

KEMC378HWH0 01 – OVEN, LITERATURE

KEMC378HWH0 01 – OVEN, LITERATURE

Written by

in

KEMC378HWH0 01 – OVEN, LITERATURE

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (Tech Sheet (Oven))
1Literature Parts (Guide, Easy Use (Microwave))
1Literature Parts (Use & Care Guide (Microwave))
1Literature Parts (Cooking Guide (Lable))
1Literature Parts (Installation Instructions)
1Literature Parts (Cookbook (T/C Oven))
1Literature Parts (Easy Set Guide)
1Literature Parts (Use & Care Guide (Oven))
2Trim, Side Right Hand (Black)
2Trim, Side (White)
2Trim, Side Right Hand (White)
2WP8281236 Whirlpool Screw
2Trim, Side Right Hand (Biscuit)
2(Trim, Side Left Hand) (Biscuit)
2(Trim, Side Left Hand) (Black)
2(Trim, Side Left Hand) (White)
3Reciever, Hinge (Right Hand)
3Reciever, Hinge (Left Hand)
44448520 Whirlpool Oven Bumper
5WP4455509 Whirlpool Support Bracket
6Bracket, Support
7Top, Chassis
9W10861715 Whirlpool Vent Tube
10Lens, Light
11WP4448972 Whirlpool Oven Light
114449748 Whirlpool Oven Screw
12WP4452164 Whirlpool 12V 5W Halogen Light Bulb
14Screw
14Frame, Front
15WP4455381 Whirlpool Door Gasket
19Support, Insulation
20Cap, Spacer
21814376 Whirlpool Oven Rail Mount
21814375 Whirlpool Oven Rail Mount
21WP4448444 Whirlpool Grommet
25Side, Chassis (R.H. & L.H.)
26Back, Chassis
27Liner, Oven (Not a Serviceable Part)
29Sensor
30WPL 4449845
33Deflector, Vent
34Vent, Control Panel (Stainless Steel Model)
34WP4450038 Whirlpool Screw
37WP9759243 Whirlpool Thermostat
43Base, Chassis
49WP4449154 Whirlpool Screw
49WP4448933 Whirlpool Retainer
50WP4451747 Whirlpool Rear Cover
50WP4449809 Whirlpool Screw
51WPL 4455446
51Screw, (2)
514452152 Whirlpool Oven Mounting Bracket
51Trim, Bottom (White)
51Trim, Bottom (Black)
52WPL 4451755
53WPL 4452492
54WPL 4449315
54WPL 4452491
54WPL 4450364
