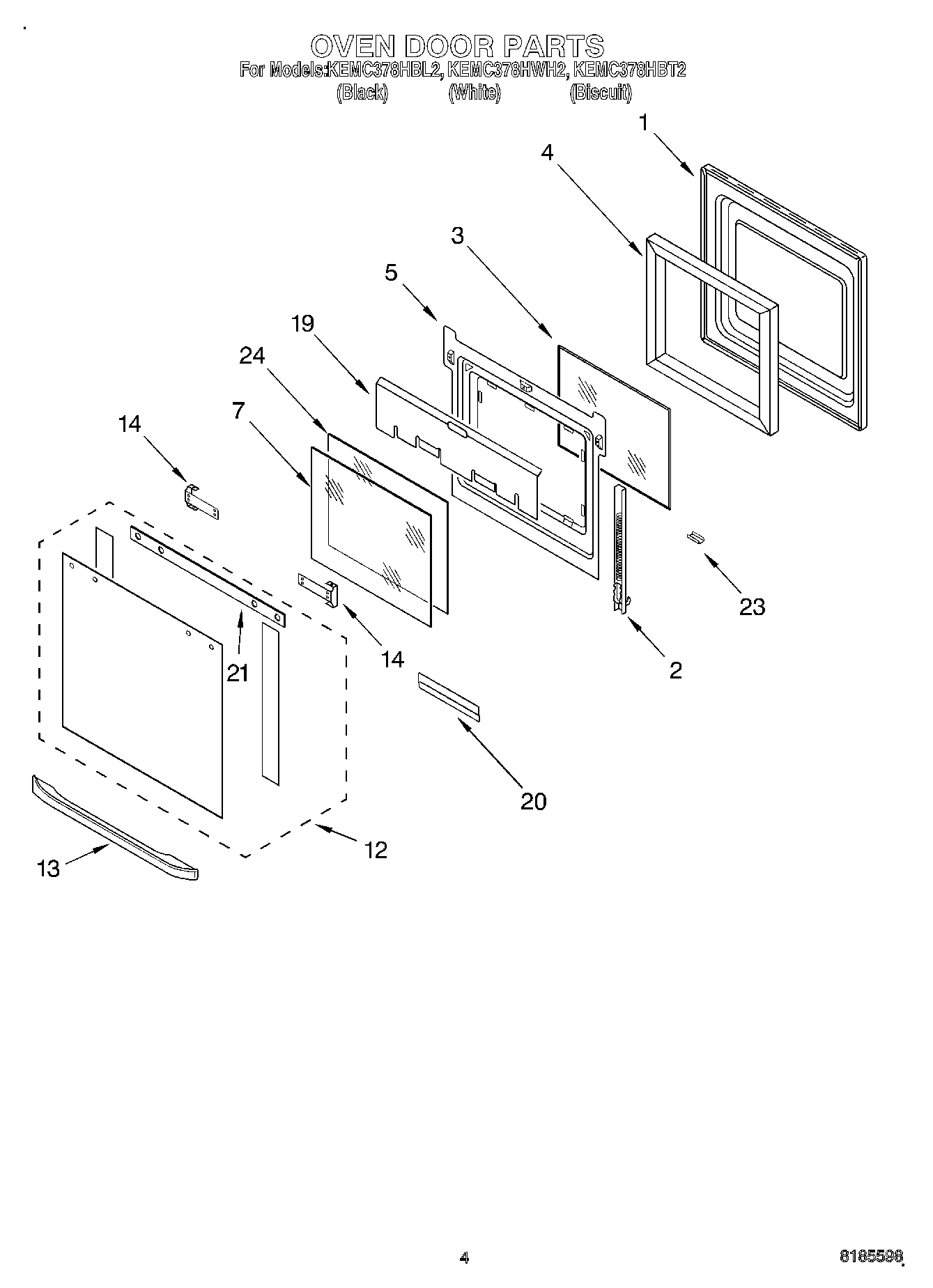

KEMC378HWH2 03 – OVEN DOOR

KEMC378HWH2 03 – OVEN DOOR

Written by

in

KEMC378HWH2 03 – OVEN DOOR

Products

PositionProduct
1Door Liner
2WP4455525 Whirlpool Oven Door Hinge
2WP4449743 Whirlpool Screw
3WP4449253 Whirlpool Glass Window
4Insulation, Sides
5Retainer, Glass
7WP4449257 Whirlpool Door Glass
12Glass, Outer (White)
12Glass, Outer (Black)
12Door Glass, Assy (Biscuit)
13Handle, Door (Black)
13Handle, Door (Biscuit)
13Handle, Door (White)
14WP3400832 Whirlpool Screw
144455803 Whirlpool Oven Bracket
14Bracket, Handle Stainless Steel Model (Left Hand)
19Shield, Heat
20Retainer, Glass
20WP4449809 Whirlpool Screw
21Seal, Top
23Clip, Retainer (White Model)
23Clip, Retainer (Black Model)
24Glass, Inner
