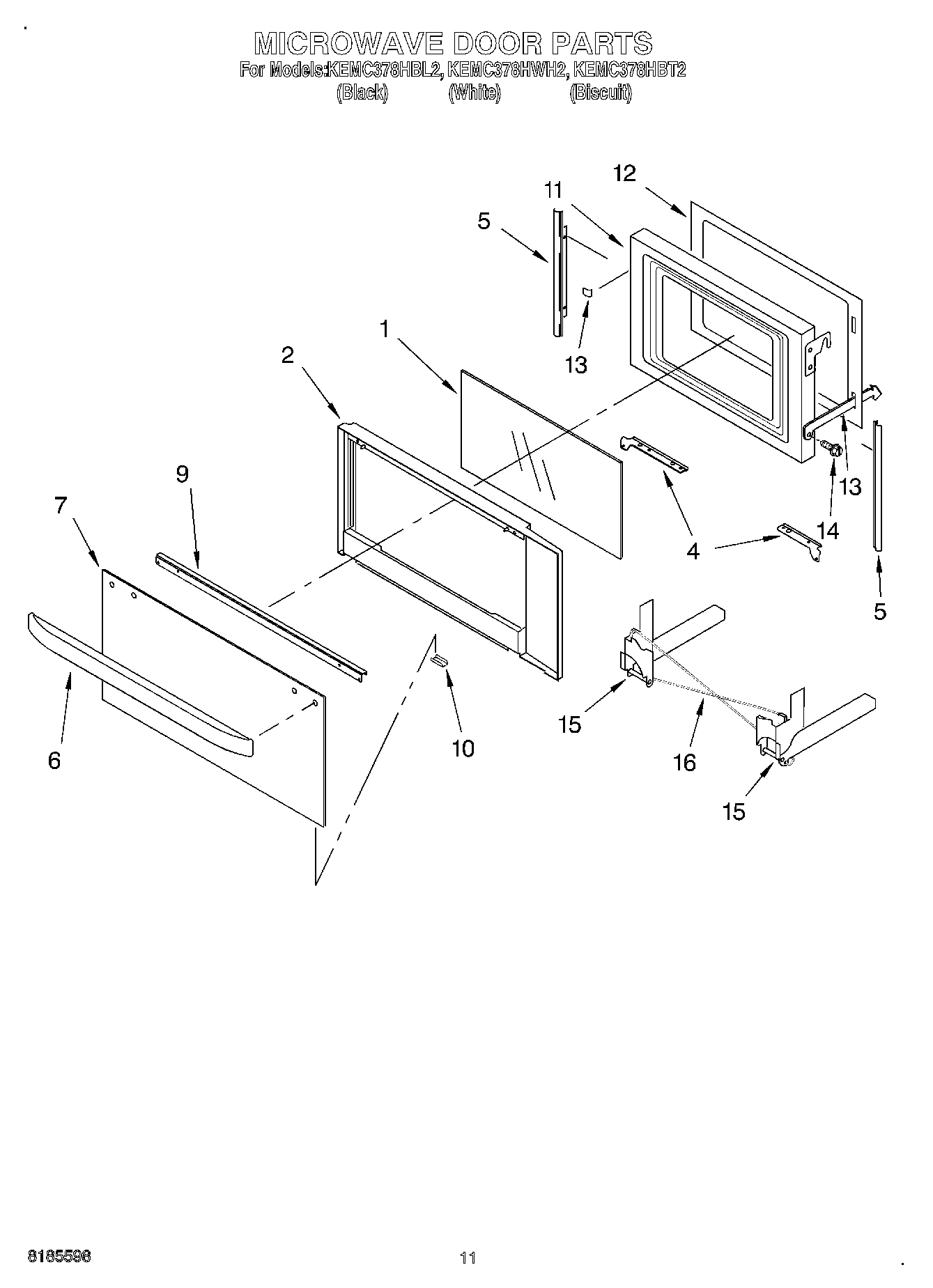

KEMC378HWH2 09 – MICROWAVE DOOR, OPTIONAL
Written by
in
KEMC378HWH2 09 – MICROWAVE DOOR, OPTIONAL
Products
Position
Product
1
Glass, Middle
2
Tape, Foam
2
Frame, Door
2
WP4450038 Whirlpool Screw
4
Bracket, Mounting (Right Side)
4
Bracket, Mounting (Left Side)
5
Filler, Side
6
Handle, Door (Black)
6
Handle, Door (White)
6
Handle, Door (Biscuit)
7
Glass, Outer (Black)
7
Glass, Outer (White)
7
Glass, Outer (Biscuit)
9
Bracket, Handle
9
WPW10132940 Whirlpool Dishwasher Screw
10
Clip, Retainer (White Model)
10
Clip, Retainer (Black Model)
11
Plate, Door
12
Frame, Inner
13
Strap, Door
14
Screw
15
WP4375323 Whirlpool Microwave Door Hinge
15
WP4375324 Whirlpool Microwave Door Hinge
16
Wire (14 Ga. 150 c Blue)
16
WP261869 Whirlpool Microwave Paint
16
Wire (14 Ga. 150 c Brown)
16
261900 Whirlpool Microwave Spray
16
4450950 Whirlpool Oven Conduit
16
WPL 591014
16
1
16
18 Ga. 80~c Rating (Red)
16
Wire (12 Ga. 150 c Black)
16
Wire (14 Ga. 150 c Yellow)
16
Wire (14 Ga. 150 c Orange)
16
Wire (14 Ga. 150 c Green)
16
Wire (14 Ga. 200 c Brown)
16
242831 Whirlpool Oven Wire
16
WP482338 Whirlpool Refrigerator Adhesive
16
72032 Whirlpool Touch Up Paint Black
16
285006 Whirlpool Spray
16
WPW10339879 Whirlpool Wire Tie
16
4450800 Whirlpool Oven Screw
16
Wire, 25“ Roll (White 14 GA.)
16
Wire, 25` Roll (Red 14 Ga.)
16
Wire, 25` Roll (Black 14 Ga.)
16
WP4449809 Whirlpool Screw
16
72017 Whirlpool Appliance Touch-Up Paint White
16
814381 Whirlpool Pin
16
WP4451008 Whirlpool Microwave Spring
16
16515 Whirlpool Clip
16
Spacer, Harness
16
4452400 Whirlpool Microwave Wire Harness
16
WPL 4455732
16
WPL 4452239
16
Ground (M/W)
16
Filler Kit (AL)
16
Filler Kit (WH)
16
Filler Kit (BL)
16
WP4448950 Whirlpool Screw
16
350930 Whirlpool White Spray Paint
←
