KEMC378KBL01 09 – MICROWAVE DOOR PARTS, OPTIONAL PARTS

KEMC378KBL01 09 – MICROWAVE DOOR PARTS, OPTIONAL PARTS

Written by

in

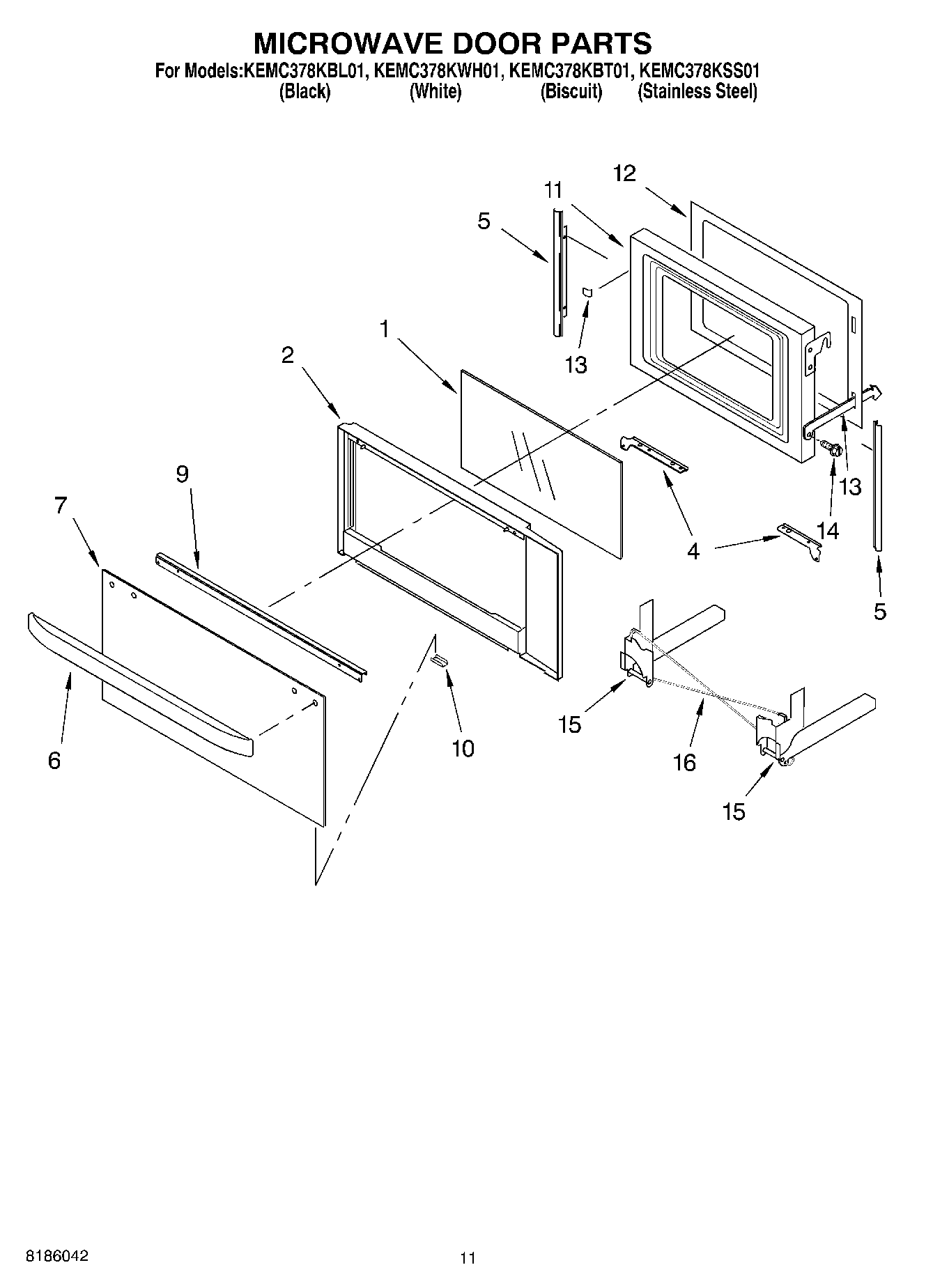

KEMC378KBL01 09 – MICROWAVE DOOR PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI85736A6
18 Ga. 80~c Rating (Red)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
WP261869 Whirlpool Microwave Paint
242831 Whirlpool Oven Wire
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 200 c Brown)
1
WPL ARI85735A2
WPL ARI85734A6
WPL ARI85733A6
8301909 Whirlpool Oven Wire Harness
WPL 8301923
261900 Whirlpool Microwave Spray
WPL ARI85737A1
4450950 Whirlpool Oven Conduit
WPL 591014
Spacer, Harness
WPW10339879 Whirlpool Wire Tie
Filler Kit (WH)
Filler Kit (AL)
Ground (M/W)
4452400 Whirlpool Microwave Wire Harness
WP4448950 Whirlpool Screw
Wire, 25` Roll (Red 14 Ga.)
4450800 Whirlpool Oven Screw
Wire, 25“ Roll (White 14 GA.)
Wire, 25` Roll (Black 14 Ga.)
WP4449809 Whirlpool Screw
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
16515 Whirlpool Clip
WP482338 Whirlpool Refrigerator Adhesive
814381 Whirlpool Pin
350930 Whirlpool White Spray Paint
72017 Whirlpool Appliance Touch-Up Paint White
Filler Kit (BL)
1Glass, Middle
2Tape, Foam
2Frame, Door
2WP4450038 Whirlpool Screw
4Bracket, Mounting (Left Side)
4Bracket, Mounting (Right Side)
5Filler, Side
6Handle, Door (Black)
6Handle, Door (White)
6Handle, Door (Biscuit)
6Door Handle (Stainless Steel)
7Glass, Outer (White)
7Glass, Outer (Stainless)
7Glass, Outer (Biscuit)
7Glass, Outer (Black)
9Bracket, Handle
9WPW10132940 Whirlpool Dishwasher Screw
10Clip, Retainer (Black Model)
10Clip, Retainer (White Model)
11Plate, Door
12Frame, Inner
13Strap, Door
14Screw
15WP4375324 Whirlpool Microwave Door Hinge
15WP4375323 Whirlpool Microwave Door Hinge
16WP4451008 Whirlpool Microwave Spring
