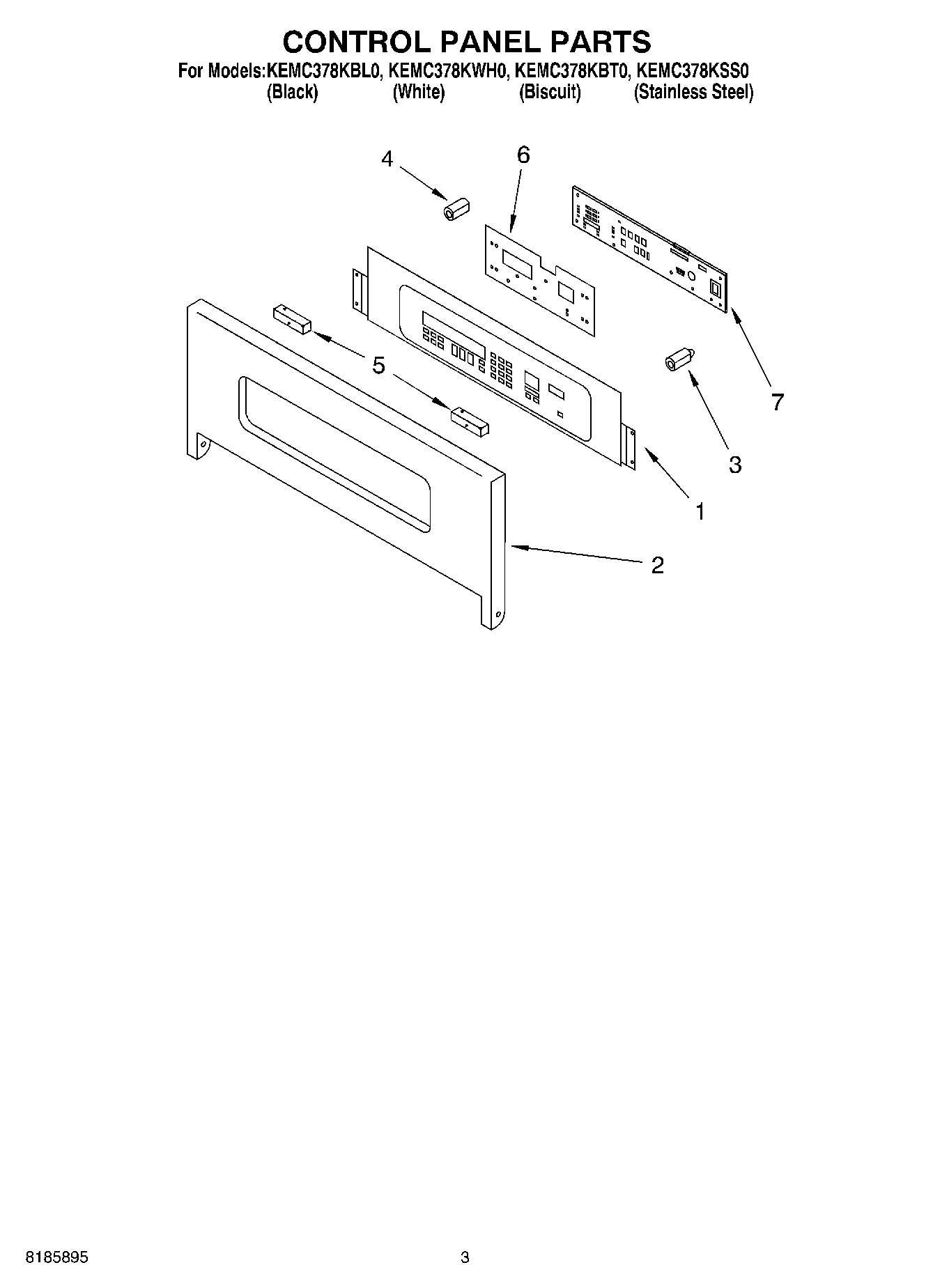

KEMC378KBT0 02 – CONTROL PANEL

Products

PositionProduct
1Switch, Membrane (White)
1Switch, Membrane (Biscuit)
1Switch, Membrane (Black)
1Membrane Switch
2Panel, Control
2Panel, Control (Black)
2Panel, Control (White)
2Panel, Control (Biscuit)
3Insulation, Board
4Insulation, Board Support
5Spacer, Foam
6Insulator, Dialectric
7Screw
7WP3400832 Whirlpool Screw
7Microcomputer
