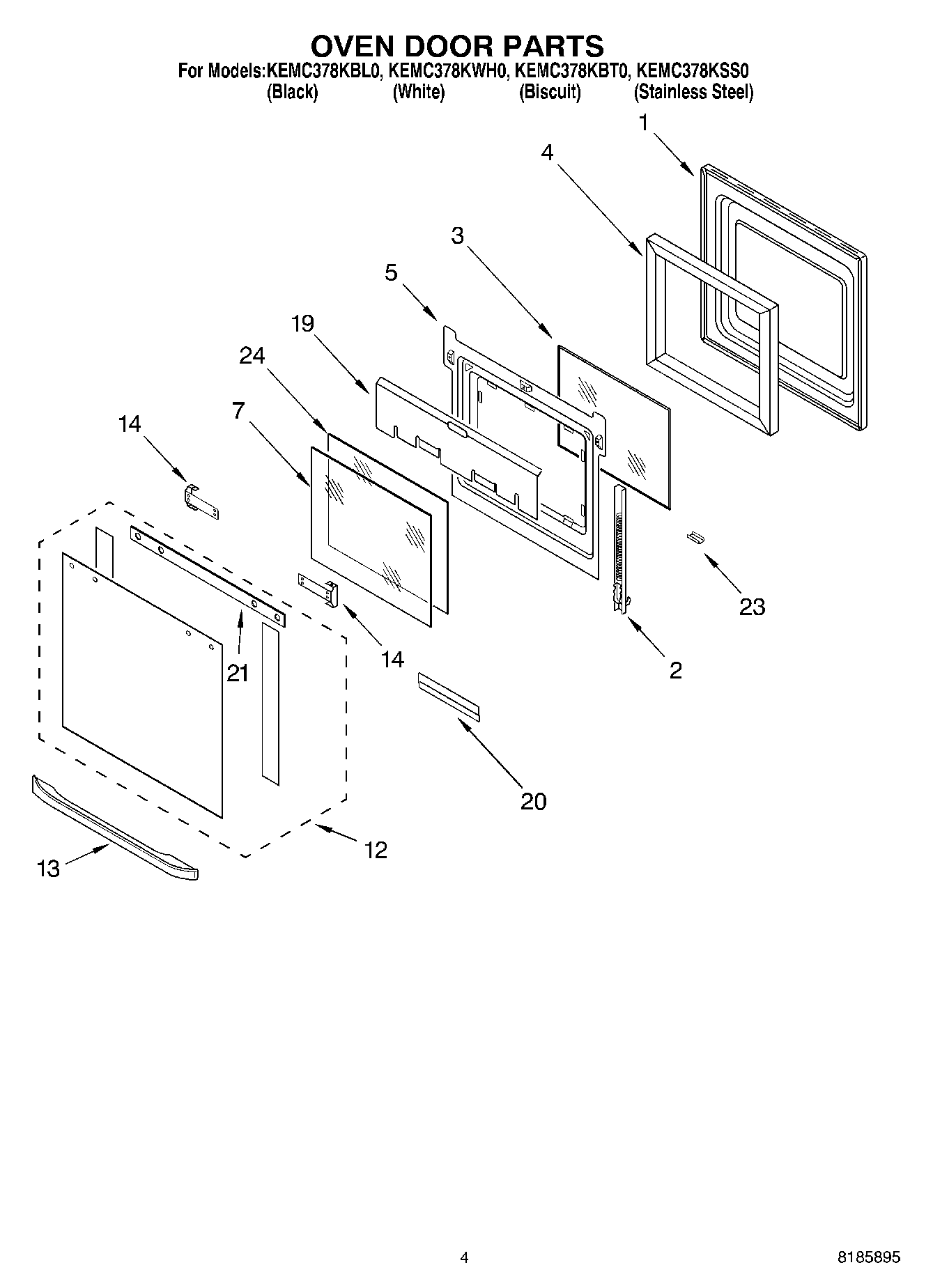

KEMC378KBT0 03 – OVEN DOOR

Products

Position	Product
1	Door Liner
2	WP9760572 Whirlpool Door Hinge
2	WP9760571 Whirlpool Door Hinge
2	HINGE-DOOR LH/SS DOOR SPRING
2	HINGE-DOOR
2	WP4449743 Whirlpool Screw
3	WP4449253 Whirlpool Glass Window
4	Insulation, Sides
5	Retainer, Glass
7	WP4449257 Whirlpool Door Glass
12	WP4452315 Whirlpool Door Glass
12	Glass, Outer (White)
12	Glass, Outer (Black)
12	Door Glass, Assy (Biscuit)
13	Handle, Door (Black)
13	Handle, Door (White)
13	Handle, Door (Biscuit)
13	Door Handle (Stainless Steel)
14	4455803 Whirlpool Oven Bracket
14	Screw
14	Bracket, Handle Stainless Steel Model (Left Hand)
19	Shield, Heat
20	WP4449809 Whirlpool Screw
20	Retainer, Glass
21	Seal, Top
23	Clip, Retainer (White Model)
23	Clip, Retainer (Black Model)
24	Glass, Inner
