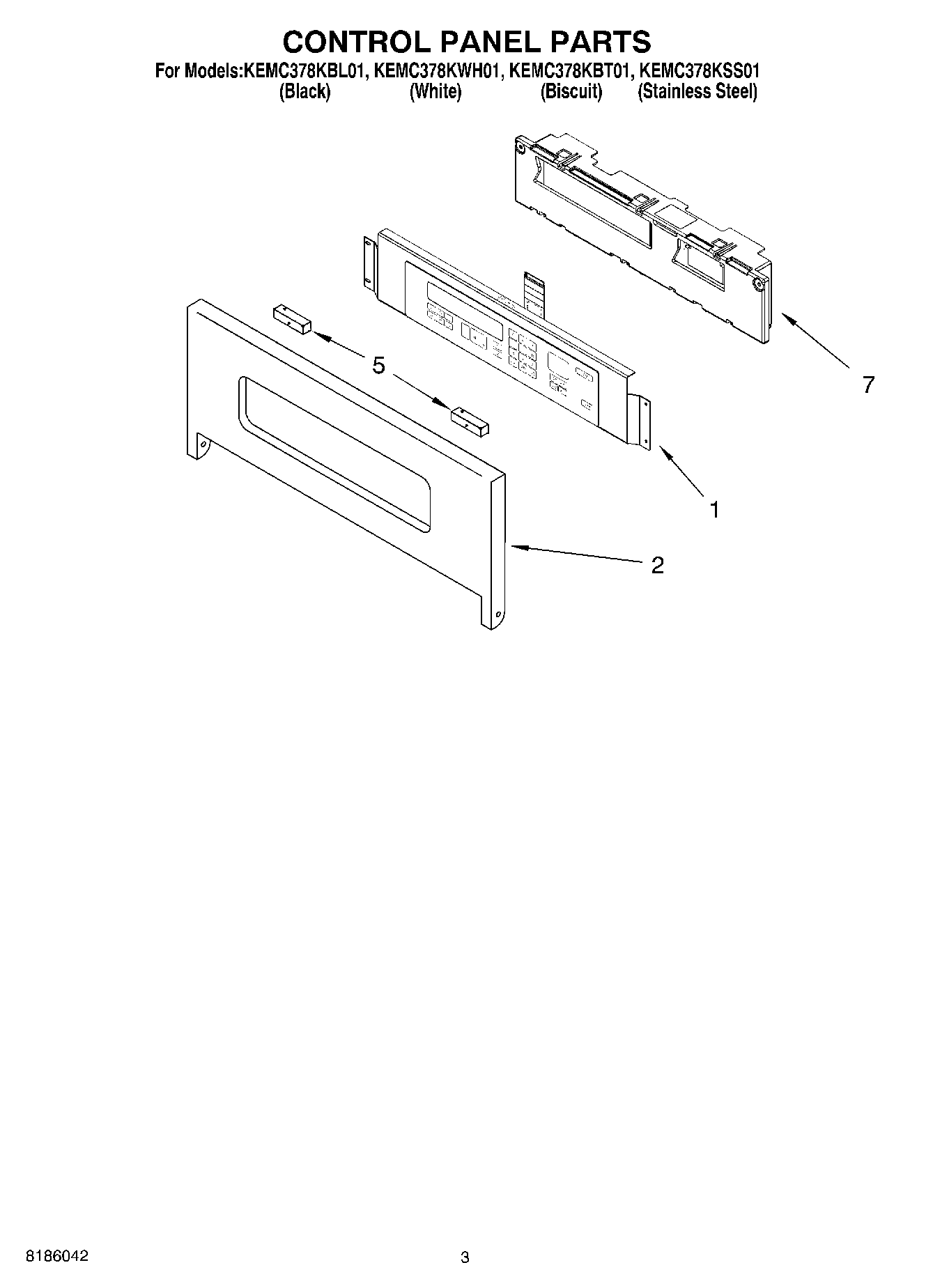

KEMC378KBT01 02 – CONTROL PANEL PARTS

Products

Position	Product
	NOTE: The screws and nuts required to attach a part are listed immediately following that part.
1	Switch, Membrane (White)
1	Switch, Membrane (Biscuit)
1	Switch, Membrane (Black)
1	Switch, Membrane (Stainless Steel)
2	Panel, Control (Biscuit)
2	Panel, Control (White)
2	Panel, Control (Black)
2	Panel, Control
5	Spacer, Foam
7	WP4449745 Whirlpool Screw
7	Microcomputer
