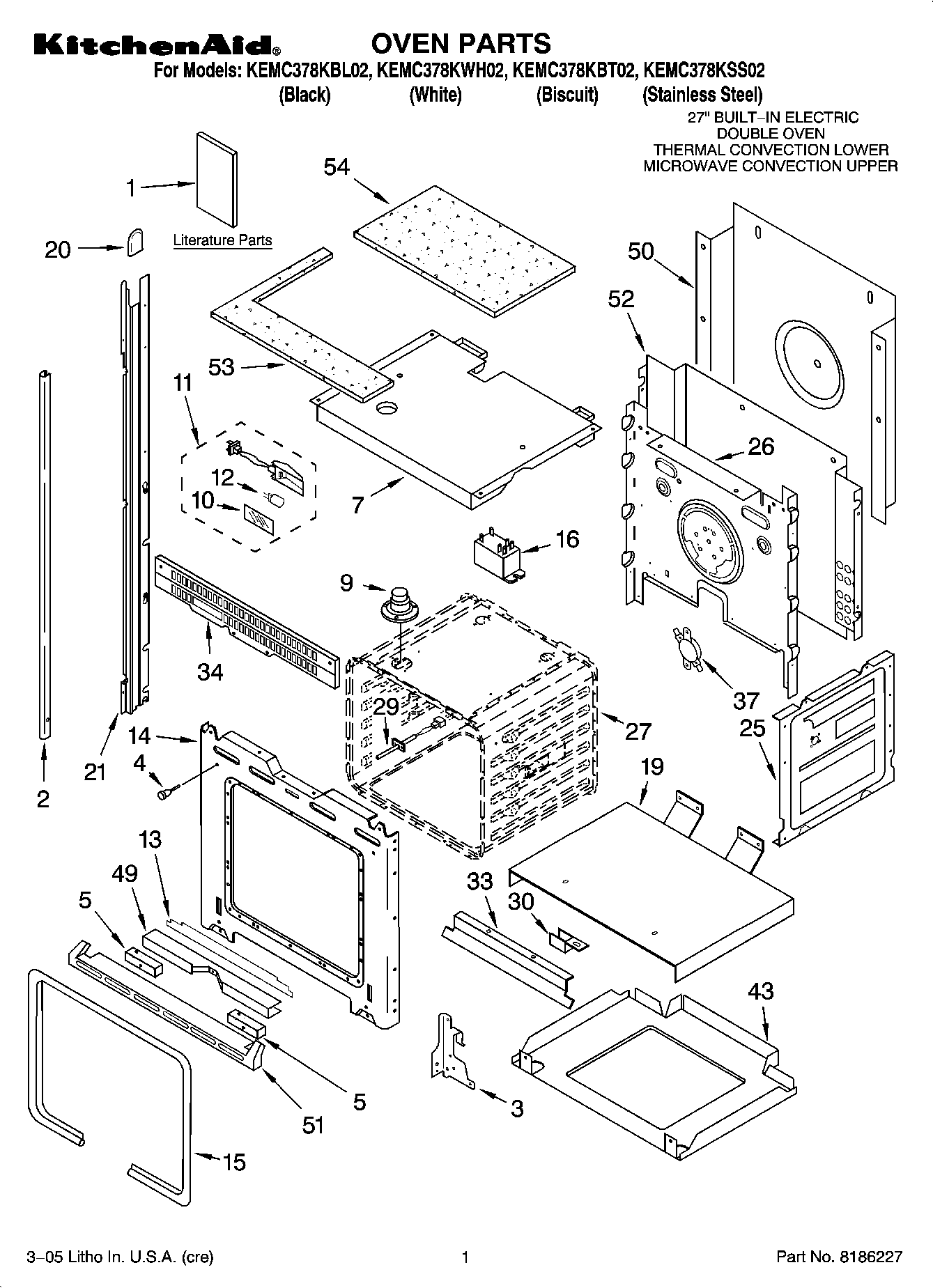

KEMC378KBT02 01 – OVEN PARTS

KEMC378KBT02 01 – OVEN PARTS

Written by

in

KEMC378KBT02 01 – OVEN PARTS

Products

PositionProduct
1Easy Set Guide
1Installation Instructions
1Cook Guide Label
1Safe Cooking Tips
1Use & Care Guide
1Guide-Easy Use M/W
1Tech Sheet (Oven)
1Use & Care Guide (Oven)
1Cookbook
2(Trim, Side Left Hand) (Black)
2Trim, Side (LH Stainless Steel)
2Trim, Side Right Hand (Black)
2Trim, Side Right Hand (White)
2(Trim, Side Left Hand) (Biscuit)
2WP8281236 Whirlpool Screw
2(Trim, Side Left Hand) (White)
2Trim, Side (White)
2Trim, Side Right Hand (Biscuit)
2Trim, Side (RH Stainless Steel)
3WP4455605 Whirlpool Left Hand Hinge
3WP4455606 Whirlpool Right Hand Hinge
44448520 Whirlpool Oven Bumper
5Spacer, Foam
7Top, Chassis
9SCREW
9W10861715 Whirlpool Vent Tube
10Lens, Light
114449748 Whirlpool Oven Screw
11WP4448972 Whirlpool Oven Light
12WP4452164 Whirlpool 12V 5W Halogen Light Bulb
13Insulation, Bottom Vent
14Frame, Front
14Screw
15WP4455381 Whirlpool Door Gasket
16WP9752759 Whirlpool Relay
19Support, Insulation
20Cap, Spacer
21WP4448444 Whirlpool Grommet
21814375 Whirlpool Oven Rail Mount
21814376 Whirlpool Oven Rail Mount
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not serviceable)
29WPW10131825 Whirlpool Oven Temperature Sensor
30WPL 4449845
33Deflector, Vent
34WP4450038 Whirlpool Screw
34WP8304106 Whirlpool Oven Vent
37WP9759243 Whirlpool Thermostat
43Base, Chassis
49WP4449154 Whirlpool Screw
49WP4448933 Whirlpool Retainer
50WP4451747 Whirlpool Rear Cover
50WP4449809 Whirlpool Screw
51WPL 4455146
51WPL 4455446
514452152 Whirlpool Oven Mounting Bracket
51Trim, Bottom (Black)
51Trim, Bottom (White)
51WP3400832 Whirlpool Screw
52WPL 4451755
53WPL 4452492
54WPL 4452491
54WPL 4449315
54WPL ARI85775A9
54WPL 4450364
