KEMC378KBT03 09 – MICROWAVE DOOR PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI85787A6
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
WP261869 Whirlpool Microwave Paint
242831 Whirlpool Oven Wire
8303838 Whirlpool Oven Wire Harness
Wire (14 Ga. 150 c Yellow)
18 Ga. 80~c Rating (Red)
Wire (14 Ga. 200 c Brown)
WPL ARI85786A6
WPL ARI85785A5
WPL ARI85784A3
8301909 Whirlpool Oven Wire Harness
WPL 8301923
261900 Whirlpool Microwave Spray
4450950 Whirlpool Oven Conduit
WPL 591014
1
Spacer, Harness
16515 Whirlpool Clip
WP4448950 Whirlpool Screw
Filler Kit (AL)
Filler Kit (WH)
Filler Kit (BL)
Wire, 25“ Roll (White 14 GA.)
4450800 Whirlpool Oven Screw
814381 Whirlpool Pin
350930 Whirlpool White Spray Paint
WP482338 Whirlpool Refrigerator Adhesive
72032 Whirlpool Touch Up Paint Black
Ground (M/W)
285006 Whirlpool Spray
Wire, 25` Roll (Red 14 Ga.)
4452400 Whirlpool Microwave Wire Harness
72017 Whirlpool Appliance Touch-Up Paint White
WPW10339879 Whirlpool Wire Tie
WP4449809 Whirlpool Screw
4392899 Whirlpool Biscuit Touch-Up Paint
4392901 Whirlpool Biscuit Spray Paint
Wire, 25` Roll (Black 14 Ga.)

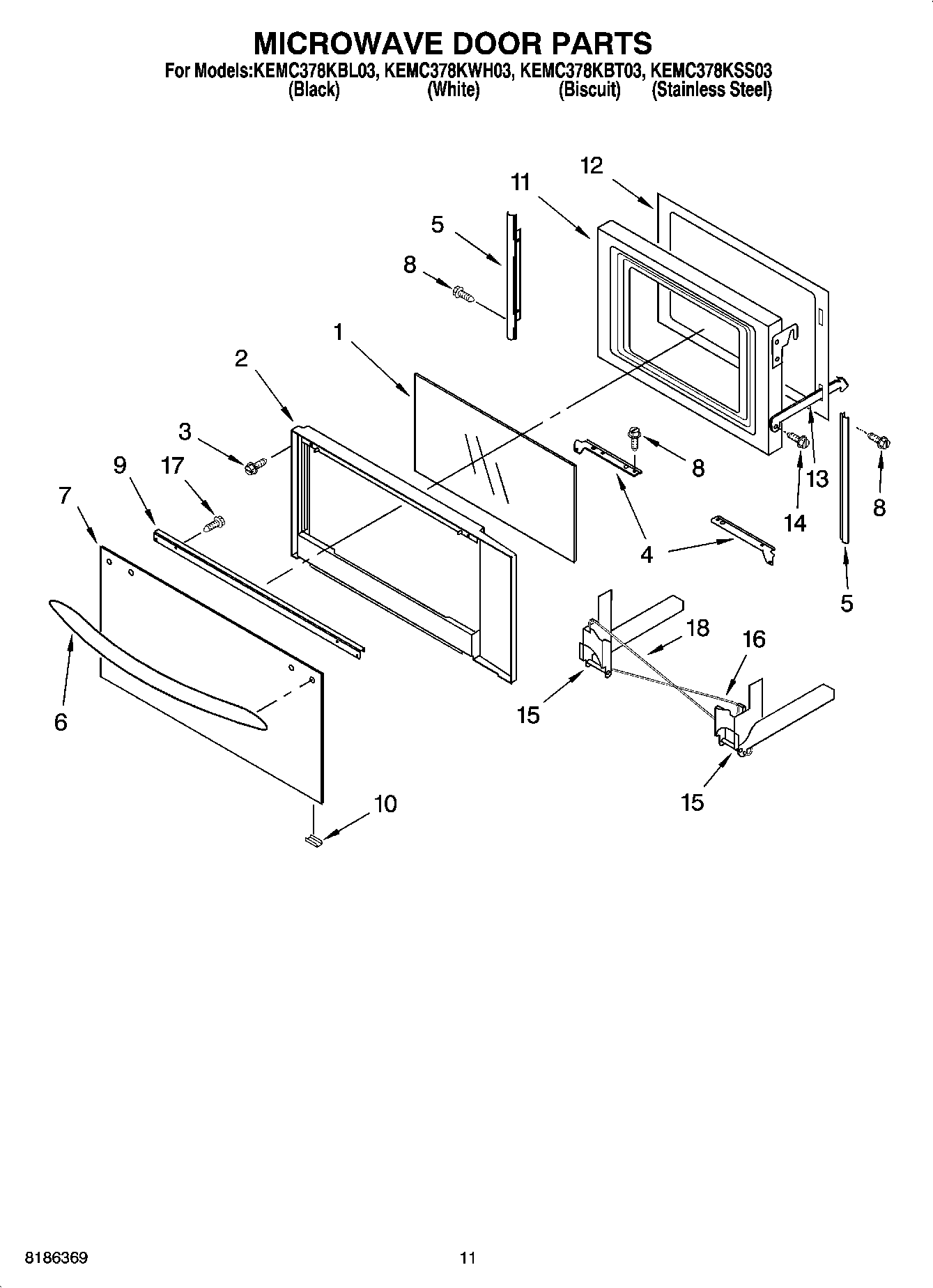

1Glass, Middle
2Frame, Door
3WP4450038 Whirlpool Screw
4Bracket, Mounting (Right Side)
4Bracket, Mounting (Left Side)
5Filler, Side
6Door Handle (Stainless Steel)
6Handle, Door (Biscuit)
6Handle, Door (White)
6Handle, Door (Black)
7Glass, Outer (Biscuit)
7Glass, Outer (Black)
7Glass, Outer (White)
7Glass, Outer (Stainless)
9Bracket, Handle
10Clip, Retainer (White Model)
10Clip, Retainer (Black Model)
11Plate, Door
12Frame, Inner
13Strap, Door
14Screw
15WP4375324 Whirlpool Microwave Door Hinge
15WP4375323 Whirlpool Microwave Door Hinge
16WP4452398 Whirlpool Microwave Door Spring
17WPW10132940 Whirlpool Dishwasher Screw
18WP4452395 Whirlpool Spring Assembly
