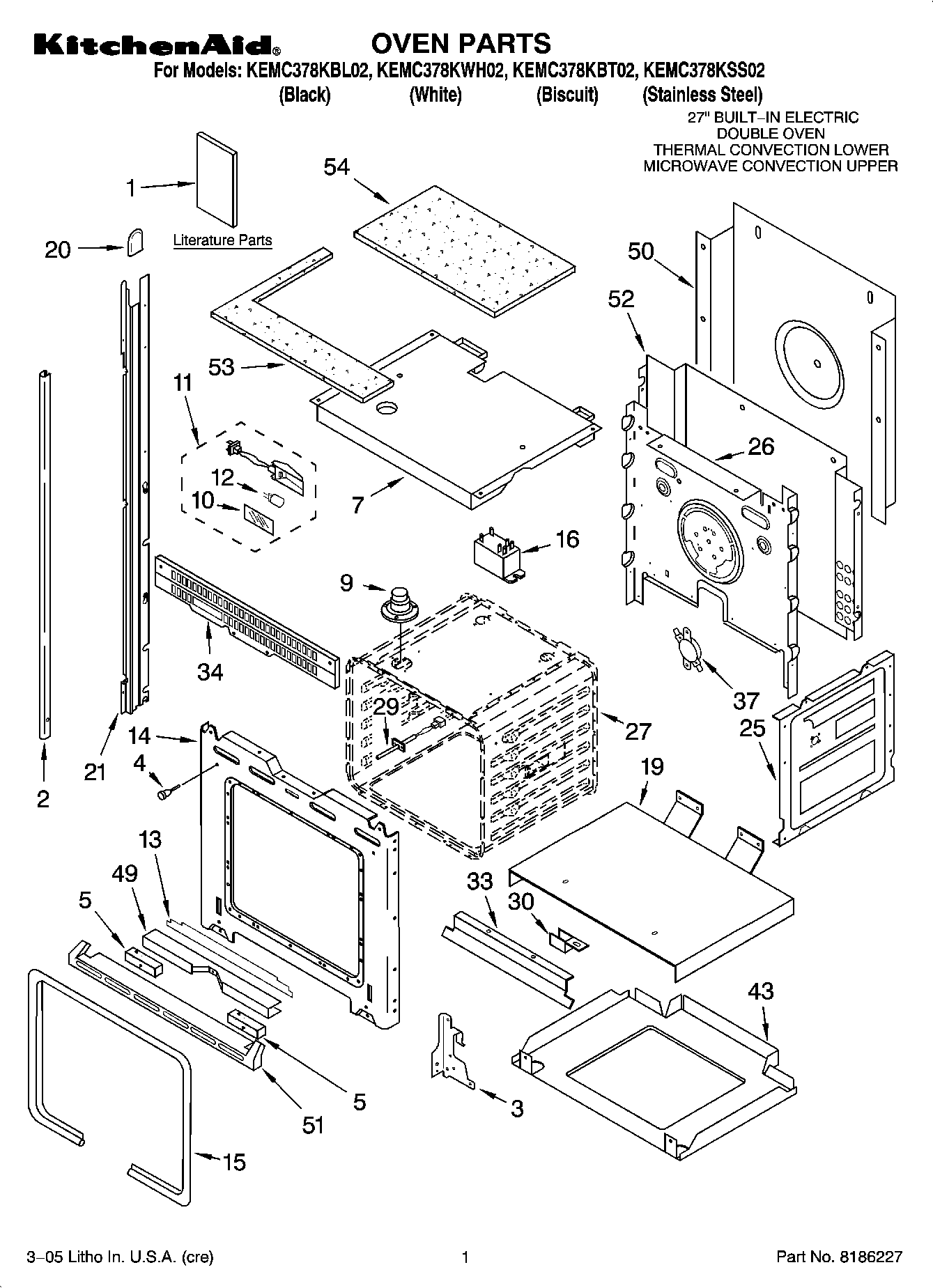

KEMC378KSS02 01 – OVEN PARTS
Written by
in
KEMC378KSS02 01 – OVEN PARTS
Products
Position
Product
1
Use & Care Guide
1
Cookbook
1
Safe Cooking Tips
1
Easy Set Guide
1
Tech Sheet (Oven)
1
Installation Instructions
1
Use & Care Guide (Oven)
1
Cook Guide Label
1
Guide-Easy Use M/W
2
Trim, Side (LH Stainless Steel)
2
(Trim, Side Left Hand) (Black)
2
Trim, Side Right Hand (White)
2
Trim, Side Right Hand (Biscuit)
2
Trim, Side Right Hand (Black)
2
Trim, Side (RH Stainless Steel)
2
(Trim, Side Left Hand) (Biscuit)
2
(Trim, Side Left Hand) (White)
2
Trim, Side (White)
2
WP8281236 Whirlpool Screw
3
WP4455605 Whirlpool Left Hand Hinge
3
WP4455606 Whirlpool Right Hand Hinge
4
4448520 Whirlpool Oven Bumper
5
Spacer, Foam
7
Top, Chassis
9
SCREW
9
W10861715 Whirlpool Vent Tube
10
Lens, Light
11
WP4448972 Whirlpool Oven Light
11
4449748 Whirlpool Oven Screw
12
WP4452164 Whirlpool 12V 5W Halogen Light Bulb
13
Insulation, Bottom Vent
14
Frame, Front
14
Screw
15
WP4455381 Whirlpool Door Gasket
16
WP9752759 Whirlpool Relay
19
Support, Insulation
20
Cap, Spacer
21
814376 Whirlpool Oven Rail Mount
21
814375 Whirlpool Oven Rail Mount
21
WP4448444 Whirlpool Grommet
25
W10782197 Whirlpool Side Panel
26
Back, Chassis
27
Liner, Oven (Not serviceable)
29
WPW10131825 Whirlpool Oven Temperature Sensor
30
WPL 4449845
33
Deflector, Vent
34
WP4450038 Whirlpool Screw
34
WP8304106 Whirlpool Oven Vent
37
WP9759243 Whirlpool Thermostat
43
Base, Chassis
49
WP4449154 Whirlpool Screw
49
WP4448933 Whirlpool Retainer
50
WP4451747 Whirlpool Rear Cover
50
WP4449809 Whirlpool Screw
51
4452152 Whirlpool Oven Mounting Bracket
51
Trim, Bottom (Black)
51
Trim, Bottom (White)
51
WPL 4455146
51
WP3400832 Whirlpool Screw
51
WPL 4455446
52
WPL 4451755
53
WPL 4452492
54
WPL 4452491
54
WPL 4449315
54
WPL 4450364
54
WPL ARI85811A5
←
