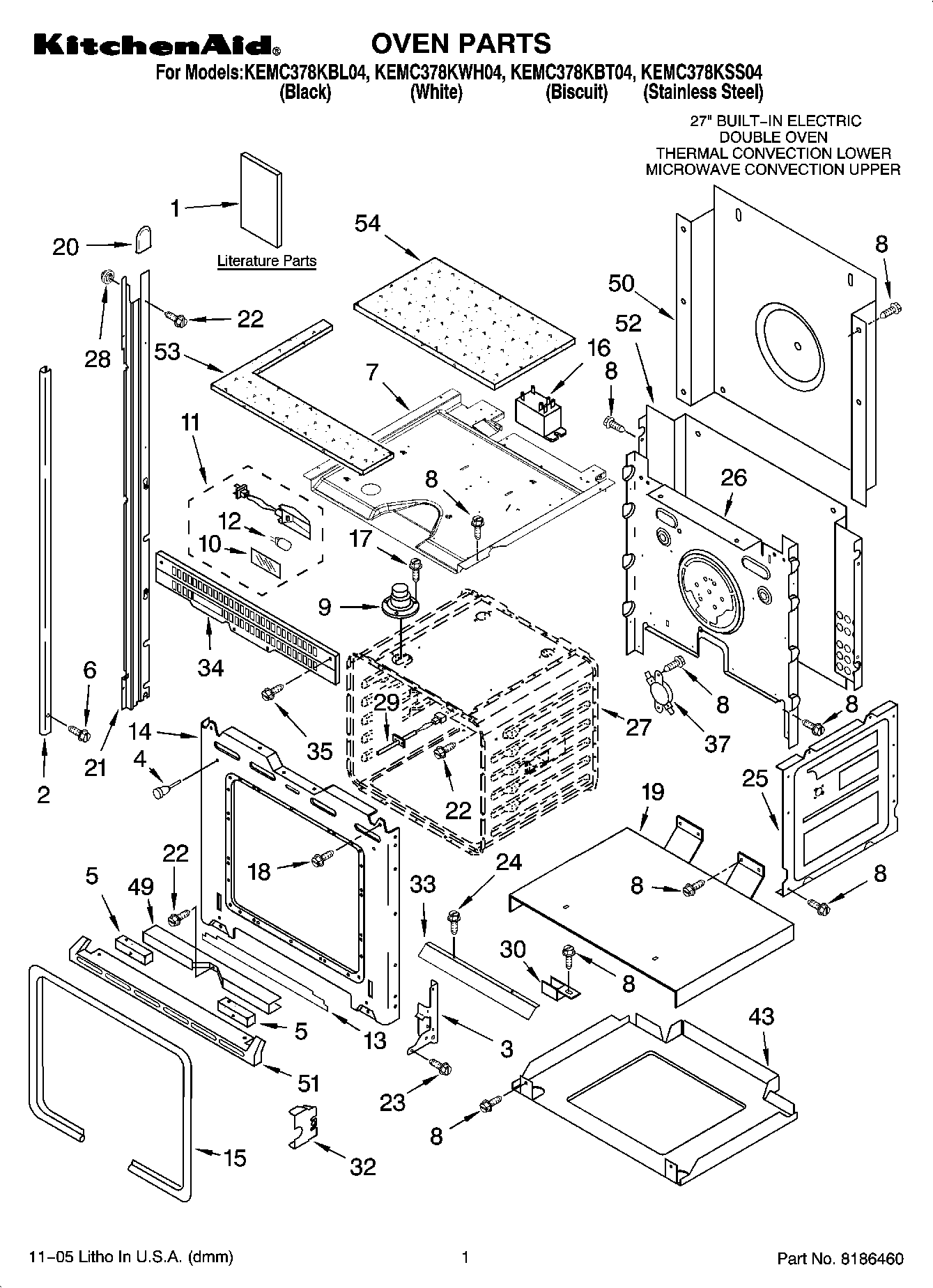

KEMC378KSS04 01 – OVEN PARTS

KEMC378KSS04 01 – OVEN PARTS

Written by

in

KEMC378KSS04 01 – OVEN PARTS

Products

PositionProduct
1Easy Set Guide
1Safe Cooking Tips (French)
1Tech Sheet (Oven)
1Cook Guide Label
1Use & Care Guide
1Use & Care Guide (Oven)
1Guide-Easy Use M/W
1Installation Instructions
1Safe Cooking Tips
2Trim, Side Right Hand (White)
2(Trim, Side Left Hand) (Biscuit)
2Trim, Side (LH Stainless Steel)
2Trim, Side Right Hand (Biscuit)
2(Trim, Side Left Hand) (Black)
2Trim, Side Right Hand (Black)
2(Trim, Side Left Hand) (White)
2Trim, Side (RH Stainless Steel)
3WP4455606 Whirlpool Right Hand Hinge
3WP4455605 Whirlpool Left Hand Hinge
44448520 Whirlpool Oven Bumper
5Spacer, Foam
6Trim, Side (White)
6WP8281236 Whirlpool Screw
7Top, Chassis
8WP4449809 Whirlpool Screw
9W10861715 Whirlpool Vent Tube
10Lens, Light
11WP4448972 Whirlpool Oven Light
12WP4452164 Whirlpool 12V 5W Halogen Light Bulb
13Insulation, Bottom Vent
14Frame, Front
15WP4455381 Whirlpool Door Gasket
16WP9752759 Whirlpool Relay
17SCREW
18Screw
19Support, Insulation
20Cap, Spacer
21814376 Whirlpool Oven Rail Mount
21814375 Whirlpool Oven Rail Mount
22WP4449154 Whirlpool Screw
23WP4449743 Whirlpool Screw
24WP4450038 Whirlpool Screw
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not serviceable)
28WP4448444 Whirlpool Grommet
29WPW10131825 Whirlpool Oven Temperature Sensor
30WPL 4449845
324452152 Whirlpool Oven Mounting Bracket
33Deflector, Vent
34WP8304106 Whirlpool Oven Vent
35WP3400832 Whirlpool Screw
37WP9759243 Whirlpool Thermostat
43Base, Chassis
49WP4448933 Whirlpool Retainer
50WP4451747 Whirlpool Rear Cover
51Trim, Bottom (Black)
51WPL 4455146
51WPL 4455446
51Trim, Bottom (White)
52WPL 4451755
53WPL 4452492
54WPL 4449315
54WPL 4452491
54WPL 4450364
54WPL ARI85825A5
