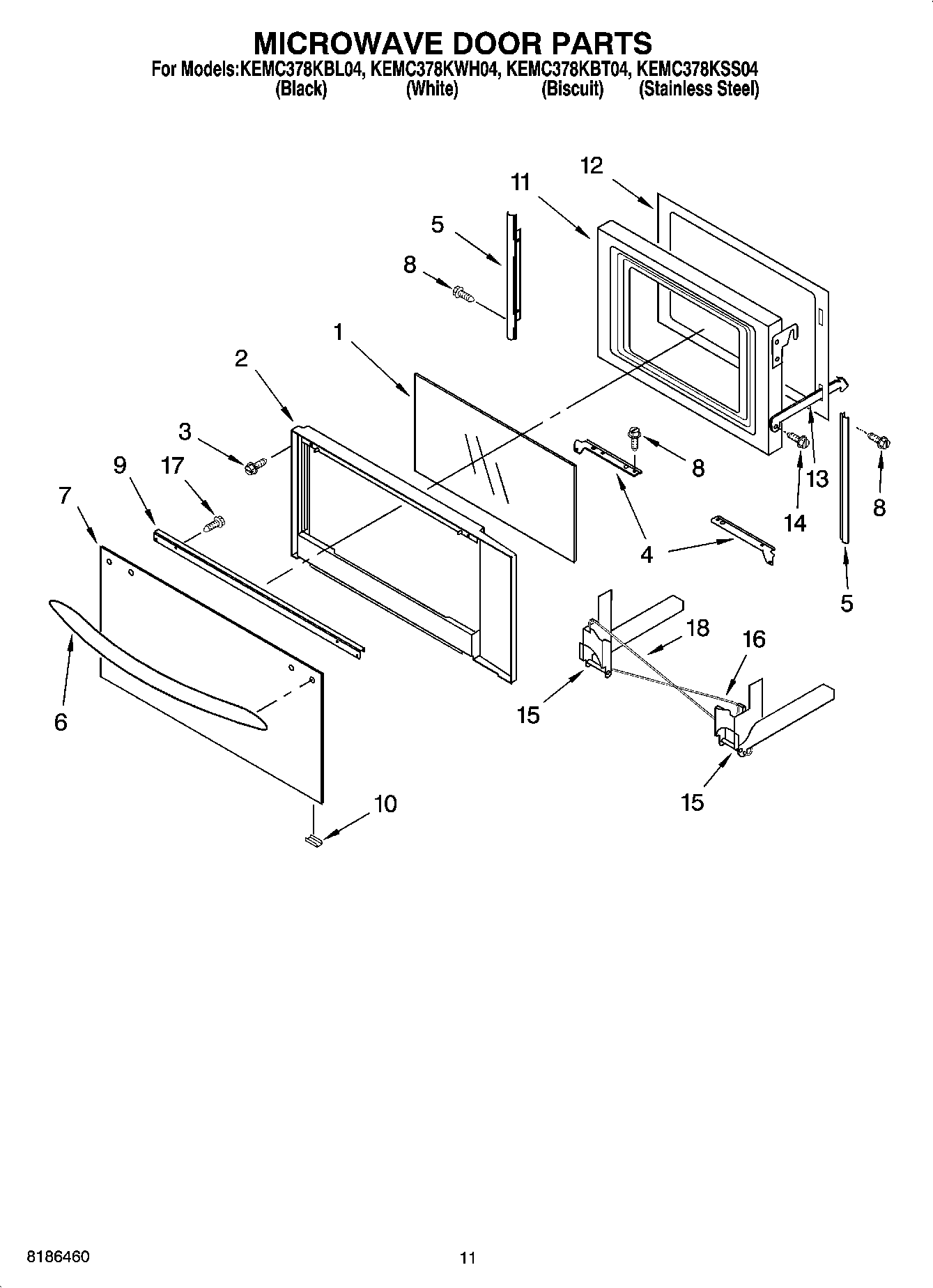

KEMC378KSS04 09 – MICROWAVE DOOR PARTS, OPTIONAL PARTS

KEMC378KSS04 09 – MICROWAVE DOOR PARTS, OPTIONAL PARTS

Written by

in

KEMC378KSS04 09 – MICROWAVE DOOR PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI85830A5
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
WP261869 Whirlpool Microwave Paint
242831 Whirlpool Oven Wire
8303838 Whirlpool Oven Wire Harness
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 200 c Brown)
WPL ARI85829A1
WPL ARI85828A8
WPL ARI85827A5
8301909 Whirlpool Oven Wire Harness
WPL 8301923
261900 Whirlpool Microwave Spray
4450950 Whirlpool Oven Conduit
WPL 591014
16515 Whirlpool Clip
4452400 Whirlpool Microwave Wire Harness
72017 Whirlpool Appliance Touch-Up Paint White
814381 Whirlpool Pin
WP482338 Whirlpool Refrigerator Adhesive
72032 Whirlpool Touch Up Paint Black
285006 Whirlpool Spray
WPW10339879 Whirlpool Wire Tie
4450800 Whirlpool Oven Screw
Wire, 25` Roll (Red 14 Ga.)
350930 Whirlpool White Spray Paint
4392901 Whirlpool Biscuit Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
WP4449809 Whirlpool Screw
WP4448950 Whirlpool Screw
Wire, 25` Roll (Black 14 Ga.)
Filler Kit (BL)
Ground (M/W)
Filler Kit (WH)
Filler Kit (AL)
1Glass, Middle
2Frame, Door
3WP4450038 Whirlpool Screw
4Bracket, Mounting (Right Side)
4Bracket, Mounting (Left Side)
5Filler, Side
6Handle, Door (Black)
6Handle (S.Steel)
6Handle, Door (Biscuit)
6Handle, Door (White)
7Glass, Outer (Black)
7Glass, Outer (Biscuit)
7Glass, Outer (White)
7Glass, Outer (Stainless)
9Bracket, Handle
10Clip, Retainer (Black Model)
10Clip, Retainer (White Model)
11Plate, Door
12Frame, Inner
13Strap, Door
14Screw
15WP4375324 Whirlpool Microwave Door Hinge
15WP4375323 Whirlpool Microwave Door Hinge
17WPW10132940 Whirlpool Dishwasher Screw
18WP4451008 Whirlpool Microwave Spring
18WP4452398 Whirlpool Microwave Door Spring
