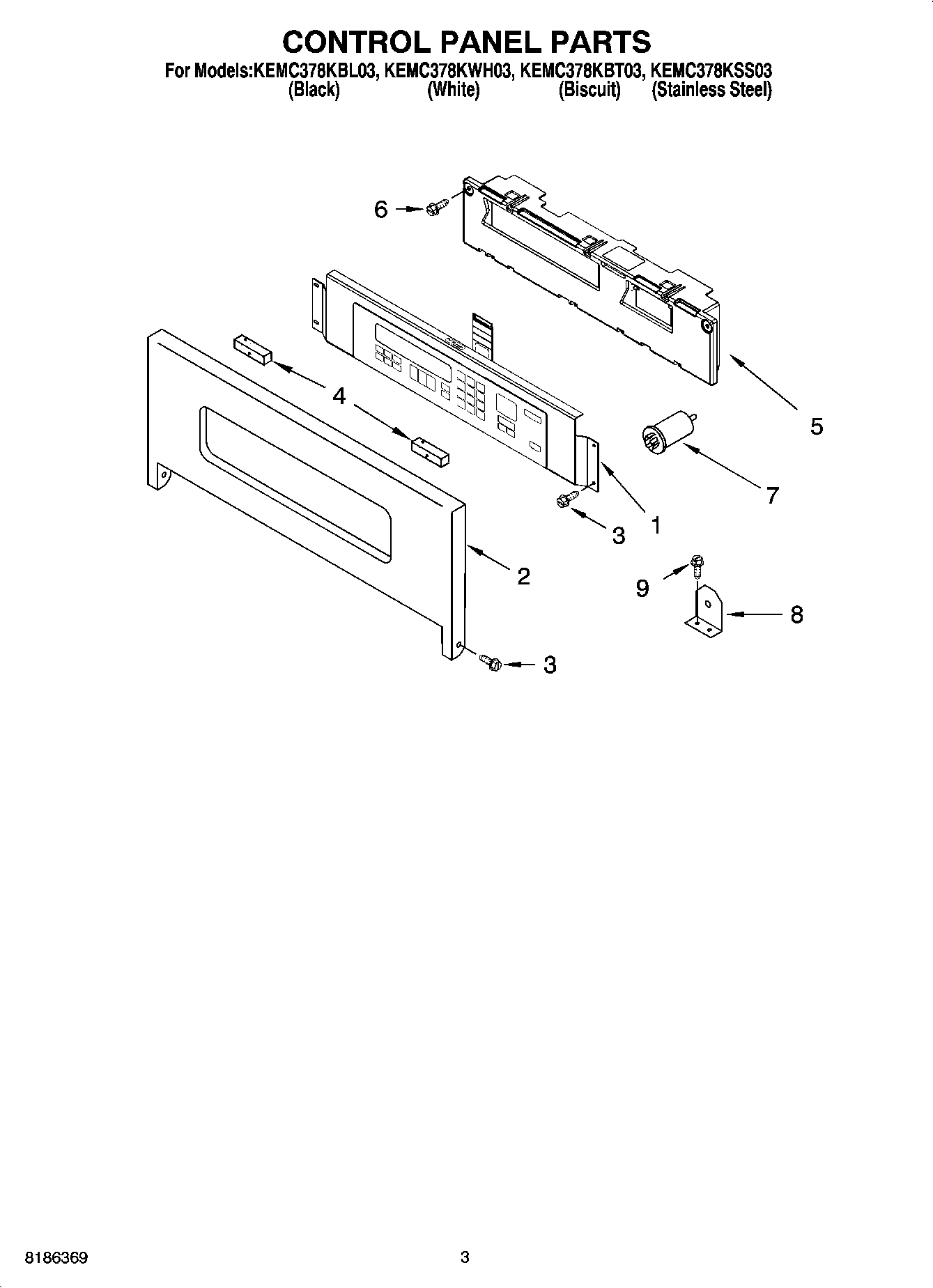

KEMC378KWH03 02 – CONTROL PANEL PARTS

Written by

Products

Position	Product
1	Switch, Membrane (White)
1	Switch, Membrane (Biscuit)
1	Switch, Membrane (Black)
1	Switch, Membrane (Stainless Steel)
2	Panel, Control (Biscuit)
2	Panel, Control (White)
2	Panel, Control (Black)
2	Panel, Control
3	WP3400832 Whirlpool Screw
4	Spacer, Foam
5	Assy, Control
6	WP4449745 Whirlpool Screw
7	Filter
8	Bracket, Filter
9	WP4449809 Whirlpool Screw
