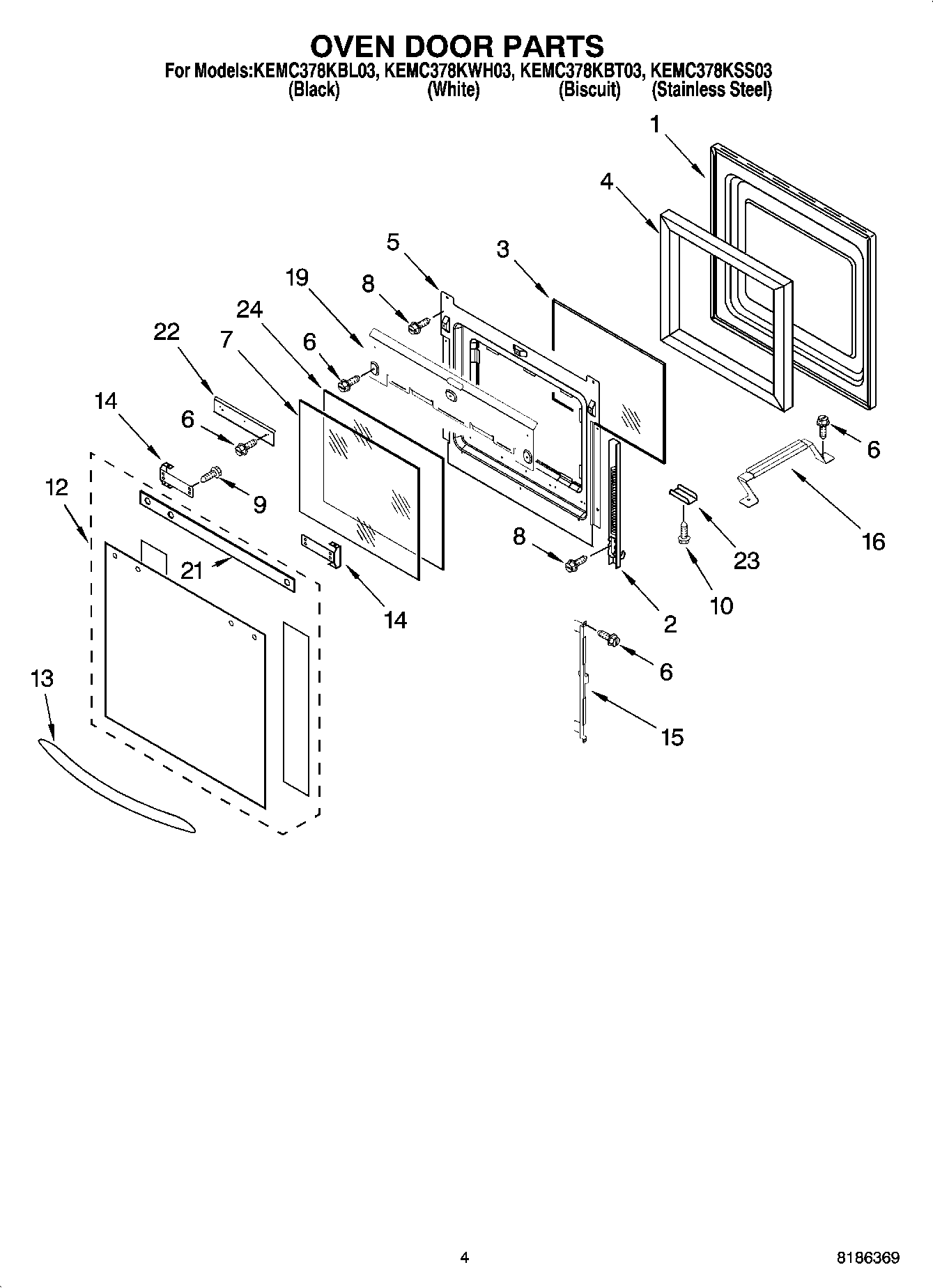

KEMC378KWH03 03 – OVEN DOOR PARTS

Products

Position	Product
1	Door Liner
2	WP9760572 Whirlpool Door Hinge
2	WP9760576 Whirlpool Door Hinge (Left)
2	WP9760571 Whirlpool Door Hinge
2	HINGE-DOOR
3	WP4449253 Whirlpool Glass Window
4	Insulation, Sides
5	Retainer, Glass
7	Glass, Inner
8	WP4449743 Whirlpool Screw
9	WPW10132940 Whirlpool Dishwasher Screw
10	WP3400832 Whirlpool Screw
12	Glass, Outer (Black)
12	Door Glass, Assy (Biscuit)
12	WP4452315 Whirlpool Door Glass
12	Glass, Outer (White)
13	Handle, Door (White)
13	Handle, Door (Black)
13	Handle, Door (Biscuit)
13	Door Handle (Stainless Steel)
14	4455803 Whirlpool Oven Bracket
14	Bracket, Handle (L.Hand)
15	WP9759229 Whirlpool Mounting Bracket
16	Bracket (3rd Glsss)
19	WP4449809 Whirlpool Screw
19	Shield, Heat
21	Seal, Top
22	Shield, Heat (Bottom)
23	RETAINER,GLASS CLIP (BISCUIT)
23	Clip, Retainer (White Model)
23	Clip, Retainer (Black Model)
23	Retainer, Glass-Clip (Stainless Steel)
24	WP9759227 Whirlpool Glass Door
