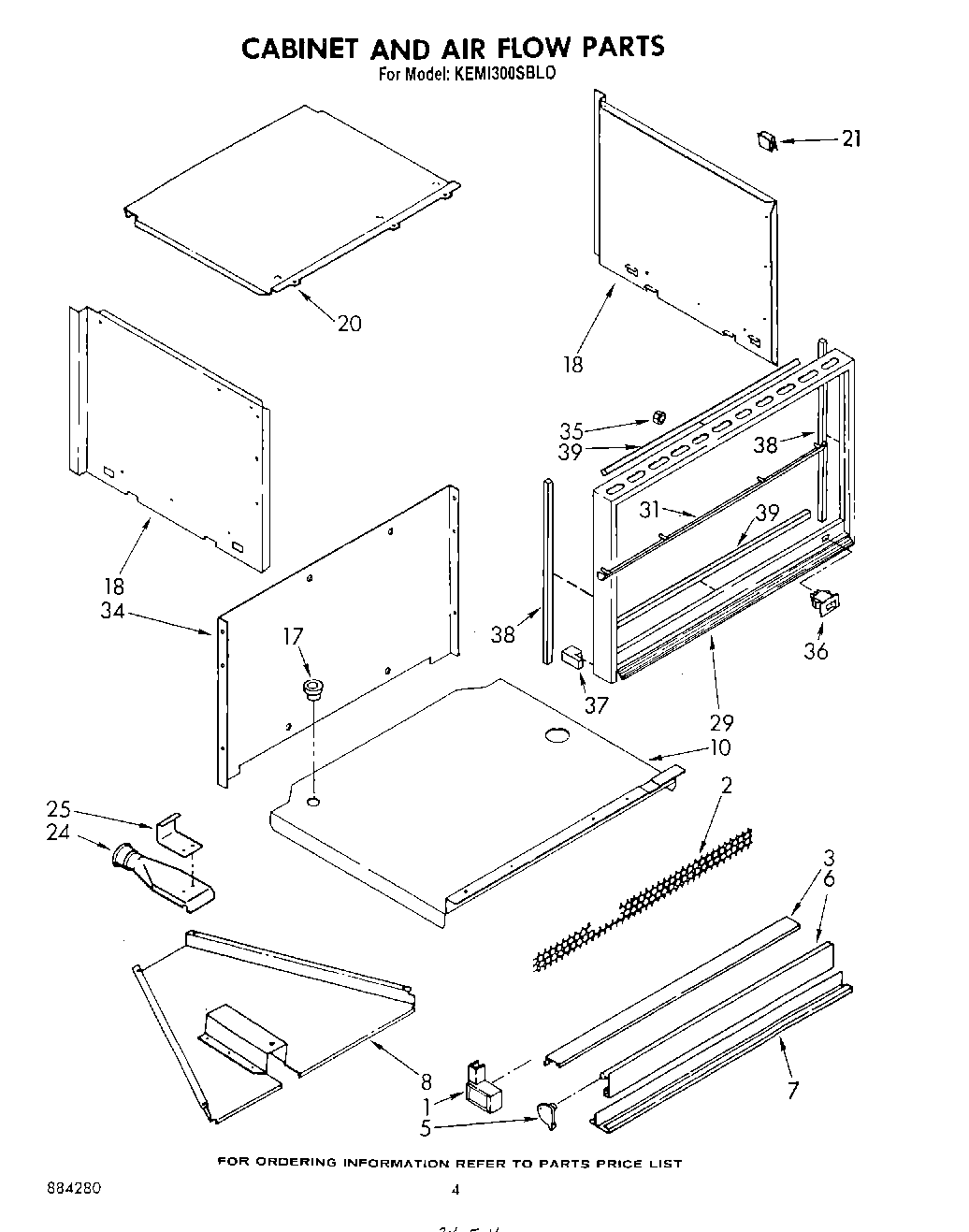

KEMI300SBL0 03 – CABINET AND AIR FLOW

Products

Position	Product
1	End Cap, R.H.
1	End Cap, L.H.
2	Trim, Oven Vent
3	Trim, Top
5	End Trim, Vent (Left Side)
5	End Trim, Vent (Right Side)
6	Door, Vent
7	Trim, Bottom
7	Screw
7	Screw, 10-32 x 1/2
8	Box Air
10	Support Plate
17	Bushing, Snap
18	Side Panel, R.H.
18	Side Panel, L.H.
20	Panel, Top
20	302251 Whirlpool Dishwasher Screw
21	Clip
24	Vent Tube
25	Support, Vent Tube
25	Screw,
29	Frame
31	Deflector, Air
34	WP488729 Whirlpool Refrigerator Door Screw
34	Cover, Rear
35	Nut (3)
36	WP4314961 Whirlpool Lite Switch
37	Seal, Foam (2)
38	WPL 3147595
39	WPL 3147596

No products found
