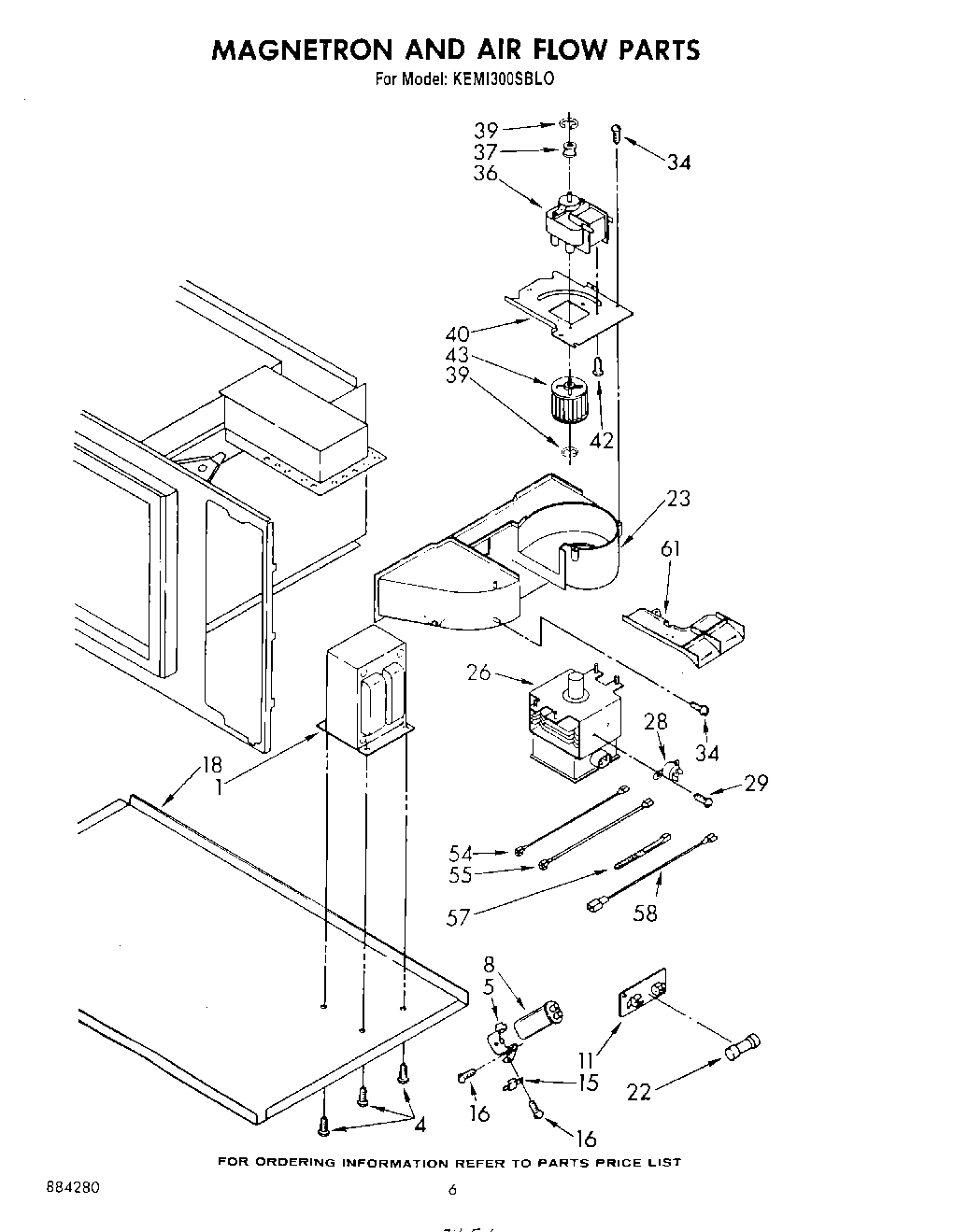

KEMI300SBL0 04 – MAGNETRON AND AIR FLOW

Products

Position	Product
1	Transformer
1	Transformer (Alt.)
1	Transformer
4	Screw, 10-32 x 1/2 Hex Washer W/Ground Ring (10)
5	Bracket, Capacitor
8	Capacitor (Alt.)
8	Capacitor
8	capacitor (alt.)
11	4454949 Whirlpool Oven Fuse Block
15	rectifier, high voltage
15	rectifier, high voltage (alt.)
16	screw
18	Base, Chassis (Not Serviceable)
22	WPW10017410 Whirlpool Fuse
23	Air Duct (Horizontal)
26	Magnetron (Alt.)
26	Magnetron (Alt.)
26	Magnetron (Alt.)
26	Magnetron
26	Magnetron (Alt.)
26	Magnetron (Alt.)
28	Thermal Protector (Alt.)
28	Thermal Protector (Alt.)
28	Thermal Protector
29	Screw, 6A x 3/8 (2)
34	Screw, 11-16 x 1/2 Double Load Space Thread (5)
36	Transmotor
36	Motor (Alt.)
36	Motor (Alt.)
37	Pulley, Motor
39	“E“ Ring
40	Bracket, Motor
42	WP486579 Whirlpool Air Conditioner Screw
43	Wheel, Blower
54	Jumper, High Voltage Black 6-5/16“
55	Jumper, High Voltage Red (6-5/16“)
57	WPW10339879 Whirlpool Wire Tie
58	High Voltage Lead, Gray 6-3/4“ (2)
61	Extension, Air Duct
