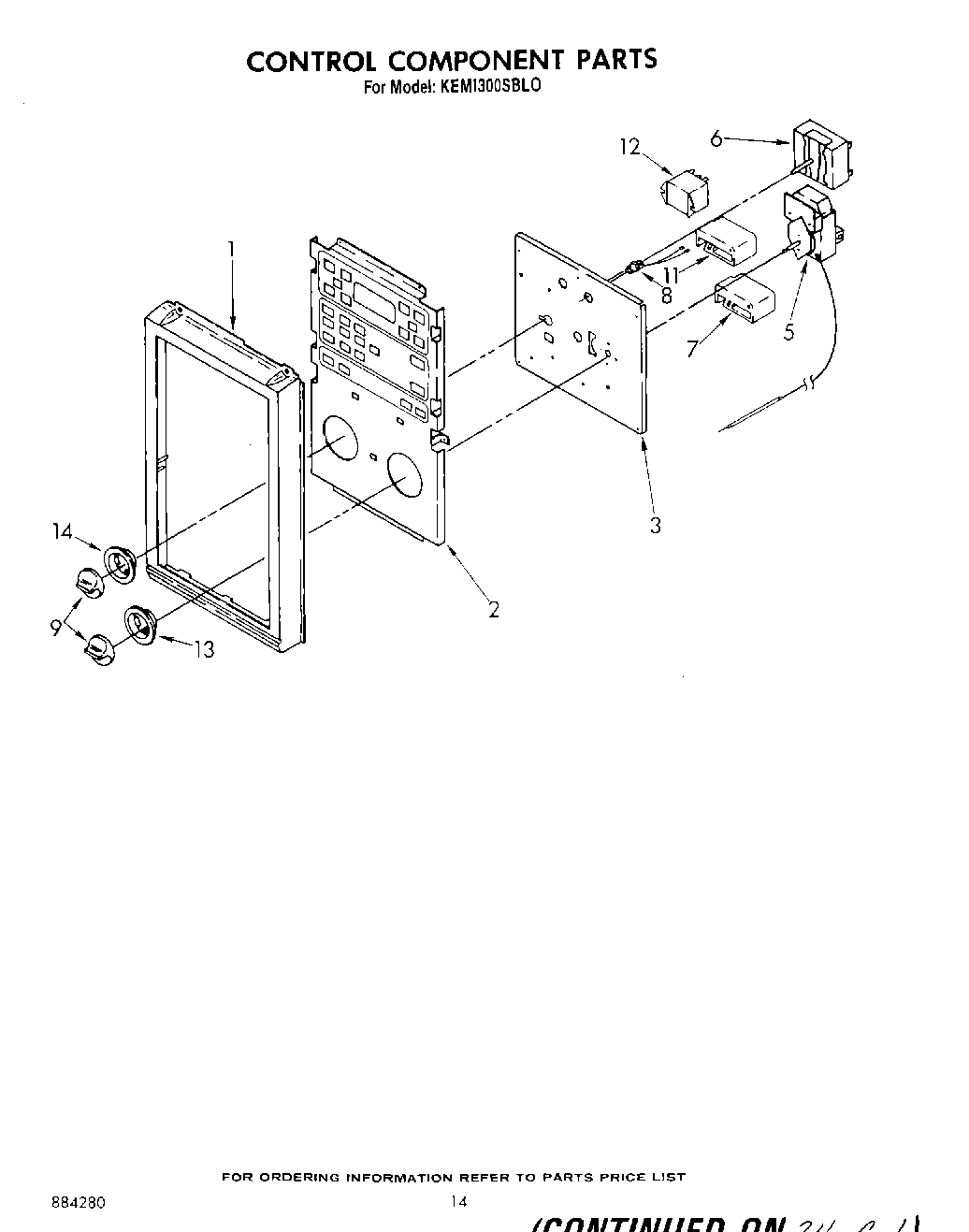

KEMI300SBL0 09 – CONTROL COMPONENT

Written by

Products

Position	Product
1	Frame, Control Panel
2	Switch Membrane (Control Module)
3	Bracket, Control (Mounting)
3	Screw, 8-32 x 3/16 (2)
5	Thermostat
5	WP313808 Whirlpool Screw
6	Switch, Selector
7	WPL 314211
8	Light, Indicator (4)
9	Knob, Control (3)
11	WPL 314215
11	Sw
12	Relay, Vent (24V, Clear)
12	Screw
