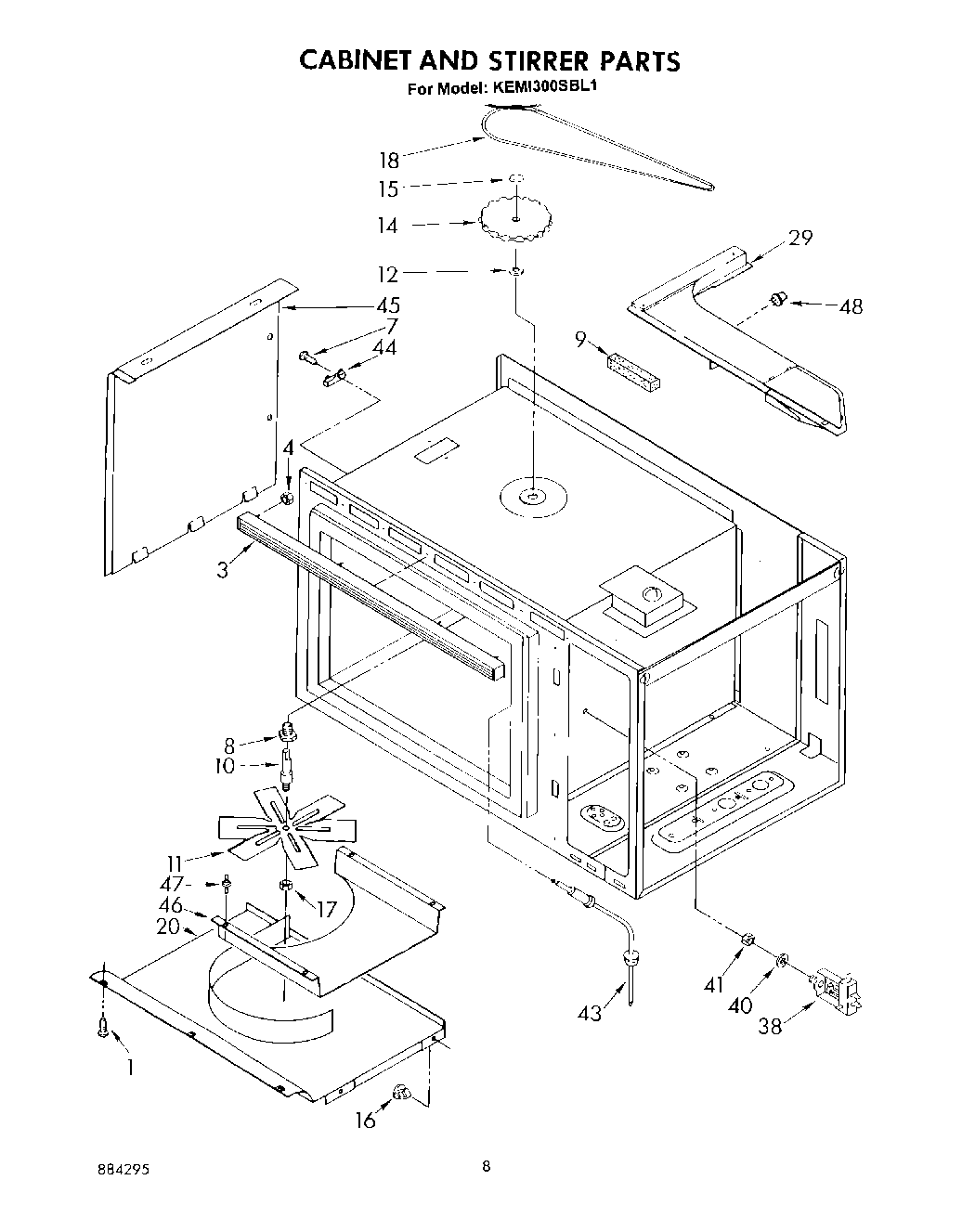

KEMI300SBL1 05 – CABINET AND STIRRER

Products

Position	Product
1	WP488729 Whirlpool Refrigerator Door Screw
3	Grill, Air
4	Nut (3)
8	Bushing, Stirrer
9	Seal, Foam
10	Shaft, Stirrer
11	Stirrer Blade
12	Washer, Nylon
14	Pulley, Stirrer Blade
15	“E“ Ring
16	Fastener (4)
17	WP487939 Whirlpool Refrigerator Nut
18	WP313646 Whirlpool Microwave Drive Belt
20	Silicone Rubber Gasket
29	Baffle, Air Exhaust
38	Probe Jack
40	Washer, Internal Lock
41	Nut
43	(Alt.)
44	Fuse, Thermal
44	screw
45	screw, 8-32 x 1/2 (3)
45	Cover, Side
46	Plate, Tuning
47	Support (4)
48	Sensor, Gas
48	Screw
