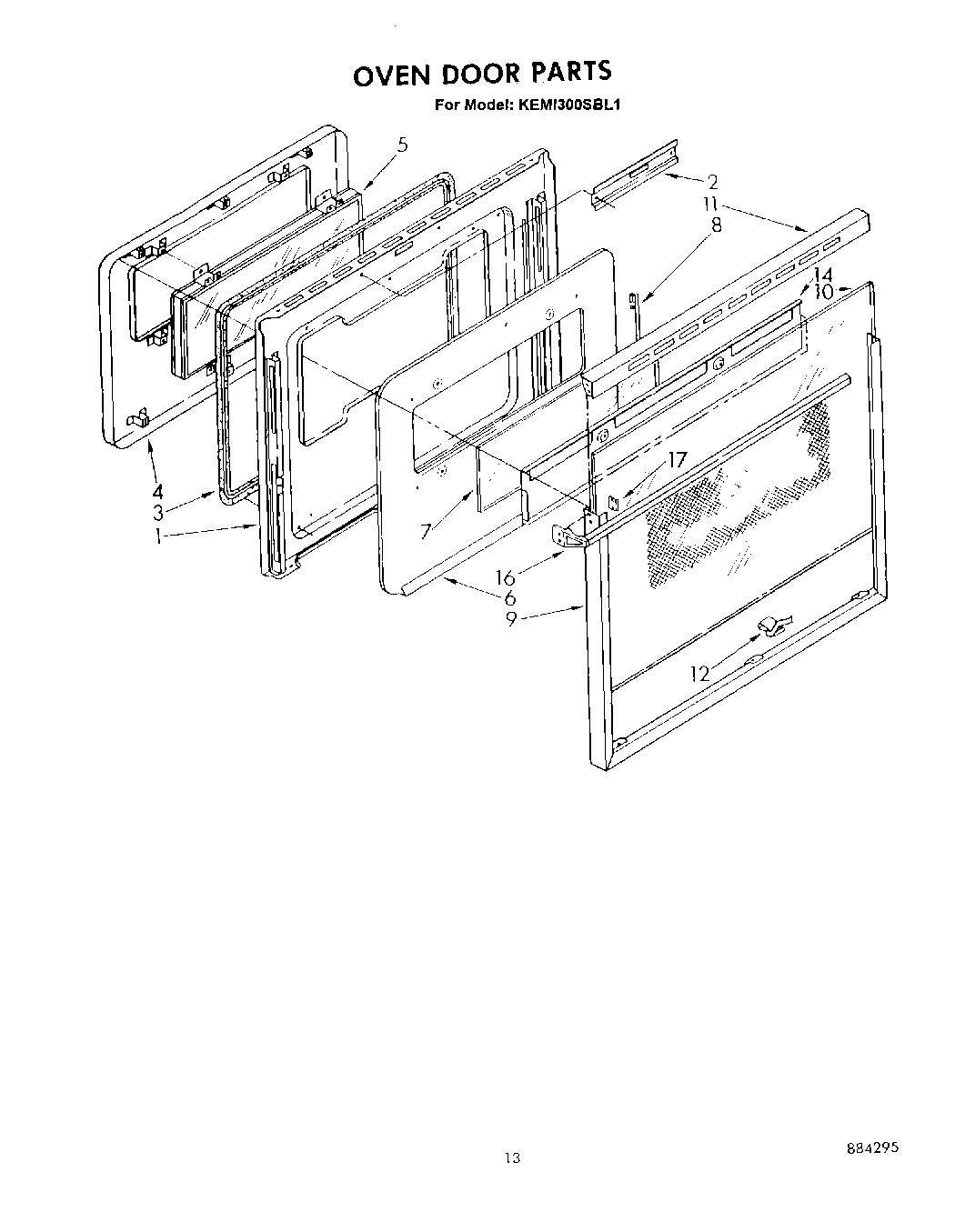

KEMI300SBL1 08 – OVEN DOOR

Products

Position	Product
1	Screw (3)
1	Liner, Door
2	Channel, Latch
3	Seal, Fiberglass
4	Panel, Inner
5	Window Package
6	Retainer, Insulation
7	Glass (6.81“ x 18.31“)
8	Retainer, Glass (2)
9	Frame, Door
10	Glass, Outer
11	Top, Door Frame
11	Screw, 10A x 1/2 (2) (Black)
12	Clip, Glass (10)
14	Baffle, Heat
14	WP90296 Whirlpool Clip
16	WP355515 Whirlpool Screw
16	Screw
16	Handle, Oven Door
17	Clip (2)
