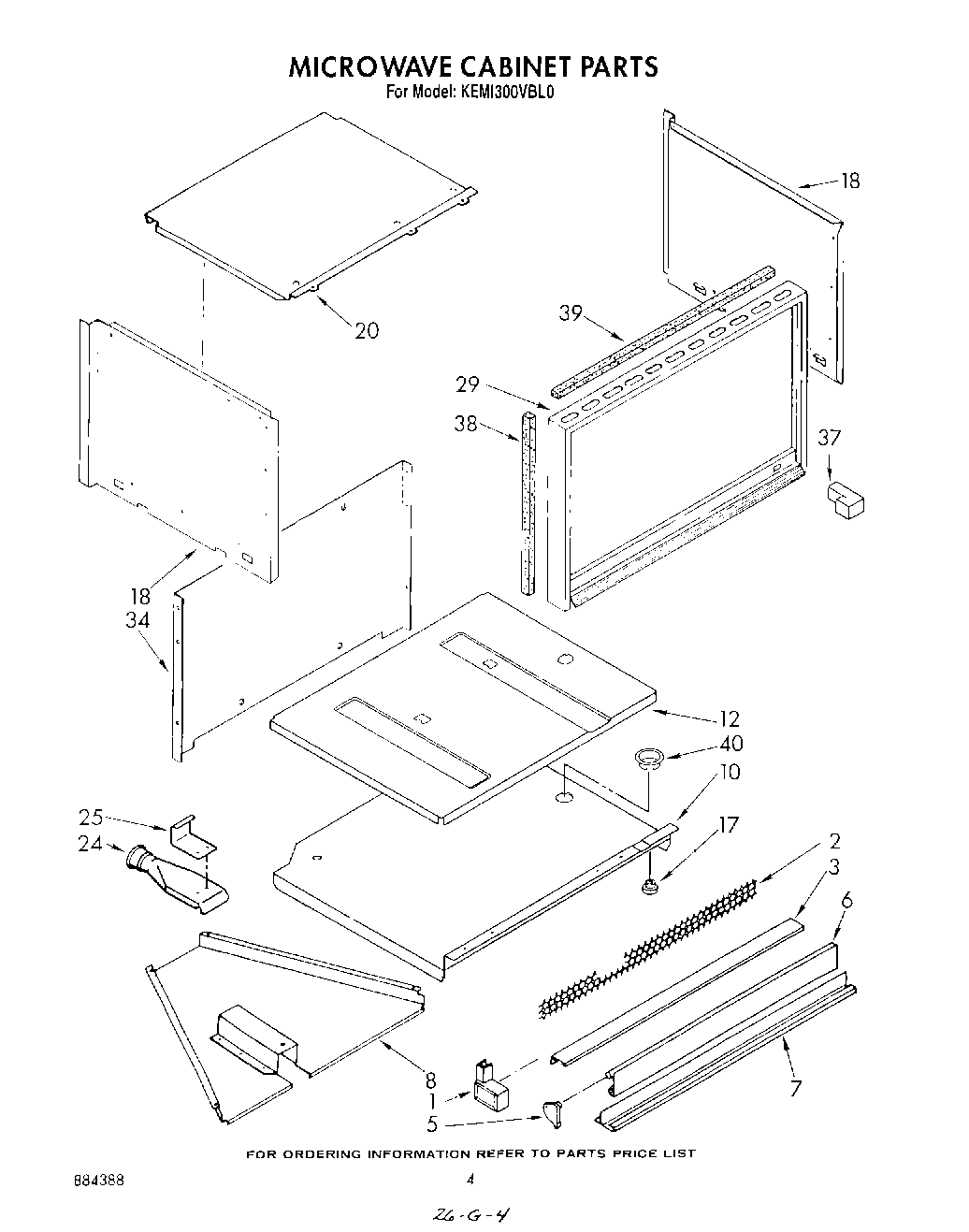

KEMI300VBL0 03 – MICROWAVE CABINET

Products

PositionProduct
1End Cap, R.H.
1End Cap, L.H.
2Trim, Oven Vent
3Trim, Top
3Screw
5End Trim, Vent (Right Side)
5End Trim, Vent (Left Side)
6Door, Vent
7Trim, Bottom
7Screw, 10-32 x 1/2
8Box Air
10Support Plate
10Adhesive
12Panel, Support
17Snap Bushing
18Side Panel, L.H.
18Side Panel, R.H.
20302251 Whirlpool Dishwasher Screw
20Panel, Top
24Vent Tube
25Screw,
25Support, Vent Tube
29Frame
34Cover, Rear
34WP488729 Whirlpool Refrigerator Door Screw
37Seal, Foam (2)
38WPL 3147595
39WPL 3147596
40Bushing, Snap
