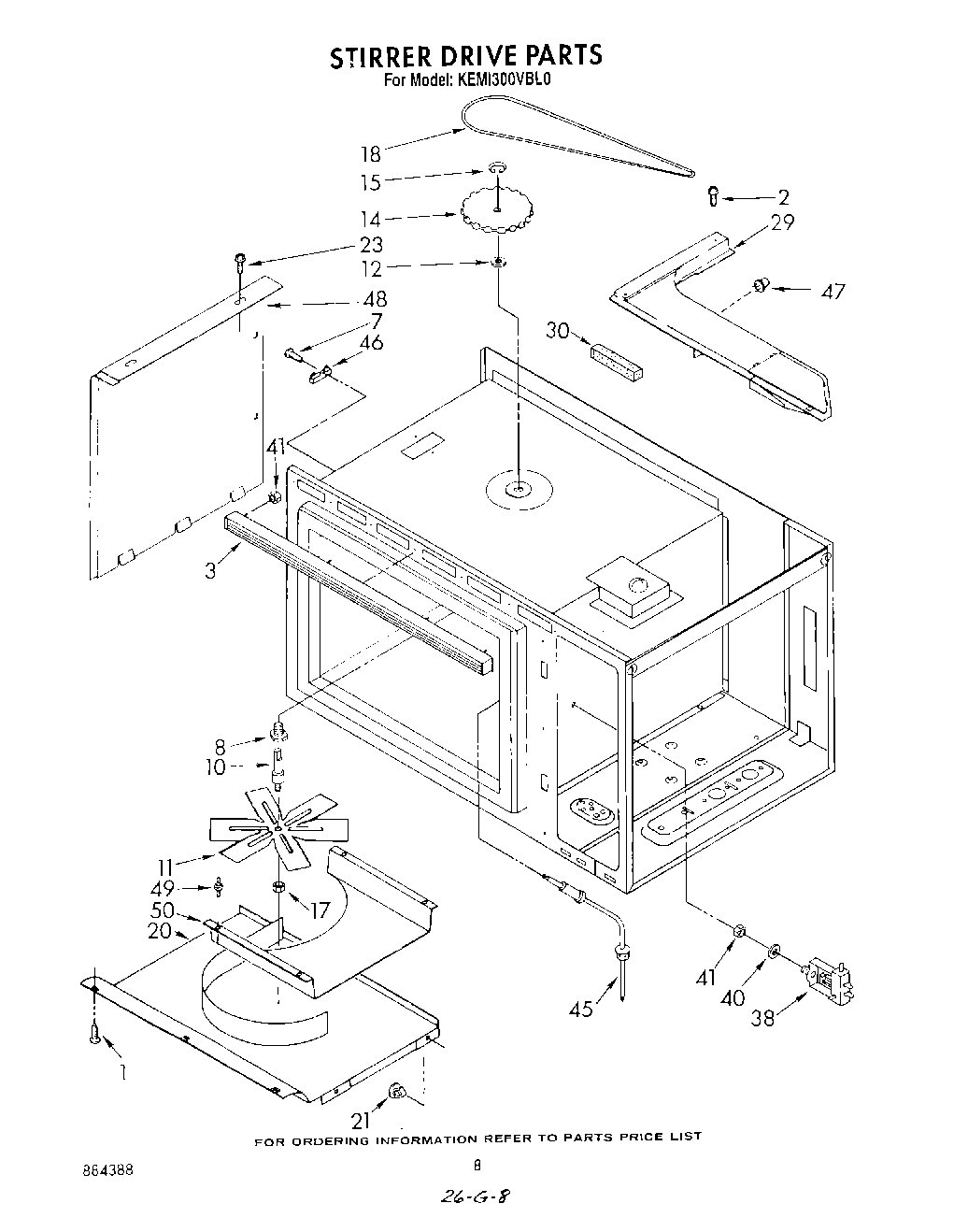

KEMI300VBL0 05 – STIRRER DRIVE

Products

PositionProduct
1WP488729 Whirlpool Refrigerator Door Screw
2Fastener (2)
3Base, Cabinet (Not Serviceable)
8Bushing, Stirrer
10Shaft, Stirrer
11Stirrer Blade
12Washer, Nylon
14Pulley, Stirrer Blade
15“E“ Ring
17WP487939 Whirlpool Refrigerator Nut
18WP313646 Whirlpool Microwave Drive Belt
20Silicone Rubber Gasket
21Fastener (4)
29Baffle, Air Exhaust
30Seal, Foam
38Probe Jack
40Washer, Internal Lock
41Nut
45screw
45Probe, Temperature
45(Alt.)
46Fuse, Thermal
47Screw
47Sensor, Gas
48Cover, Side
48screw, 8-32 x 1/2 (3)
49Support (4)
50Plate, Tuning
