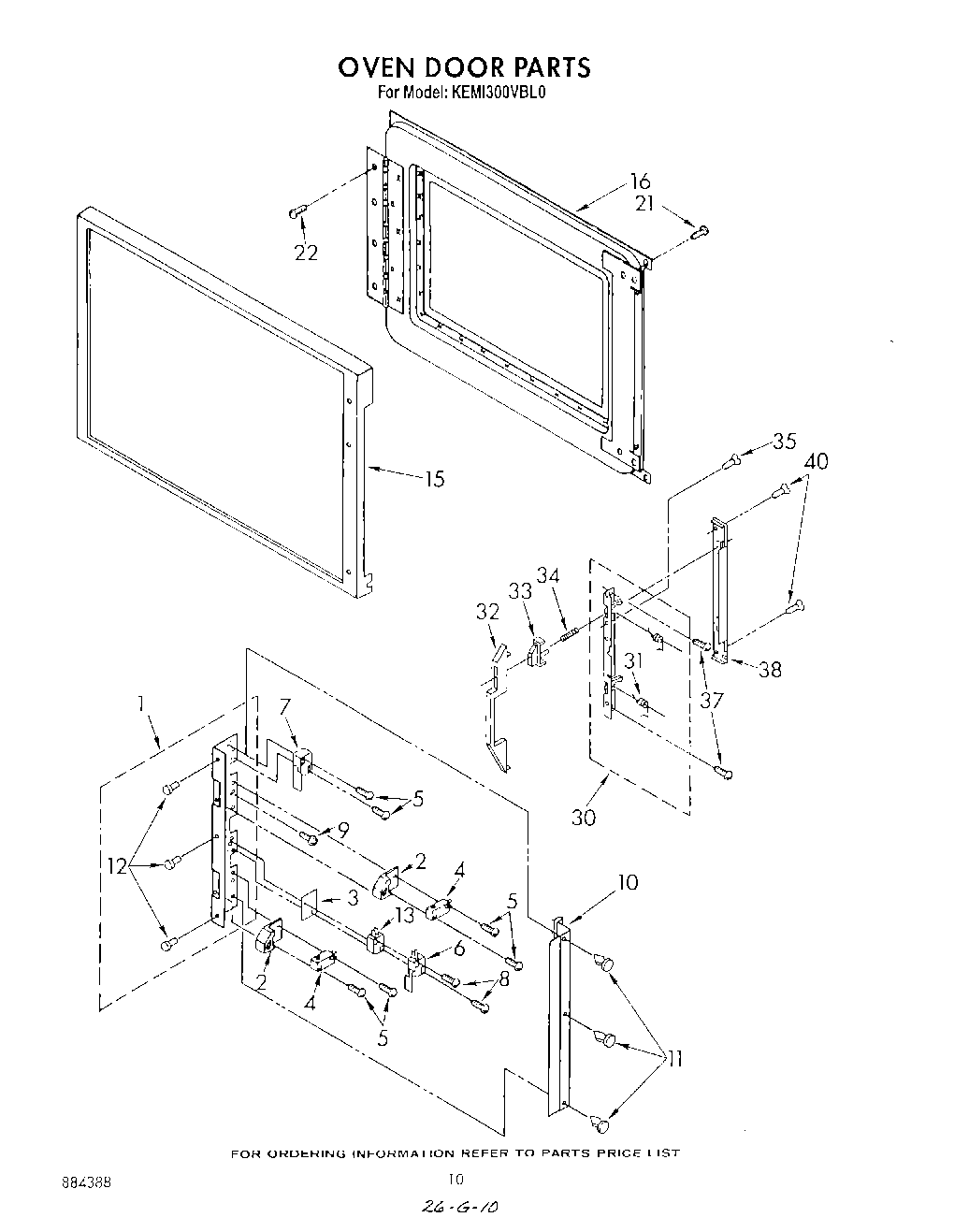

KEMI300VBL0 06 – MICROWAVE OVEN DOOR , LITERATURE AND OPTIONAL

Products

Position	Product
	Book, Cooking Guide
	WPL LIT3147420
	WPL LIT884388
	WPL LIT3147382
	WPL LIT3147419
	WPL LIT3147967
	WPL LIT3147005
1	screw
1	Bracket, Catch
2	Catch (2)
3	Insulator
4	814037 Whirlpool Microwave Switch
5	WPL 312717
6	Switch, Light Monitor (Alt.)
6	Switch, Light Monitor (Alt.)
6	Switch, Light/ Monitor
7	Switch, Miniature
8	Screw, 4-40 x 10 (2)
9	WPL 309080
10	shield
11	Fastener (4)
12	Rivet, Pop (3)
13	Spring
13	Switch
13	Switch (Alt.)
15	Frame, Door
16	Door, Inner
22	WPW10068250 Whirlpool Dishwasher Screw
30	Latch Assembly
31	Spring, Torsion (2)
32	Handle, Door
33	313611 Whirlpool Microwave Door Button
34	Rear Top Burner-Lt. or Rt. (Inc`s 64 & 65)
35	303776 Whirlpool Dishwasher Screw
37	Screw (2)
38	End Cap
40	261900 Whirlpool Microwave Spray
40	Rack, Meat (Micro)
40	WP75614 Whirlpool Connector
40	Toast
40	Screw, 8-22 (5)
40	Wire (14 Ga. 150 c Blue)
40	Touch-Up, Oven
40	Grease
40	Leveler (Thinner) (2oz.)
40	WPL 799832
40	Enamel, Black (1 Qt. Uncut)
40	511873 Whirlpool Refrigerator Paint
40	350942 Whirlpool Spray Paint
40	WPL 72112
40	Platinum (Uncut)
40	Enamal, Toast (1 Qt. Uncut)
40	Paint, Spray (13 Oz.) (Platinum)
40	Golden Harvest (Uncut)
40	Golden Harvest
40	72113 Whirlpool Touch-Up Paint
40	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
40	Almond (Uncut)
40	WP72107 Whirlpool Touchup
40	799344 Whirlpool Refrigerator Paint
40	72017 Whirlpool Appliance Touch-Up Paint White
40	350956 Whirlpool Spray Assembly
40	WPW10208653 Whirlpool Insulation
40	Wire, 25` Roll (Black 14 Ga.)
40	Rotisserie Kit
40	WPL 591014
40	1
40	Wire (14 Ga. 200 c Brown)
40	18 Ga. 80~c Rating (Red)
40	Wire (12 Ga. 150 c Black)
40	Wire (14 Ga. 150 c Yellow)
40	Wire (14 Ga. 150 c Orange)
40	Wire (14 Ga. 150 c Green)
40	Wire (14 Ga. 150 c Brown)
40	WP261869 Whirlpool Microwave Paint
40	242831 Whirlpool Oven Wire
40	WP482338 Whirlpool Refrigerator Adhesive
40	72032 Whirlpool Touch Up Paint Black
40	285006 Whirlpool Spray
40	Wire, 25“ Roll (White 14 GA.)
40	Wire, 25` Roll (Red 14 Ga.)
40	350930 Whirlpool White Spray Paint
