KEMI300VBL0 09 – CONTROL PANEL

KEMI300VBL0 09 – CONTROL PANEL

Written by

in

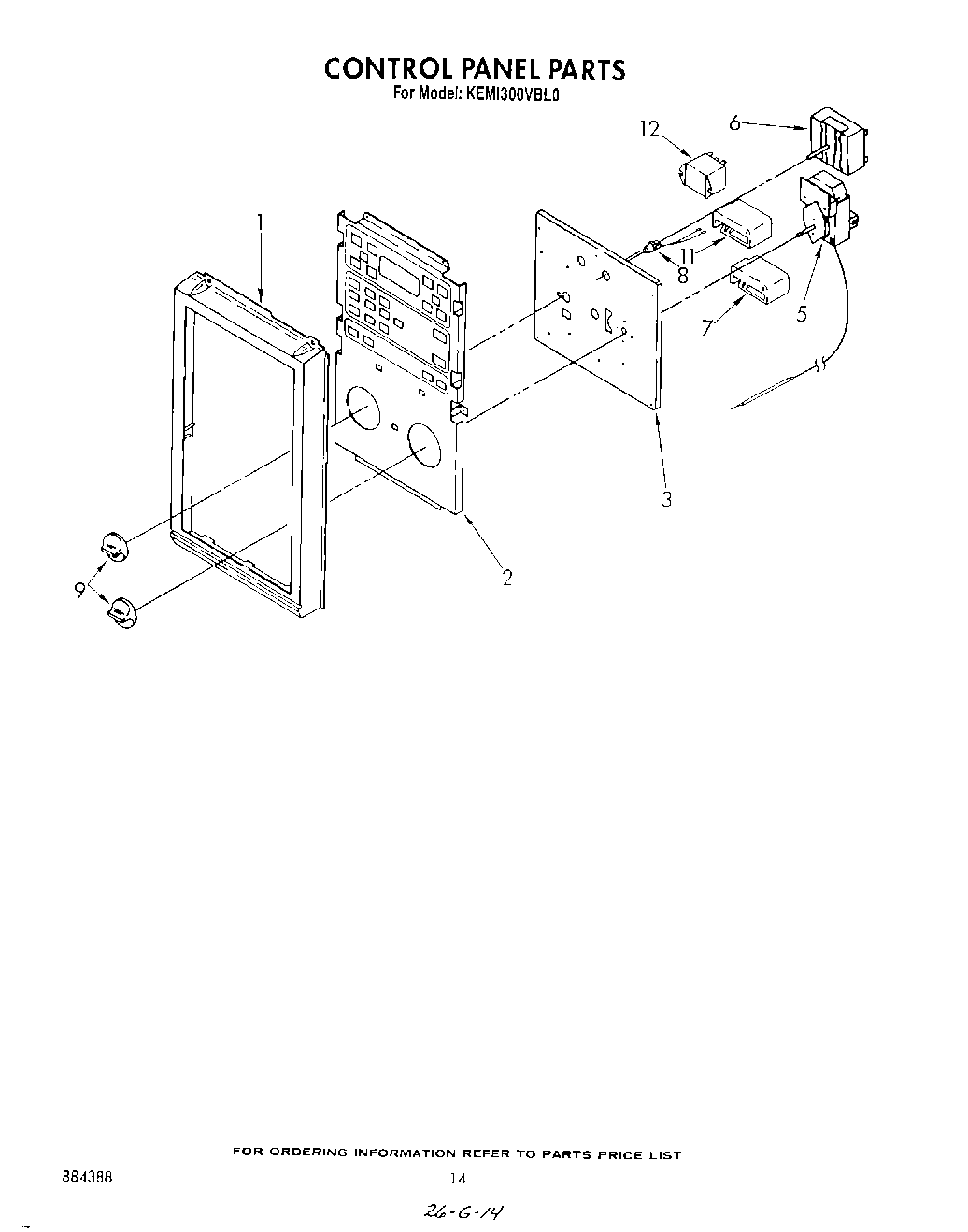

KEMI300VBL0 09 – CONTROL PANEL

Products

PositionProduct
1Screw
1Frame, Control Panel
2Switch Membrane (Control Module)
3Bracket, Control (Mounting)
3Screw, 8-32 x 3/16 (2)
5Thermostat
5WP313808 Whirlpool Screw
6Switch, Selector
7Switch, Bake
8Light, Indicator (4)
9Knob, Control
11WPL 314215
11Sw
12Harness, Wiring (Connector (11))
12Harness, Wiring (Connector (10))
12Harness, Wiring (Thermostat)
12Screw
12Relay, Vent (24V, Clear)
12Disconnect Block
12Connector, Housing
12Wiring Harness Control (Microwave)
12Harness, Wiring (Socket)
