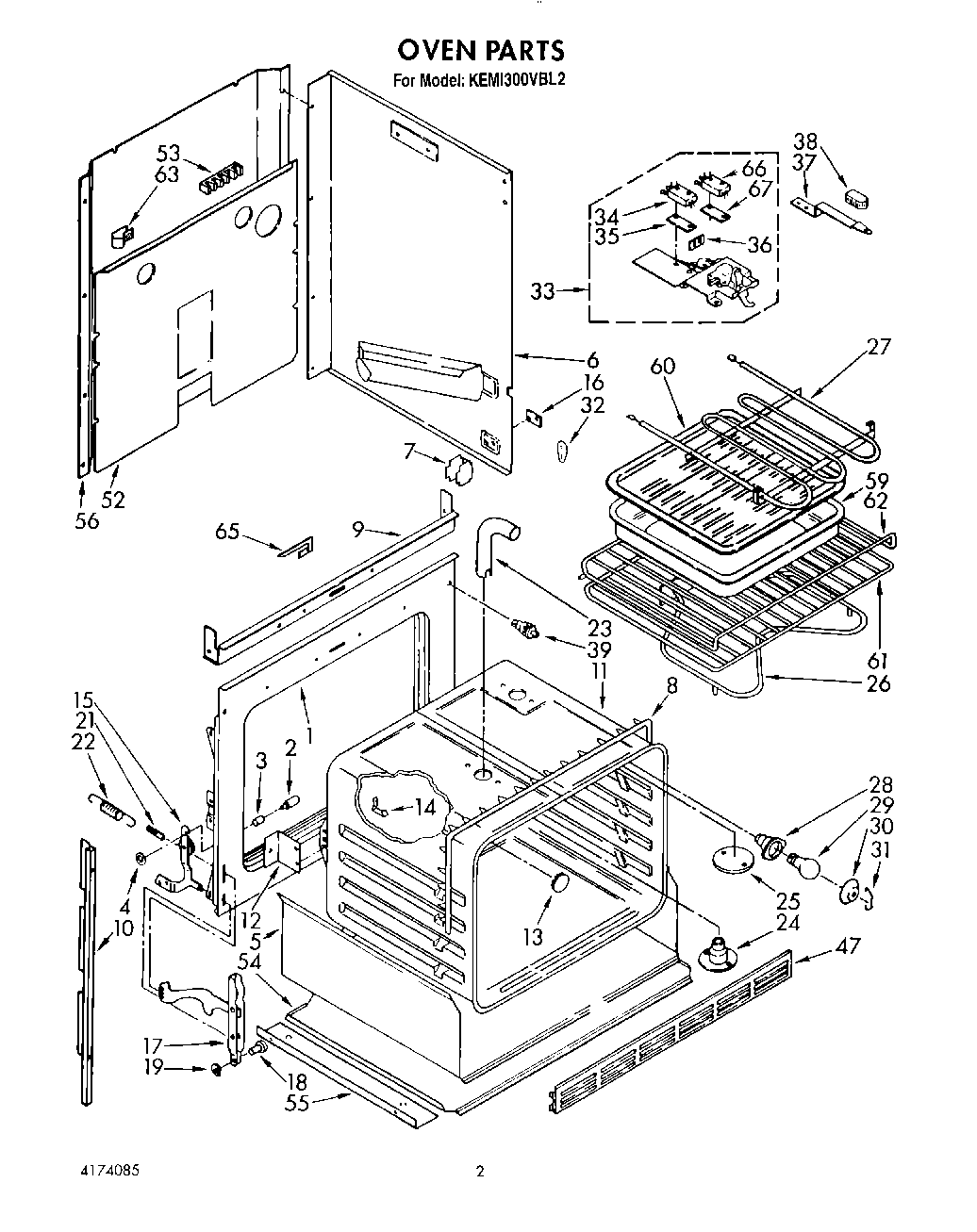

KEMI300VBL2 02 – OVEN, LIT/OPTIONAL
Written by
in
KEMI300VBL2 02 – OVEN, LIT/OPTIONAL
Products
Position
Product
WPL LIT3147571
WPL LIT3147577
Cookbook
WPL LIT3149135
WPL LIT3147436
WPL LIT4174085
WPL LIT3147005
WPL LIT3147382
WPL LIT3147438
1
Frame, Front
2
Pin, Hinge Ear (2)
3
Snubber, Door (2)
4
Pushnut (2)
5
Insulation Tray
6
Side Wrapper (Right Side)
6
Side Wrapper (Left Side)
7
Support, Side Wrapper (4)
8
WP313808 Whirlpool Screw
8
Seal, Door
9
Baffle, Top Insulation
10
Side Trim (Right Side)
10
Side Trim (Left Side)
11
Oven (30“ Pyro)
11
SCREW
12
Bracket, Oven Mounting (2)
13
Plug Button
14
98005642 Whirlpool Clip
15
Hinge Ear, L.H.
15
Hinge Ear, R.H.
16
WP308544 Whirlpool Screw
16
Plate, Side Panel (2)
17
Channel Arm (2)
18
WP307986 Whirlpool Hinge Pin
19
Retainer Ring (2)
21
WP308125 Whirlpool Microwave Range/Cooktop Anchor
22
WP308126 Whirlpool Door Spring
23
Tube, Vent
24
WP90767 Whirlpool Screw
24
Eliminator, Smoke
25
WPL 310662
26
ELMNT-BAKE
26
WP312309 Whirlpool Bake Element
27
Unit, Broil (208V)
27
WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
28
Socket, Oven Light
29
RANGE ONLY 40W 120V APPL BULB
30
Cover, Light
31
Retainer, Light
32
WPL 311982
32
WPL 312318
32
WP488729 Whirlpool Refrigerator Door Screw
33
Screw (3)
33
Latch Assembly
34
Safety Switch
34
Screw
35
Insulator, Switch
36
Screw
36
Shield, Latch
37
Latch, Handle
37
Screw
38
Screw, 80 x 5/16
38
Knob, Latch Handle
39
Switch, Door
47
Grill, Bottom (Screw (3))
47
Grill, Bottom
52
Panel, Back (2)
53
WPL 3147001
53
Screw (10-12 x .875)
53
WP8203546 Whirlpool Terminal Block
53
WP112432 Whirlpool Nut Assembly
54
WPL 310458
55
Angle, Support (2)
56
Cover, Rear
60
4396923 Whirlpool Broil Pan Set Gray Porcelain
61
WPL 308173
62
WPL 308172
63
WP308605 Whirlpool Refrigerator Clamp
65
Shield, Air
65
WPL 309080
66
Switch, Lock
67
WPL 310433
67
WPL 3149328
67
WPL 310434
67
WPL 3147864
←
