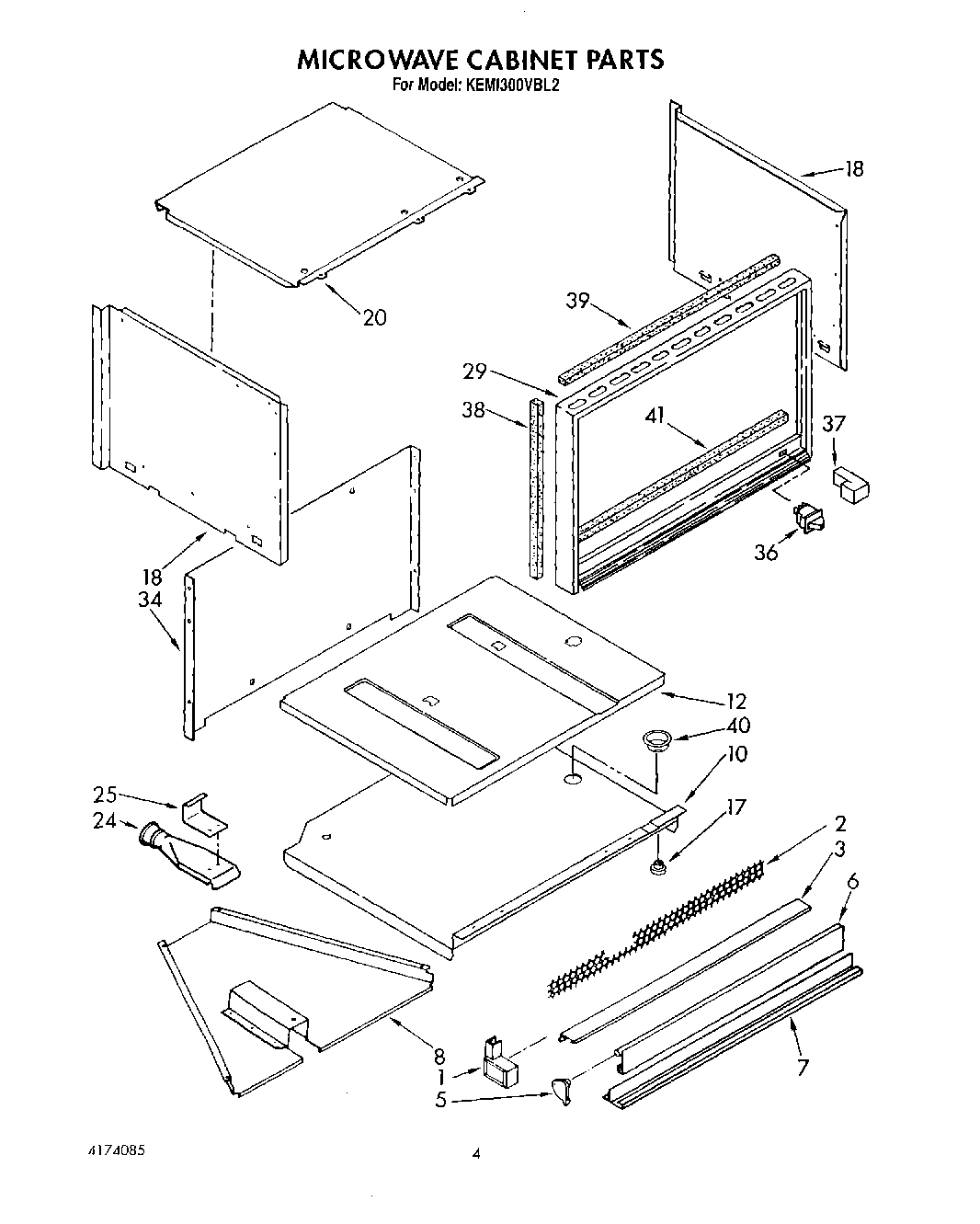

KEMI300VBL2 03 – MICROWAVE CABINET

KEMI300VBL2 03 – MICROWAVE CABINET

Written by

in

KEMI300VBL2 03 – MICROWAVE CABINET

Products

PositionProduct
1End Cap, R.H.
1End Cap, L.H.
1End Cap (Washer)
2Trim, Oven Vent
3WP965173 Whirlpool Dishwasher Screw
3Trim, Top
5End Trim, Vent (Left Side)
5End Trim, Vent (Right Side)
6Door, Vent
7Trim, Bottom
7Screw, 10-32 x 1/2
8Box Air
10Support Plate
11Adhesive
12Panel, Support
17Snap Bushing
18Side Panel, L.H.
18Side Panel, R.H.
20Panel, Top
20302251 Whirlpool Dishwasher Screw
20Panel, Side L.H. (Screw, 10A x 1/2 (2))
24Vent Tube
25Support, Vent Tube
25Screw,
29Frame
34WP488729 Whirlpool Refrigerator Door Screw
34Cover, Rear
36WP4314961 Whirlpool Lite Switch
37Seal, Foam (2)
38WPL 3147595
39WPL 3147596
40Bushing, Snap
41WPL 3147590
