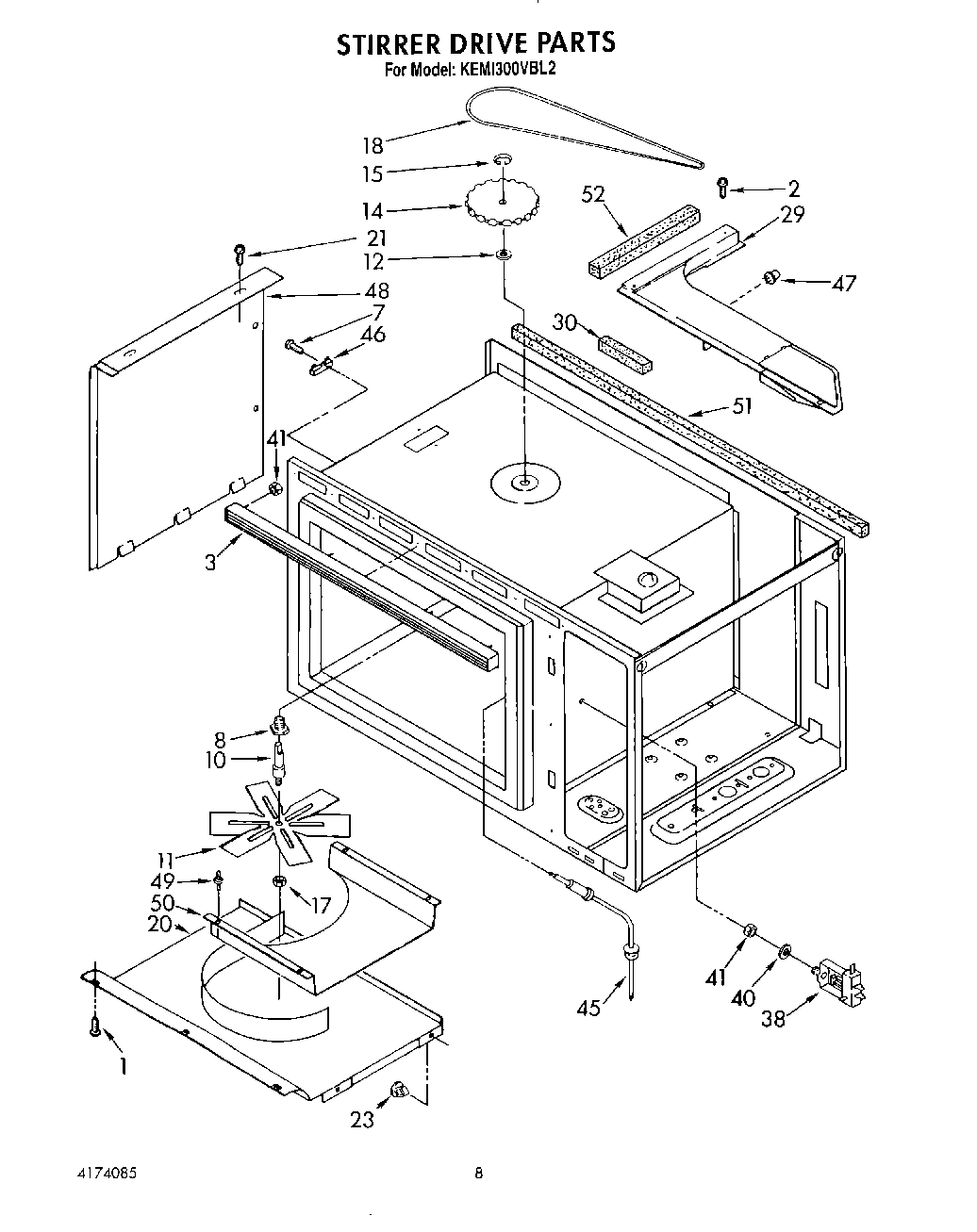

KEMI300VBL2 05 – STIRRER DRIVE

KEMI300VBL2 05 – STIRRER DRIVE

Written by

in

KEMI300VBL2 05 – STIRRER DRIVE

Products

PositionProduct
1WP488729 Whirlpool Refrigerator Door Screw
3Deflector, Air
4Nut (3)
8Bushing, Stirrer
10Shaft, Stirrer
11Stirrer Blade
12Washer, Nylon
14Pulley, Stirrer Blade
15“E“ Ring
15Fastener (4)
17WP487939 Whirlpool Refrigerator Nut
18WP313646 Whirlpool Microwave Drive Belt
20Silicone Rubber Gasket
23Fastener (2)
29Baffle, Air Exhaust
30Seal, Foam
38Probe Jack
40Washer, Internal Lock
41Nut
45(Alt.)
46screw
46Fuse, Thermal
47Screw
47Sensor, Gas
48screw, 8-32 x 1/2 (3)
48Cover, Side
49Support (4)
50Plate, Tuning
51Seal, Air Duct
52Seal, Foam
