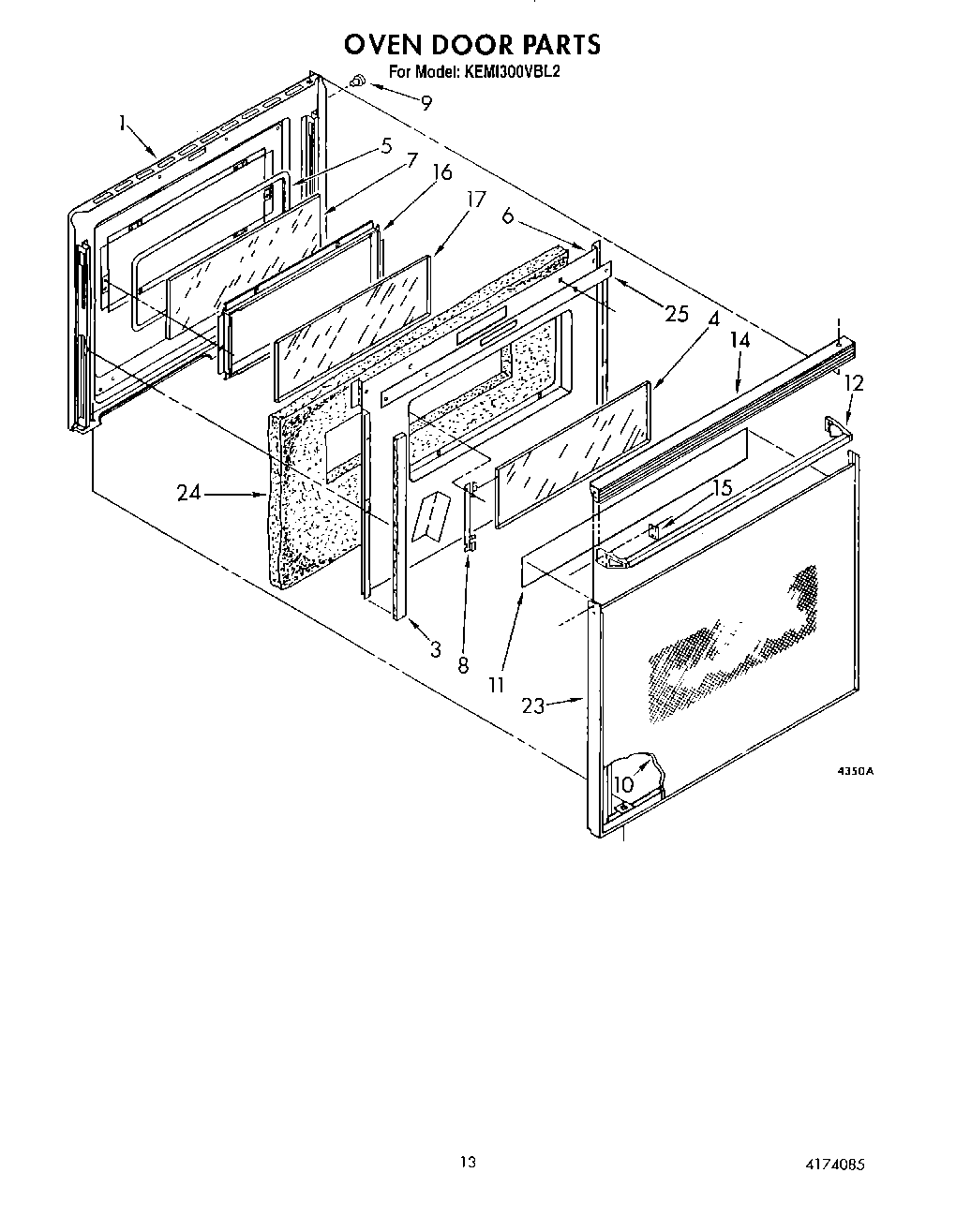

KEMI300VBL2 08 – OVEN DOOR

Products

Position	Product
1	Liner, Door
3	Seal, Flange (2)
4	Glass, Reflective
5	Seal, Door
6	Retainer,
8	Retainer, Glass (2)
9	Bumper (4)
10	Glass, Panel (Black Model)
11	Screw
11	Foil, Door
12	Back Splash (Screw (4) 10AB x 1/2“)
12	Handle, Oven Door
14	Top, Door Frame
15	WP355515 Whirlpool Screw
15	Clip (2)
16	Screw
16	Frame, Inner
17	WP3169203 Whirlpool Door Glass
23	Frame, Door
24	Insulation, Door
25	Sheild, Door
25	Screw,
