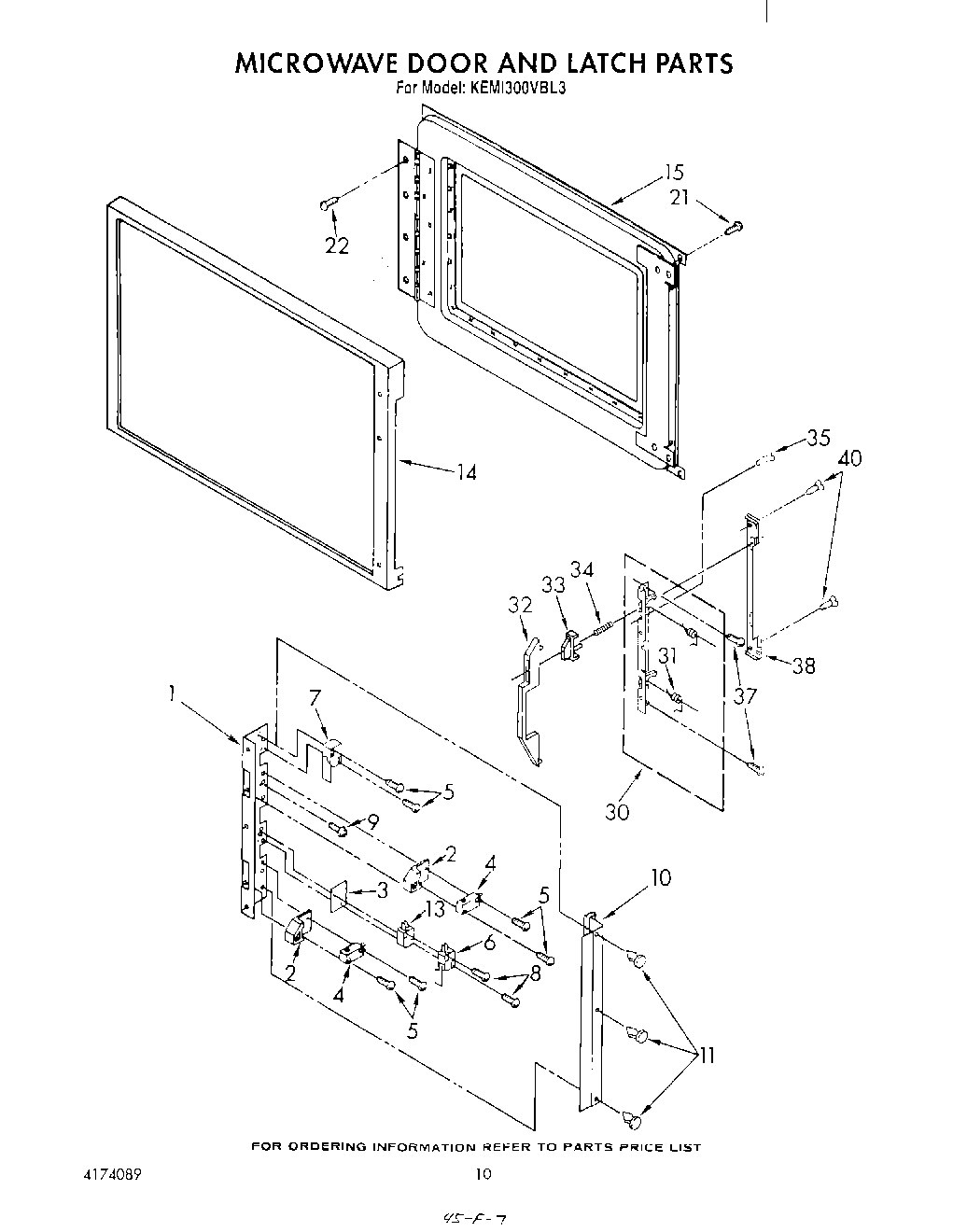

KEMI300VBL3 06 – MICROWAVE DOOR AND LATCH

Products

Position	Product
1	Bracket, Catch
1	screw
2	Catch (2)
3	Insulator
4	814037 Whirlpool Microwave Switch
5	WPL 312717
6	Switch, Light/ Monitor
7	Switch, Miniature
8	Screw, 4-40 x 10 (2)
9	WPL 309080
10	shield
11	Fastener (4)
13	Switch
14	Frame, Door
15	Door, Inner
22	WPW10068250 Whirlpool Dishwasher Screw
30	Latch Assembly
31	Spring, Torsion (2)
32	Handle, Door
33	313611 Whirlpool Microwave Door Button
34	Rear Top Burner-Lt. or Rt. (Inc`s 64 & 65)
35	303776 Whirlpool Dishwasher Screw
37	Screw (2)
38	End Cap
40	Screw, 8-22 (5)
