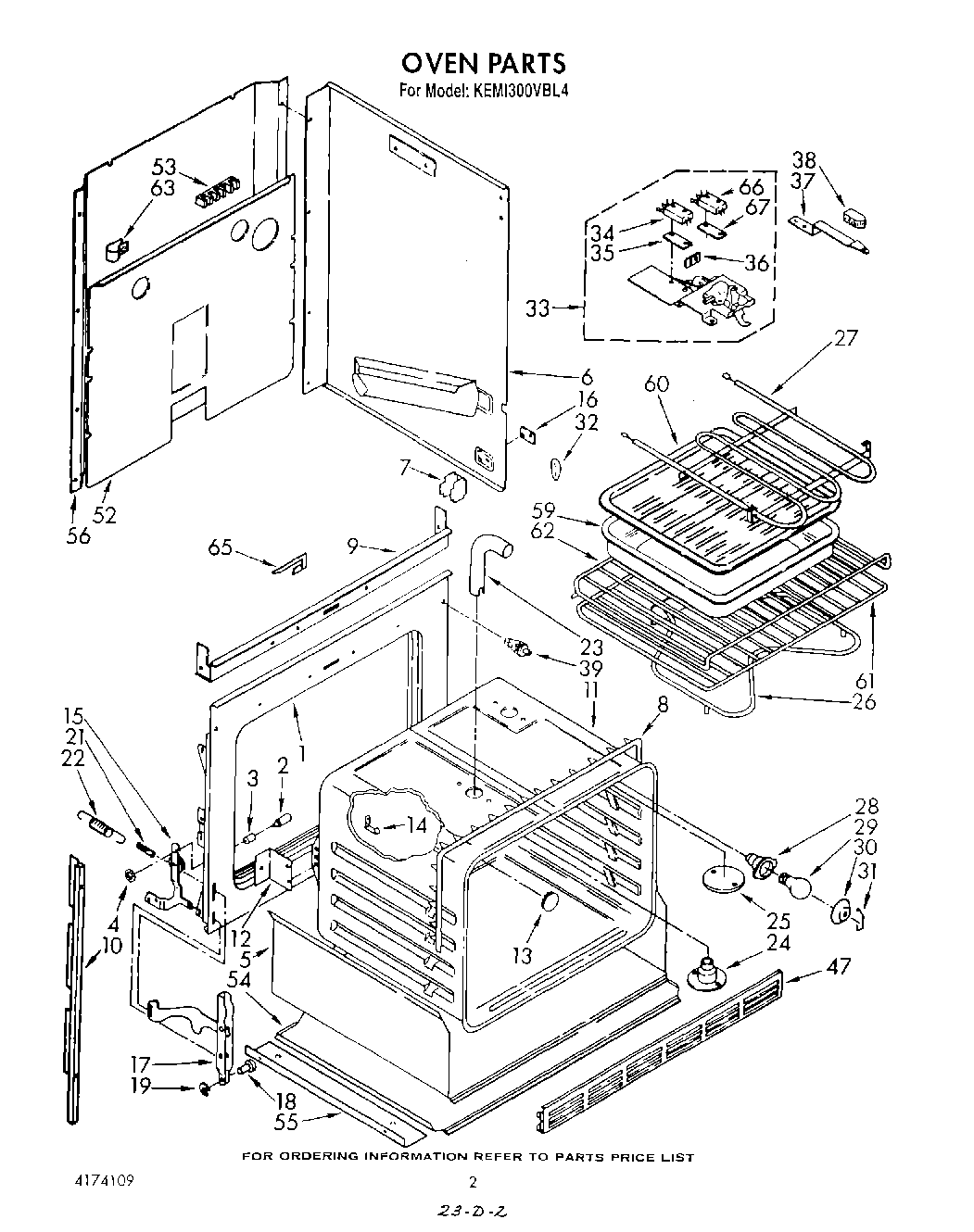

KEMI300VBL4 02 – OVEN , LIT/OPTIONAL

Products

Position	Product
	WPL LIT3147438
	Cookbook
	WPL LIT3147571
	WPL LIT3147577
	WPL LIT3149135
	WPL LIT3147436
	WPL LIT4174109
	WPL LIT3147005
	WPL LIT3147382
1	Frame, Front
2	Pin, Hinge Ear (2)
3	Snubber, Door (2)
4	Pushnut (2)
5	Insulation Tray
6	Side Wrapper (Right Side)
6	Side Wrapper (Left Side)
7	Support, Side Wrapper (4)
8	WP313808 Whirlpool Screw
8	Seal, Door
9	Baffle, Top Insulation
10	Side Trim (Left Side)
10	Side Trim (Right Side)
11	SCREW
11	Oven 30“
12	Bracket, Oven Mounting (2)
13	Plug Button
14	98005642 Whirlpool Clip
15	Hinge Ear, L.H.
15	Hinge Ear, R.H.
16	Plate, Side Panel (2)
16	WP308544 Whirlpool Screw
17	Channel Arm (2)
18	WP307986 Whirlpool Hinge Pin
19	Retainer Ring (2)
21	WP308125 Whirlpool Microwave Range/Cooktop Anchor
22	WP308126 Whirlpool Door Spring
23	Tube, Vent
24	WP90767 Whirlpool Screw
24	Eliminator, Smoke
25	WPL 310662
26	ELMNT-BAKE
27	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
28	Socket, Oven Light
29	RANGE ONLY 40W 120V APPL BULB
30	Cover, Light
31	Retainer, Light
32	WP488729 Whirlpool Refrigerator Door Screw
32	WPL 311982
32	WPL 312318
33	Latch Assembly
33	Screw (3)
34	Screw
34	Safety Switch
35	Insulator, Switch
36	Shield, Latch
36	Screw
37	Screw
37	Latch, Handle
38	Screw, 80 x 5/16
38	Knob, Latch Handle
39	Switch, Door
47	Grill, Bottom
47	Grill, Bottom (Screw (3))
52	Panel, Back (2)
53	Screw (10-12 x .875)
53	WPL 3147001
53	WP8203546 Whirlpool Terminal Block
53	WP112432 Whirlpool Nut Assembly
54	WPL 310458
55	Angle, Support (2)
56	Cover, Rear
60	4396923 Whirlpool Broil Pan Set Gray Porcelain
61	WPL 308173
62	WPL 308172
63	WP308605 Whirlpool Refrigerator Clamp
65	WPL 309080
65	Shield, Air
66	Switch, Lock
67	WPL 310434
67	Screw, 10A x 1/2 (2) (Black)
67	WPL 3149328
67	WPL 3147864
67	WPL 310433
