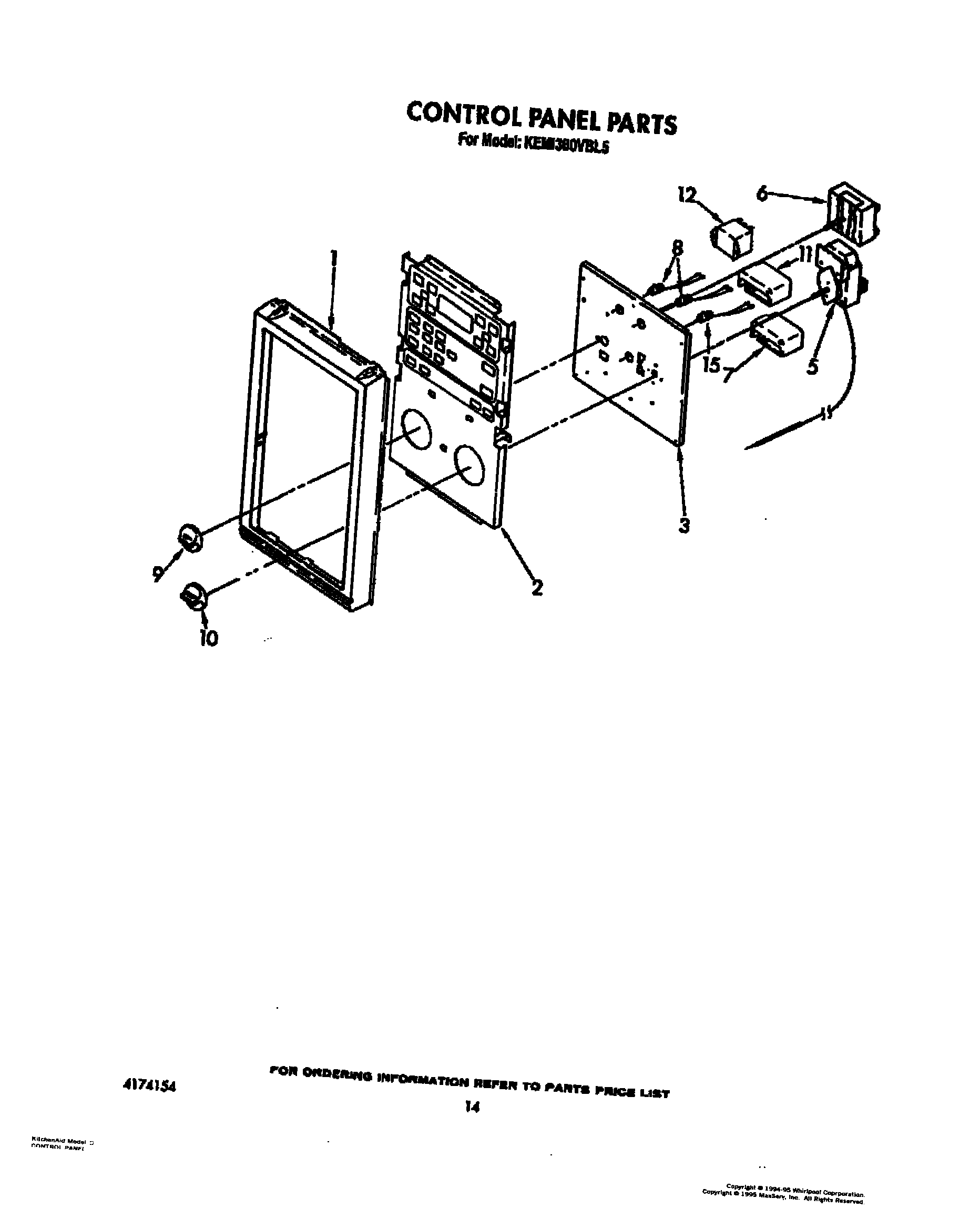

KEMI300VBL5 09 – CONTROL PANEL

Written by

Products

Position	Product
1	Frame, Control Panel
2	Switch Membrane (Control Module)
3	Screw, 8-32 x 3/16 (2)
3	Bracket, Control (Mounting)
5	Thermostat
5	WP313808 Whirlpool Screw
6	Switch, Selector
7	Switch, Bake
7	WPL 314215
8	Light, Indicator (4)
9	Knob, Control
10	WP693995 Whirlpool Screw
10	Knob, Control
11	Sw
11	WPL 312006
12	Relay, Vent (24V, Clear)
12	Screw
15	Screw
15	Light, Indicator
